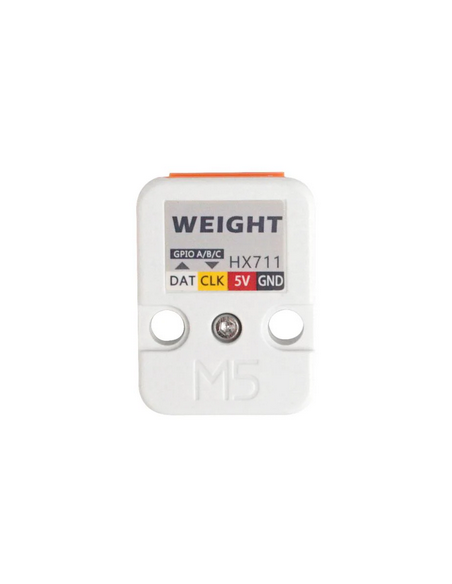

Scale Weight Unit - HX711 M5stack
€6.50
Tax included
Description
Scales Kit is a high precision low-cost weighing kit. This digital Scales kit is consist of four pieces of half-bridge resistive strain gauges, with a total weighing range of 200kgs. It is equipped with a 24-bit A/D converter chip HX711, specially designed for the high precision electronic scale. The built-in low-noise programmable amplifier supports 32/64/128 times gain adjustment. With the help of M5Stack core for programming, you can create IoT based Weighing Scale in just a few minutes!
Product Features
- Total weighing range
- HX711:
- High precision 24bit ADC
- Programmable gain amplification 32, 64 and 128
- 10SPS output data rate
- Half-bridge resistive strain gauge.
- Output sensitivity: 1.0±0.1mV/V
- Non-linearity: 0.3% F.S
- Integrated Accuracy: 0.3%F.S
- Zero output: ±0.3mv/V
- Difference between upper and lower impedance of each strain gauge: 0.8Ω
- Output (in) impedance: 1000±5Ω
- Development platform:
Included

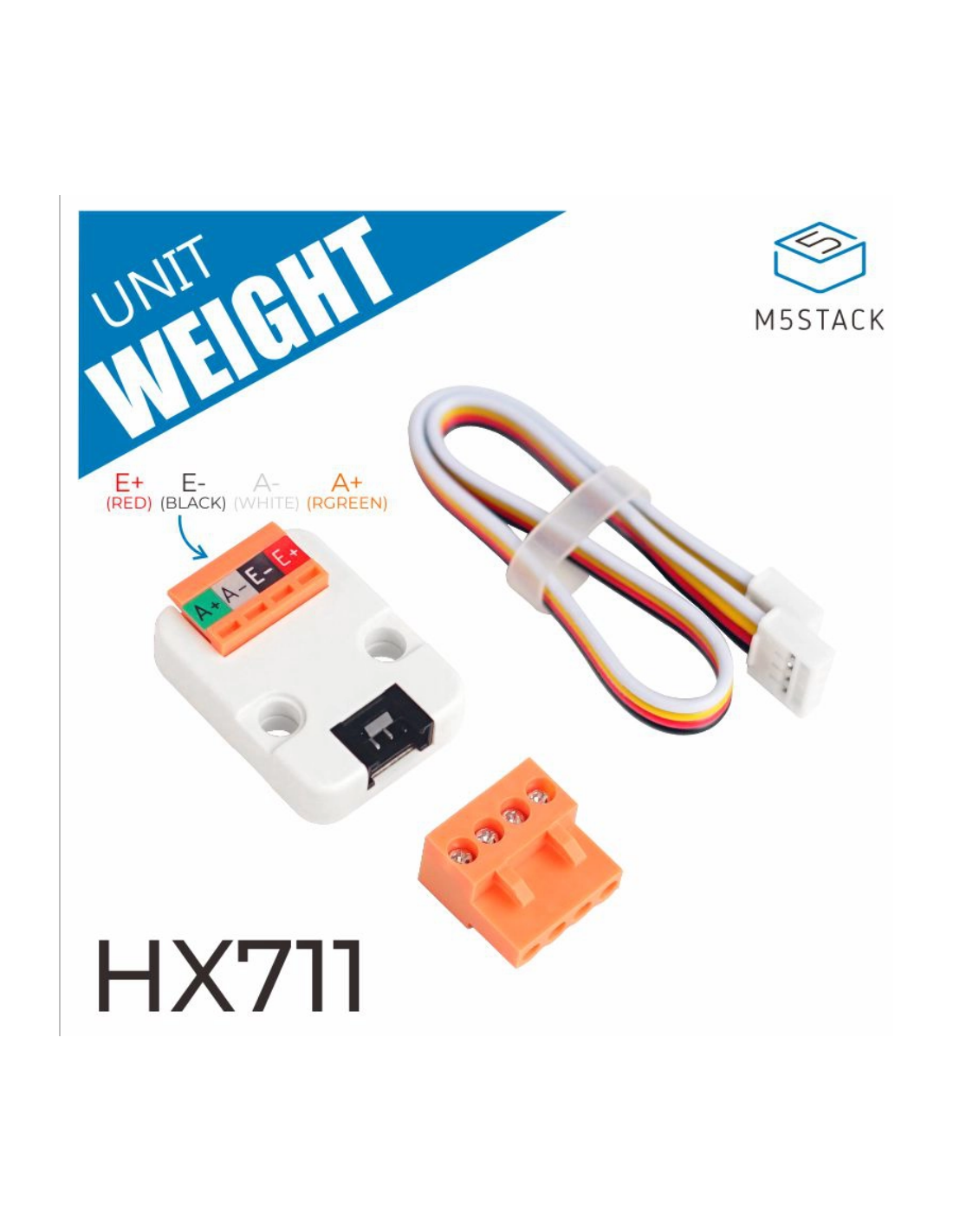

- 1x WEIGHT UNIT
- 1x HY2.0-4P Cable (20cm)
Application
- Electronic weighing
Installation Diagram
ECRM5SSHX711M
