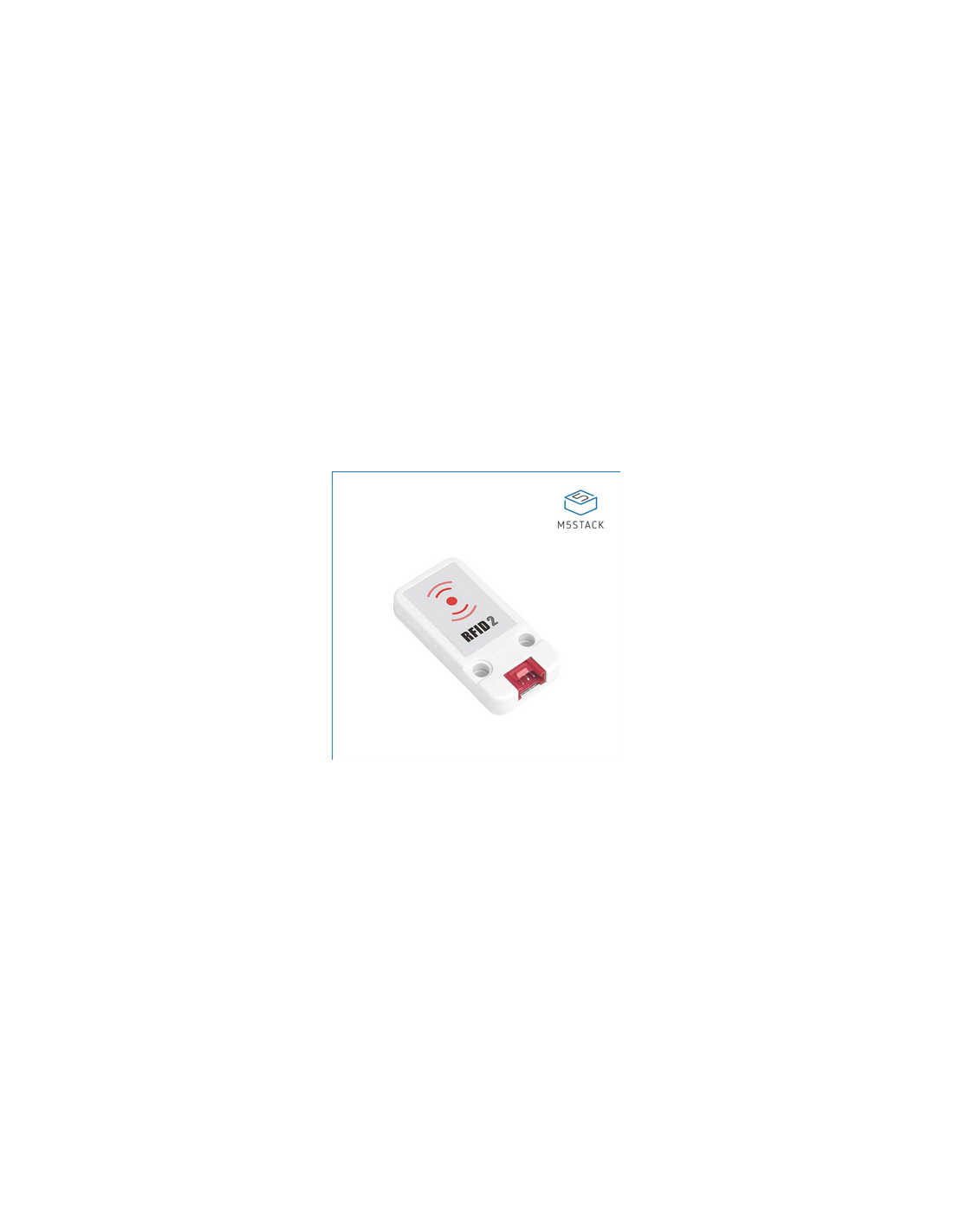

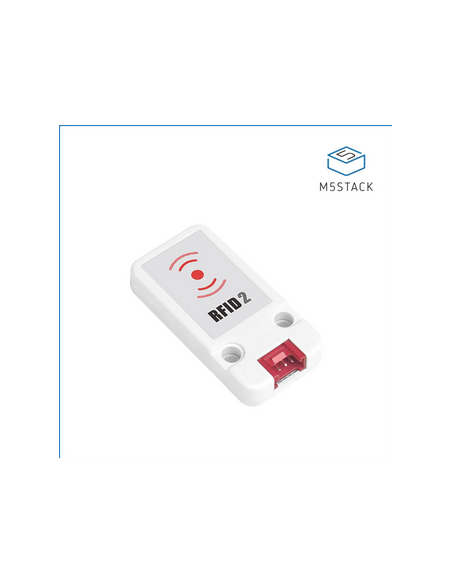

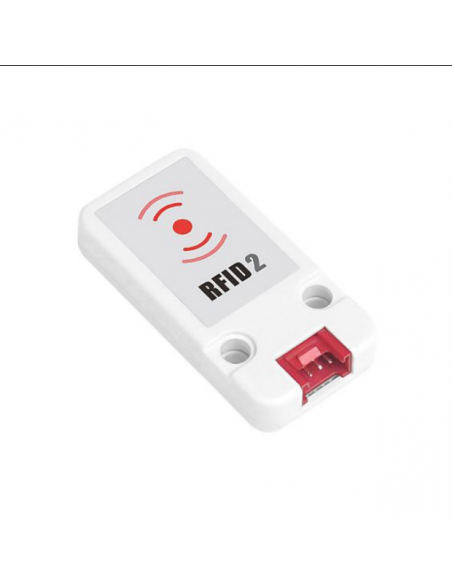

M5stack Module RFID2 WS1850S 13.56MHz 13.56MHz GROVE
SENM5SRFID2
€6.67
Description
RFID2 is a radio frequency identification unit. Built-in WS1850S chip, working frequency is 13.56MHz. Supports reading card
, writing card
, recognition
, recording
, and encoding RF card Multiple functions such as authorization and authorization. Use magnetic field induction technology to realize non-contact two-way information interaction, read and verify the information of proximity cards. It can be used in access control systems, check-in systems, warehouse goods entry and storage, and community vehicle entry and exit registration needs Application scenarios for information verification.
Product Features
- Operating frequency: 13.56 MHz
- I2C data rate: Fast mode: up to 400 Kbit/s; High-speed mode: up to 3400 Kbit/s
- Transceiver buffer: 64 bytes
- Supported protocols: ISO14443A, MIFARE and NTAG
- Working temperature: -20℃-85℃
- Data storage:> 10 years
- Reading distance: <20 mm
- Development platform: Arduino, UIFlow(Blockly, Python)
- 2x LEGO compatible holes
Include
- 1x RFID Unit
- 1x HY2.0-4P cable
Applications
- Smart home access control system
- Vehicle management
- Smart transportation
- Smart bookshelf
Specifications
Resources | Parameter |
---|---|
Read and Write IC | WS1850S |
Operating frequency | 13.56MHz |
Communication protocol | I2C: 0x28 |
Support protocol | ISO/IEC 14443 Type A/Type B protocol |
Net weight | 6g |
Gross weight | 21g |
Product size | 48 * 24 * 8mm |
Packing size | 67 * 53 * 12mm |
