Module Pi Energy INPUT 6-36V OUT 5.1V Mini pour Raspberry Pi 4/5 Series

€15.50
Tax included

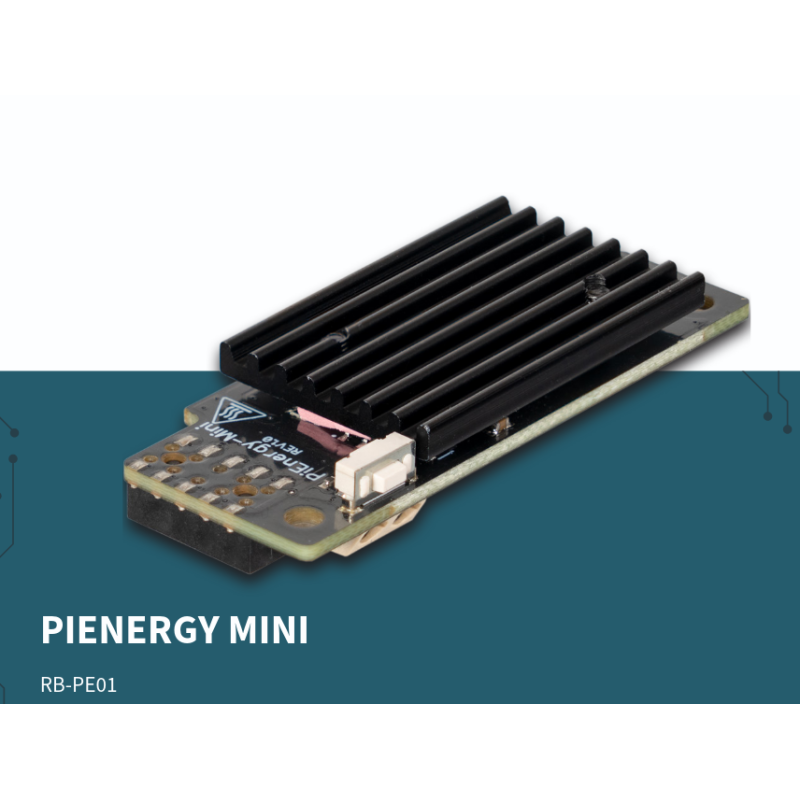

With the PiEnergy-Mini, you can operate your Raspberry Pi with a voltage of 6 to 36 V DC. You can use the button integrated on the board to both power up and power down your Raspberry Pi.

Communication with the Raspberry Pi is via GPIO4, but this connection can also be cut by removing a resistor to use the pin freely. Thanks to the ultra-flat design, it can also be used in many housings. The pin header is included and not soldered on to keep the design even flatter.

Quantity
en stock

CARACTÉRISTIQUES PRINCIPALES

Modèle PiEnergy-Mini

Dossier spécial Design ultra-plat, bouton

intégré pour la mise sous

tension et l'arrêt du Rasp-

berry Pi

Compatible avec Raspberry Pi 3, 4, 5

SPÉCIFICATIONS TECHNIQUES

Tension d'entrée 6 à 36 V DC

Tension de sortie 5,1 V

Courant de sortie Jusqu'à 3 A (une ventilation

active est recommandée

pour les charges

connectées supplémen-

taires)

Section de câble à l'entrée

de tension 0.2 - 0.75 mm²

Interface avec le Raspberry

Pi

GPIO4

Microcontrôleur ATTINY5

Autres connexions Connecteur de ventilateur

5V (2 broches / 2,54 mm)

Pads de soudure pour inter-

rupteur marche/arrêt exter-

ne

PLUS D'INFORMATIONS

Dimensions 23 x 56 x 11 mm

Poids 15 g

Articles livrés Carte avec dissipateur ther-

mique monté, en-tête de

broche (2x5), entretoise, vis,

écrou

Article No. RB-PE01

EAN 4250236827421

Numéro du tarif douanier 8473302000

ENERPI01
