XT60H Plug connectors M/F
€1.80
Tax included

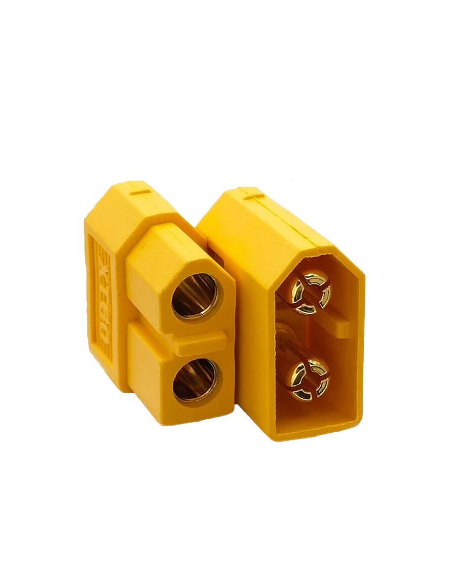

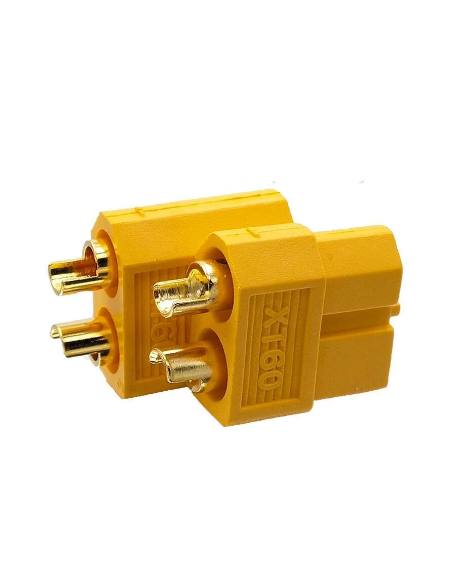

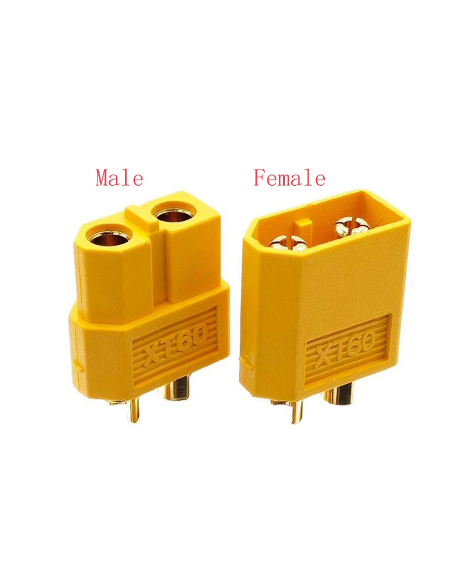

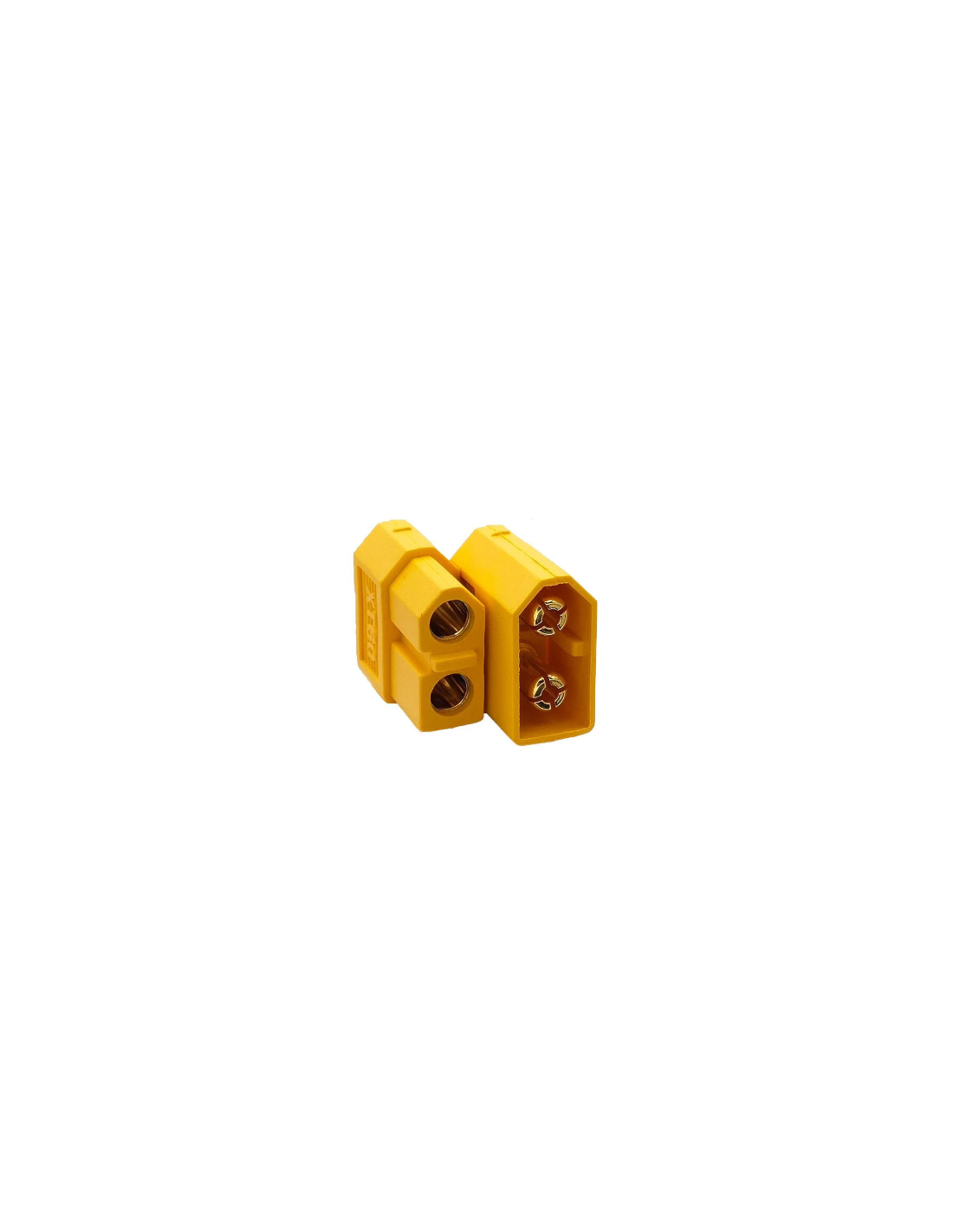

XT60H female cable connector designed for high-current applications up to 60A. Features snap-on insulating end caps for secure installation without heat shrink tubing.
Made with heat-resistant polyamide and gold-plated brass contacts, ideal for LiPo batteries and motors.
XT60H female cable connector designed for high-current applications. This connector improves upon the standard XT60 design with snap-on insulating end caps, allowing for easier installation without heat shrink tubing and providing a more secure grip.
Suitable for LiPo batteries, motors, and projects requiring reliable connections up to 60A. The gold-plated contacts ensure excellent conductivity.
Specifications
| Specification | Value |
|---|---|
| Connector Type | XT60H Female (Plug) |
| Current Rating | 60A (Peak 65A) |
| Max Voltage | 500V |
| Contact Material | Gold-plated Brass |
| Insulator Material | Polyamide (UL94V-0) |
| Temperature Range | -20°C to 120°C |
| Cable Type | 12 AWG |
| Connection Method | Solder |
| Shape | Straight |
| Color | Yellow |
CONXT60HMF
