Lithium Polymer Battery - 2500mAh 3.7V
€18.00
Tax included
This is a light weight, high energy density polymer lithium battery. It outputs a nominal 3.7v at 2500mAh, including built-in protection against over voltage, over current, and minimum voltage. It comes terminated with a standard 2-pin JST connector-2.54 mm spacing between pins. Please do not attempt to charge these with anything but a specialized Lithium Polymer charger.
Features
lipo
lipo
- Excellent long-term self-discharge rates
- Robust power source under extreme conditions (-20 to 60°C)
- CE, Rosh, UN38.3 compliance
Specifications
- Charge voltage: 4.2V
- Nominal Voltage: 3.7V
- Minimum rated capacity: 2500mAh @ 0.2C discharge
- Max. Charge current: 1.25A
- Max. Discharge current: 2.5A
- Cell weight: Approx.50g
- Dimension: 85mm x 50mm x 4.7.mm

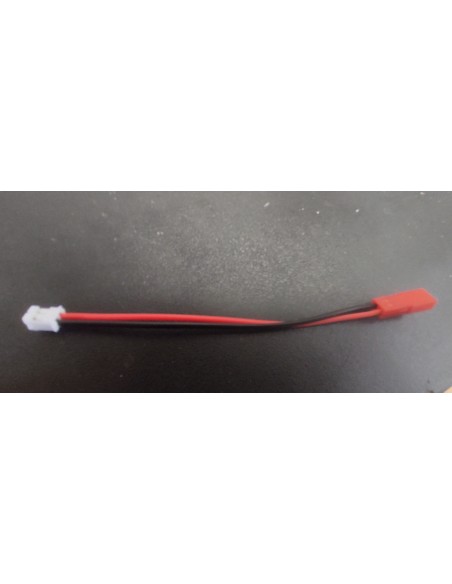

- Connector type: JST SYP-02T/02TV-1 2.54mm connector & socket
- Wire length: 150±3mm (22AWG UL1571)
ENEBATLP475085
