M5STACK Grove U005 - ANGLE Rotary Potentiometer Switch Unit, Linear, 10 kOhm
€4.60
Tax included
M5STACK Grove U005 - ANGLE Rotary Potentiometer Unit, Linear, 10 kOhm

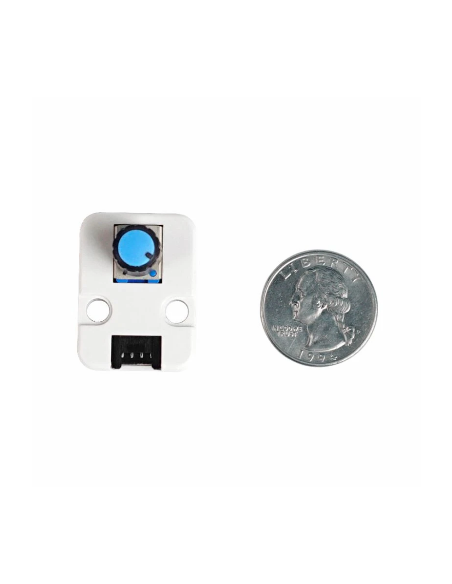

DescriptionANGLE is a rotary switch Unit which simply includes a 10K Ohm potentiometer inside. This unit can be used for continuous signal rotary control for applications such as volume, brightness, or motor speed.

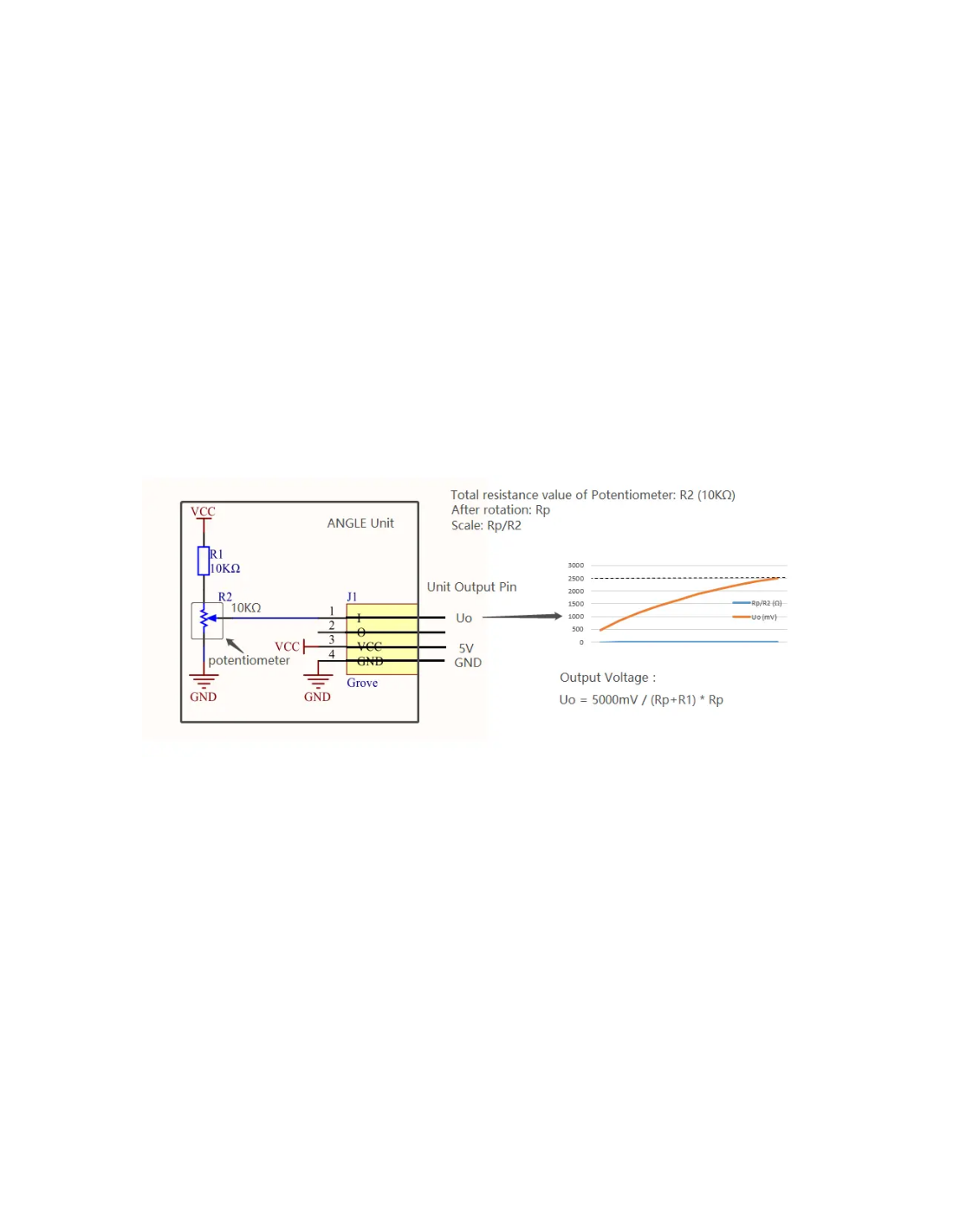

A potentiometer is a manually adjustable variable resistor with three terminals: Two terminals are connected to a resistive element, the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage.
The output voltage is captured and converted by the ADC on the ESP32 on port B.
In the M5Stack product system, the Grove cable color normally indicates the type of communication.
- Black: Single BUS (AD, DA, GPIO)
- Red: I2C
- Blue: UART
- White: Others (depends)
The Unit's Grove interface is black, indicating it is an analog interface that should be connected to the M5Core's GROVE B interface.
Product Features
- Output voltage range: 0 ~ 2500 mV
- GROVE interface, supports UIFlow and Arduino
- Two Lego-compatible holes
What's Included

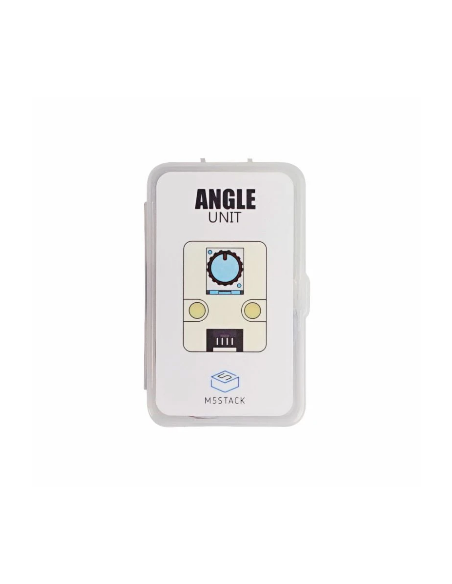

- 1x ANGLE Unit
- 1x Grove Cable
Specifications
| Resources | Parameter |
|---|---|
| Output voltage | 0 ~ 2500 mV |
| Net weight | 6 g |
| Gross weight | 23 g |
| Product Size | 32*24*22 mm |
| Package Size | 73*46*30 mm |
LEARN AND DOCUMENTS
DIY Protractor with M5StickC M5StickC + Angle unit = Protractor (detecting range: 0-180 degrees)
POTM5S10K
1 Item
New
