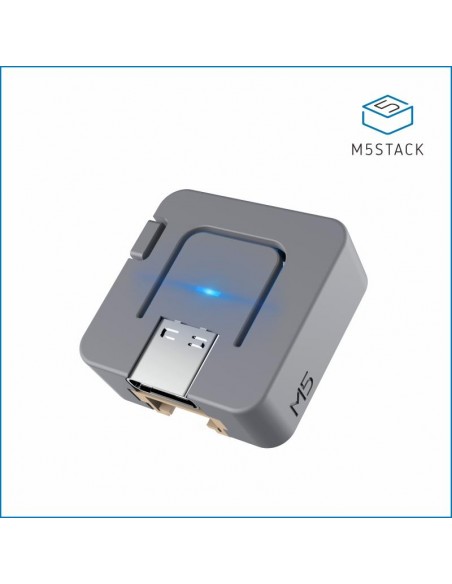

M5Stack ATOM Lite ESP32 Pico Development Kit

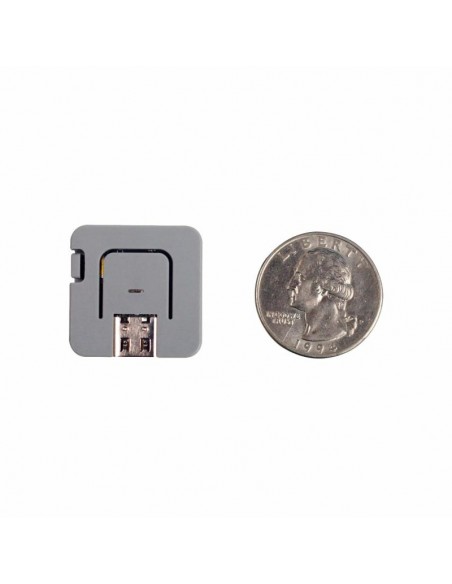

The M5Stack ATOM Lite is a highly compact (24 x 24 mm) IoT development board based on the ESP32-PICO-D4 system-on-chip. It features a dual-core processor running at 240 MHz, 520 KB of SRAM, and 4 MB of SPI flash memory. The board includes an integrated 3D antenna for robust 2.4 GHz Wi-Fi connectivity.

Designed for rapid prototyping and embedded projects, the ATOM Lite offers accessible GPIO pins via female HY2.0 connectors (2.54mm pitch) and a Grove interface (I2C/I/O/UART). It also features an onboard USB Type-C port for power and programming, alongside a programmable SK6812 RGB LED, a customizable button, and an IR transmitter.

Specifications

• SoC: ESP32-PICO-D4 (Dual-core, 240 MHz, 600 DMIPS)
• Memory: 520 KB SRAM, 4 MB SPI Flash
• Connectivity: Wi-Fi 802.11 b/g/n 2.4 GHz (Integrated 3D Antenna)
• Interfaces: 1x USB Type-C, 1x Grove (I2C+I/O+UART), 6 GPIOs (G19, G21, G22, G23, G25, G33)
• LEDs: 1x SK6812 RGB LED, 1x IR Transmitter
• Power Supply: 5V / 500 mA via USB-C
• Dimensions: 24.0 x 24.0 x 9.5 mm
• Weight: 5.5 g
• Case Material: PC + ABS Plastic
