M5Stack Cardputer Kit w/ M5StampS3 K132
€43.00
Tax included

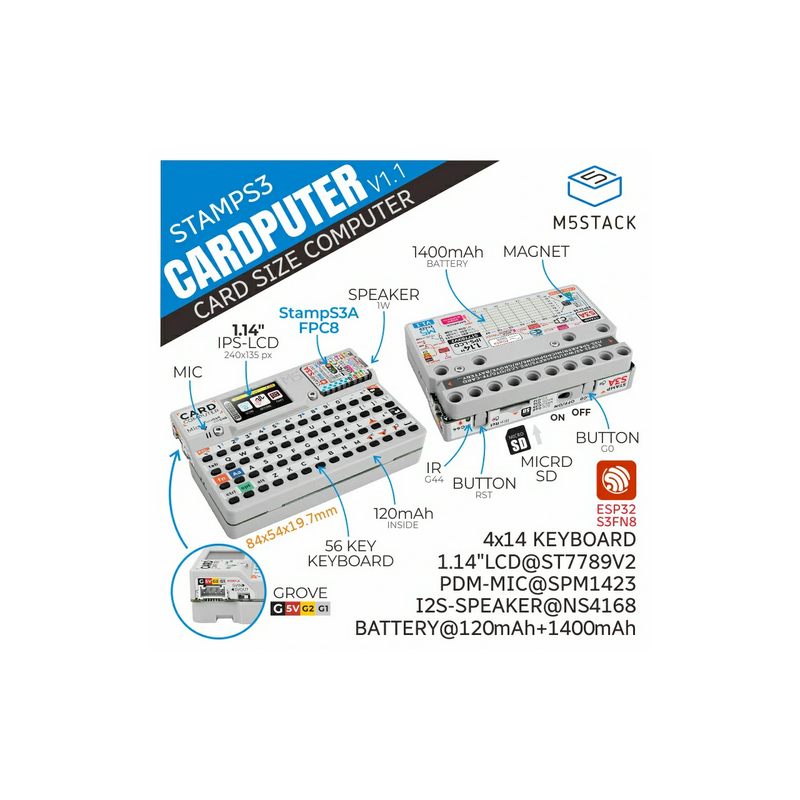

Cardputer v1.1 is a high-performance card computer designed for engineers, offering a comprehensive upgrade over the original Cardputer. The new version features the brand new StampS3A main controller, with optimized antenna and button design for the core module, significantly enhancing system stability and user experience. In terms of control interaction, the product is equipped with a 56-key keyboard and a 1.14-inch TFT screen for efficient display and operation; it includes an onboard SPM1423 digital MEMS microphone supporting recording and wake-up functions, and outputs audio through a cavity speaker. Additionally, an infrared emitter provides external infrared control interaction capabilities.
We recommend using a SD card model SDSQUNC-016G-ZN6MA
Features
- M5StampS3 Microcontroller.
- 56 key keyboard.
- 1.14 Inch TFT Screen.
- Cavity speaker and SPM1423 digital MEMS microphone.
- Infrared emission tube is used for infrared control interaction.
- HY2.0-4P port for connecting and expanding I2C sensors.
- Micro SD card slot for expanding storage space.
- The built-in 120mAh and 1400mAh lithium battery in the base provide long battery life.
- Base with magnet, compatible with Lego hole expansion.
Includes
- 1x Cardputer
- 1x M2 Hex Key
Applications
- Fast functional verification and prototyping
- Industrial control and automation
- Home Control System
- Data acquisition and sensor monitoring
- Embedded system development and learning
- Wireless communication and Internet of Things (IoT) projects
EasyLoader
- Windows
Specification
| Resources | Parameters |
|---|---|
| StampS3 | ESP32-S3@Xtensa LX7 ,8M-FLASHWIFI,OTG\CDC Function |
| Battery Capacity | 120mAh+1400mAh |
| Screen | ST7789V2@1.14 Inch、240*135px |
| Infrared emission distance | Infrared emission distance (linear distance) of ∠0° : 410cm Infrared emission distance of < 90° : 66cm Infrared emission distance of < 45° : 170cm |
| Standby current | DC4.2V/0.26uA |
| Operating current | IR emission mode :DC4.2V/ 255.6mA Key mode :DC4.2V/165.7mA |
| Speaker | 8Ω@1W |
| Product Size | 84*54*19.7Smm |
| Package Size | 149*94*18mm |
| Product Weight | 92.8g |
| Package Weight | 114g |
ESPM5STAMPS3CP
