Fingerprint 2 Unit (A-K323CP) SKU: U203
€18.00
Tax included

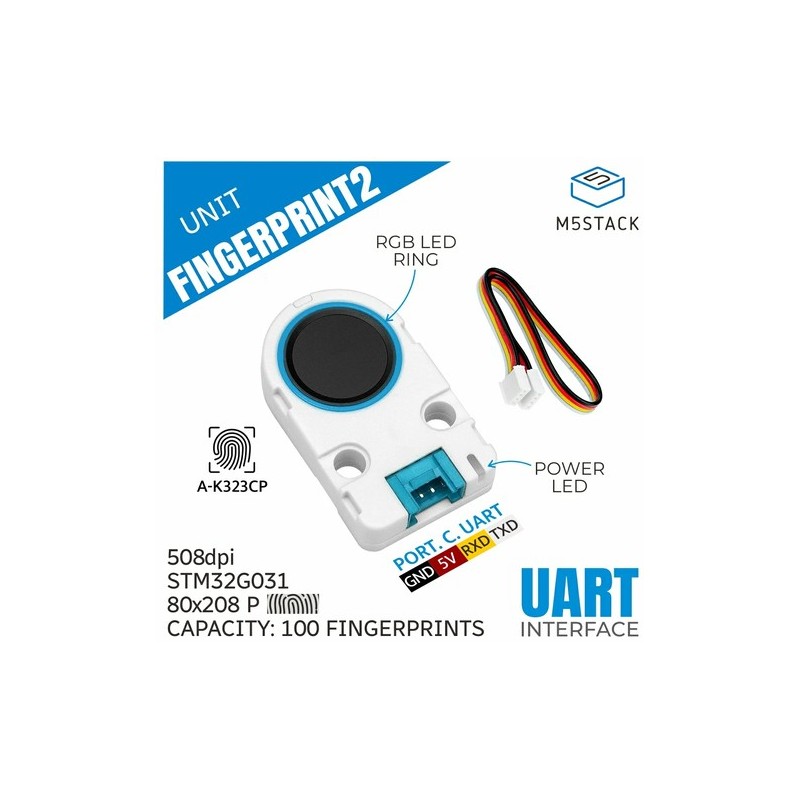

The Unit Fingerprint2 is a high-performance fingerprint recognition sensor unit, internally integrating an STM32 core controller and an A-K323CP all-in-one fingerprint recognition module. It uses a semiconductor capacitive sensor with functions such as fingerprint acquisition, feature extraction, registration, comparison, storage, and retrieval. The module has a built-in fingerprint recognition algorithm capable of adapting to both dry and wet fingers. It offers flexible fingerprint data management, high data security, and fast search and positioning functions. This unit adopts a UART communication interface for easy integration with various main control platforms and includes a multicolor LED ring and power indicator for interactive status prom
Features
- Integrated STM32 core controller
- High-resolution capacitive fingerprint sensor with high-accuracy recognition capability
- Fingerprint capacity of 100 entries
- Adaptive processing for both dry and wet fingers
- Fingerprint management, precise matching, and search functions
- Built-in RGB LED ring supporting seven colors for (working status) indication
- Development Platform
- UiFlow2
- Arduino IDE
- PlatformIO
Includes
- 1 x Unit Fingerprint2
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- Smart door locks
- Access control attendance
- Identity authentication
- Financial payment
- Small security systems
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32G031G8U6 |
| Fingerprint Module | A-K323CP |
| Fingerprint Resolution | 508 dpi |
| Image Pixel | 80 * 208 |
| Image Acquisition Size | 8230 Bytes (80 * 208 / 2 = 8320, 4 bits per pixel) |
| Fingerprint Capacity | 100 entries |
| Fingerprint Data Size | 7262 Bytes / entry |
| Communication Method | UART 115200bps @ 8N1 |
| Power Consumption | Working mode: Breathing light ON 40mA; Breathing light OFF 37.25mA Sleep mode: 14.11mA |
| Product Size | 24.0 x 62.0 x 8.0mm |
| Product Weight | 6.1g |
| Package Size | 138.0 x 93.0 x 11.0mm |
| Gross Weight | 11.6g |
