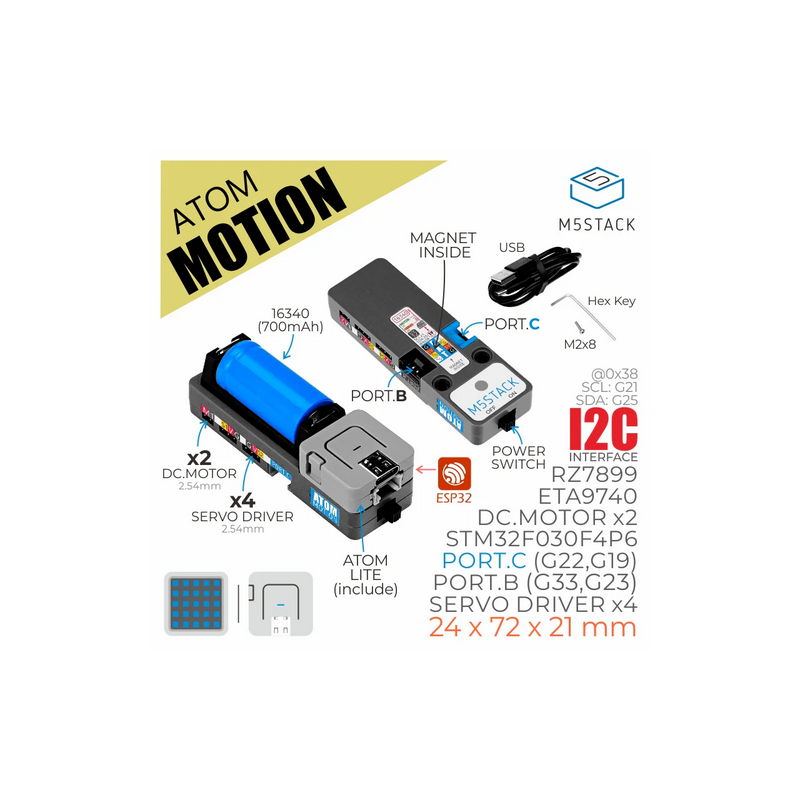

M5Stack ATOMIC Motion Kit with Motor and Servo Driver (STM32F0)
€29.90
Tax included
ATOM Motion is a steering gear and DC motor drive base specifically designed for the ATOM device series. It features an integrated STM32 control chip and utilizes I2C communication control mode, which is well-suited for device communication within the ATOM ecosystem.
The base includes a 4-channel steering gear interface, allowing for the control of up to four steering gears. It also offers a 2-channel DC motor interface, enabling the control of two DC motors. This flexibility makes it suitable for various multi-steering gear and motor control scenarios.
-
To power the ATOM Motion base, it integrates a 16340 lithium battery with a capacity of 700mAh. This built-in battery ensures convenient and portable operation without the need for external power sources.
The base further provides a two-way HY2.0-4P interface expansion, allowing for additional connectivity and expansion options. This expansion interface enables the connection of external sensors and expansion equipment, enhancing the capabilities of the ATOM Motion base.
Additionally, the base includes four LED output pins, which can be used to connect and control LEDs or other similar devices. These pins offer visual indicators or control options in your projects.Product Features
- 4 channel servo control
- 2 channel DC motor control
- Removable lithium battery
- Magnetic back design
- Independent power switch
- 2 way HY2.0-4P expansion interface
Include
- 1x ATOM Lite
- 1x ATOM Motion
- 1x M2 screw driver
- 1x M2*8 cup head screws
- 1x TYPE-C USB Cable（20cm)
Applications
- DC motor trolley control
- Steering gear arm control
Specification
Specifications Parameters Removable lithium battery Specification: 16340, capacity 700mAh Motor interface PIN spacing 2.54mm Full load steering current 3A Single-channel motor operating peak current 1A Single channel servo working peak current 0.4A Net Weight 40g Gross Weight 77.1g Product size 24 * 72 * 21mm Packing Size 95 * 65 * 25mm LEARN AND DOCUMENTS
- DOCUMENTS
MCBM5STATMOT
