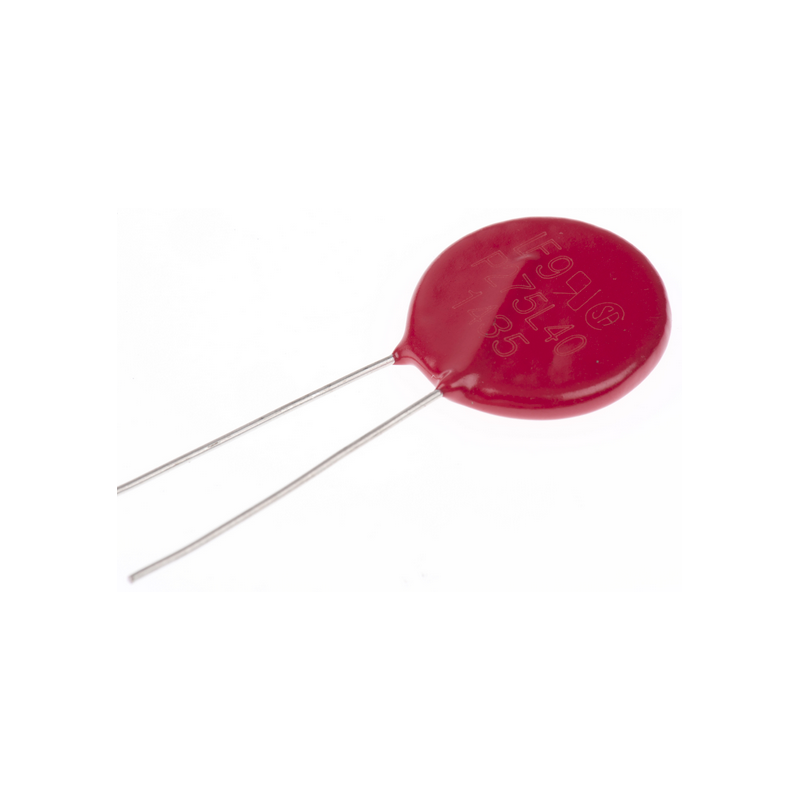

V275LA40AP Ceramic varistor THT 275VAC 369VDC (V 389V to 473V)

The V275LA40AP ceramic varistor is a Metal Oxide Varistor (MOV) surge protection component designed for through-hole (THT) PCB mounting.

This device protects your electronic circuits by shunting voltage spikes to ground. It is particularly suitable for 230V/50Hz mains power applications and for protecting sensitive input/output lines.

Specifications

• Type: Ceramic Varistor (MOV)
• Mounting: Through-hole (THT), radial
• Maximum DC Voltage (VDC): 369 V
• AC Voltage (RMS): 275 V
• Varistor Voltage (Clamping): 389 V to 473 V
• Maximum Impulse Voltage (10/1000 µs): 710 V
• Diameter: 20 mm
• Maximum Surge Current (8/20 µs): 6.5 kA
• Energy Absorption: 140 J
