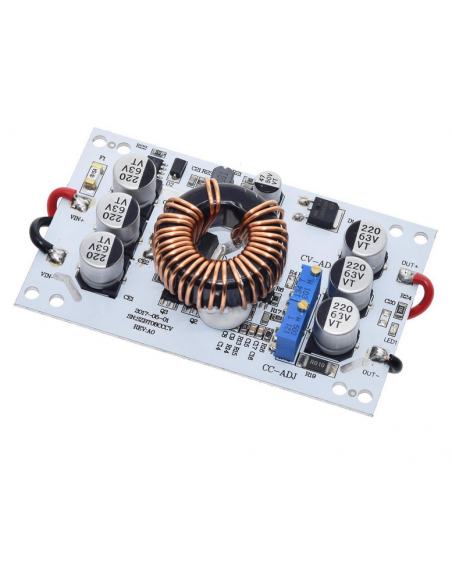

600W Adjustable DC-DC Step-Up Module with LED Display and CC/CV Regulation

This non-isolated DC-DC boost step-up module increases an input voltage of 10-60V to an adjustable output of 12-60V, delivering up to 600W power and 10A current. It features a built-in LED display to monitor input or output voltage, eliminating the need for an external voltmeter.

The module provides precise regulation via two potentiometers: one for voltage (CV-ADJ) and one for constant current (CC-ADJ). It is ideal for powering high-power LED loads, battery charging, or voltage boosting in electronic systems requiring stability. Adequate heat dissipation is recommended for currents above 6A.

Technical Specifications

• Input Voltage: 10V - 60V DC
• Output Voltage: 12V - 60V DC (adjustable)
• Max Output Current: 10A (reduce above 6A for sufficient heat dissipation)
• Max Power: 600W
• Switching Frequency: 150 kHz
• Conversion Efficiency: 92% - 96%
• Operating Temperature: -40°C to +85°C
• Display: LED digital (input/output voltage)

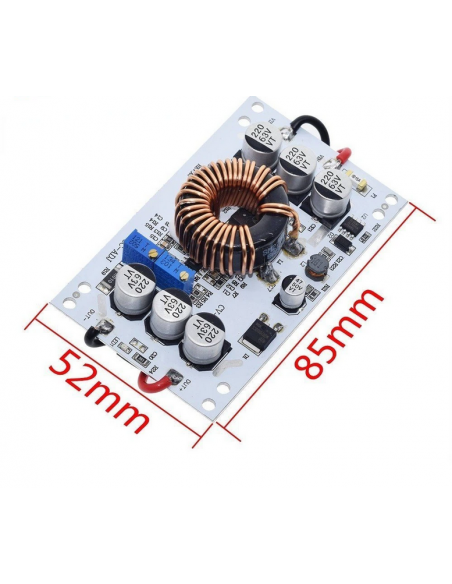

• Dimensions: 85 x 52 x 21 mm
• Weight: 80 g
• Mounting Hole Spacing: 43 mm

Important Note: Do not adjust current by short-circuiting, as this may damage the circuit. Ensure adequate ventilation during high-power usage.
