Mini digital panel ammeter, red display, DC 0 to 10A
€7.90
Tax included
Red Mini Panel Digital Meter DC 0 to 10A. Accuracy ±2%, power supply 4-30V, compact 45x25mm housing for easy integration.
Compact digital panel ammeter designed for monitoring DC current in electronics projects and electrical installations. This instrument provides reliable current measurement on a range of 0 to 10 A, featuring a clear red LED display.

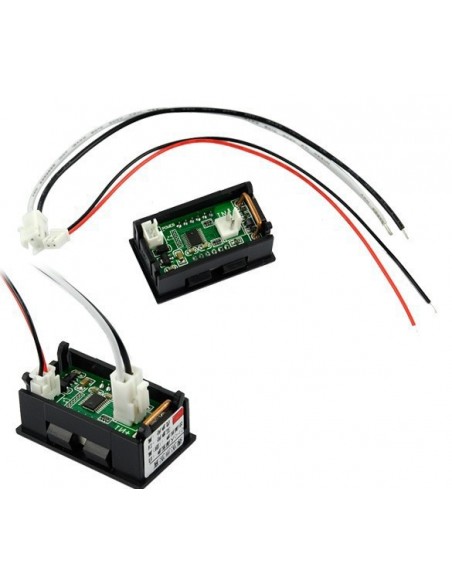

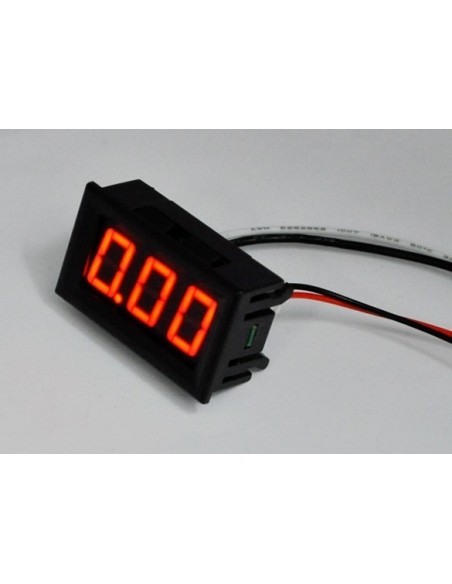

The meter is powered directly through its red (+) and black (-) terminals, accepting an input voltage of 4 to 30 V DC. Simply connect the ammeter in series with your load to measure current consumption. The 0.56-inch three-digit red LED tube ensures legible readings even in low-light conditions.
Specifications
| Specification | Value |
|---|---|
| Measurement Range | 0 to 9.99 A |
| Accuracy | ±(2% + 2 digits) |
| Power Supply | DC 4–30 V |
| Display Type | 0.56" Red LED Digital Tube (3 digits) |
| Refresh Rate | Approx. 500 ms |
| Operating Temperature | -10 °C to +65 °C |
| Panel Cutout Dimensions | 45 × 25 mm |
| Wiring Polarity | Red: + / Black: - |
