• Reduced price

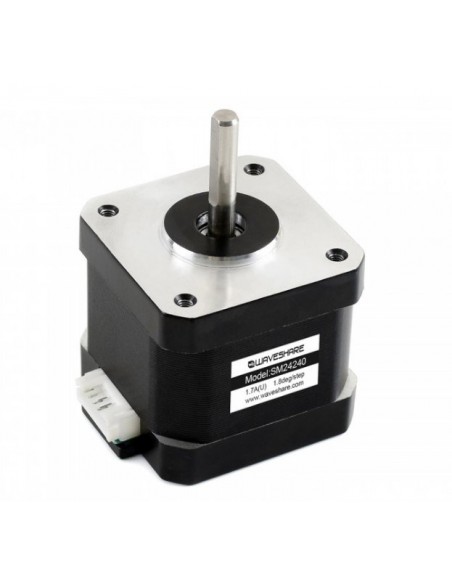

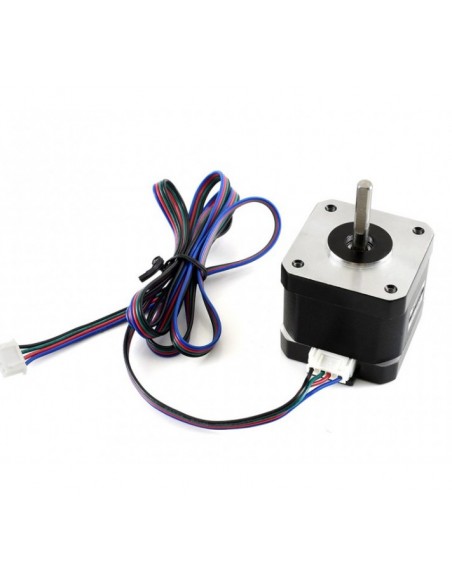

SM24240, Two-Phase Stepper Motor (NEMA 17)

STEWS24240
€11.90 €15.00 -€3.10

This is a simple and bi-polar stepper motor, it is what you need for your Reprap, Makerbot and other 3D Printers or CNC or Laser or Plasma cutter

HackSpark
  1. All our products are shipped from France.
  2. A doubt about a purchase ? Return your items and get money back.
  3. We carefully choose and test the products we sell.

PART NUMBER

PHASESSTEP ANGLE
(DEGREE)		BODY LENGTH
(MM)		RATED CURRENT
(A/PHASE)		PHASE RESISTANCE
(Ω)		PHASE INDUCTANCE
(MH)		HOLDING TORQUE
(N.M)		ROTOR INERTIA
(G.C㎡)		WEIGHT
(KG)		COMPATIBLE DRIVER
SM24240 two-phase 1.8 40 1.7 2.40 3.7 0.45 54 0.3

NEMA 17
