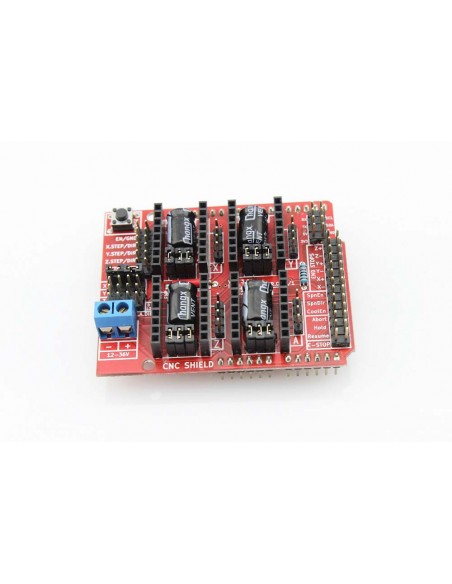

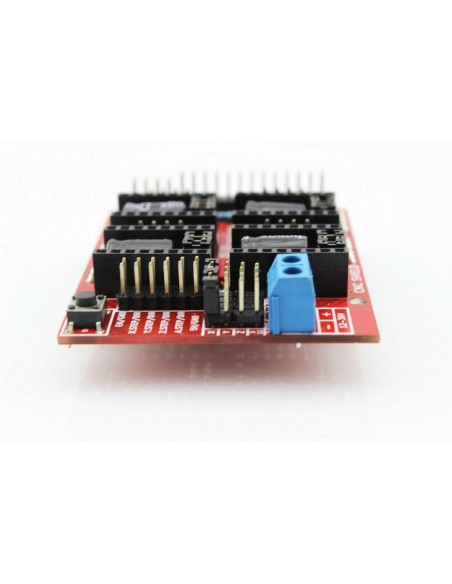

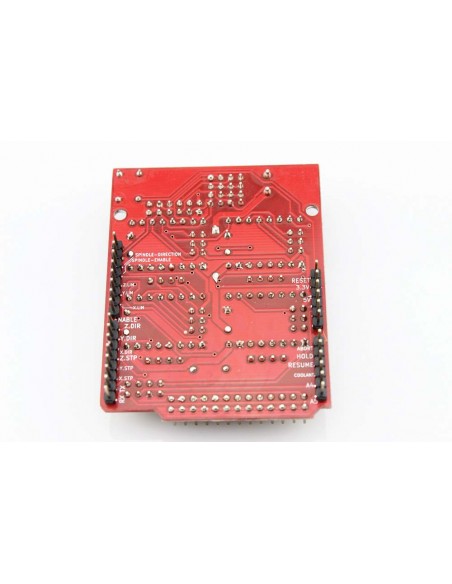

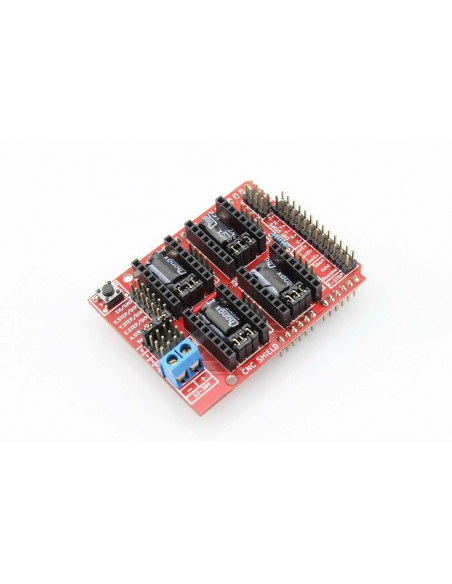

CNC Shield for Arduino (GRBL Arduino Compatible)
The Arduino CNC Shield makes it easy to get your CNC projects up and running in a few hours. It uses opensource firmware on Arduino to control 4 stepper motors using 4x A4988 or DRV8825 with this shield and an Arduino you can build all kinds of robotics or CNC projects including CNC routers, laser cutters and even pick&place machines.
This is the KIT version, you will have to solder the components yourself (hence the very low price :-))
- GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals https://github.com/grbl/grbl)
- 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
- 2 x End stops for each axis (6 in total)
- Spindle enable and direction
- Coolant enable
- Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
- Compact design.
- Stepper Motors can be connected with 4 pin molex connectors.
- Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
