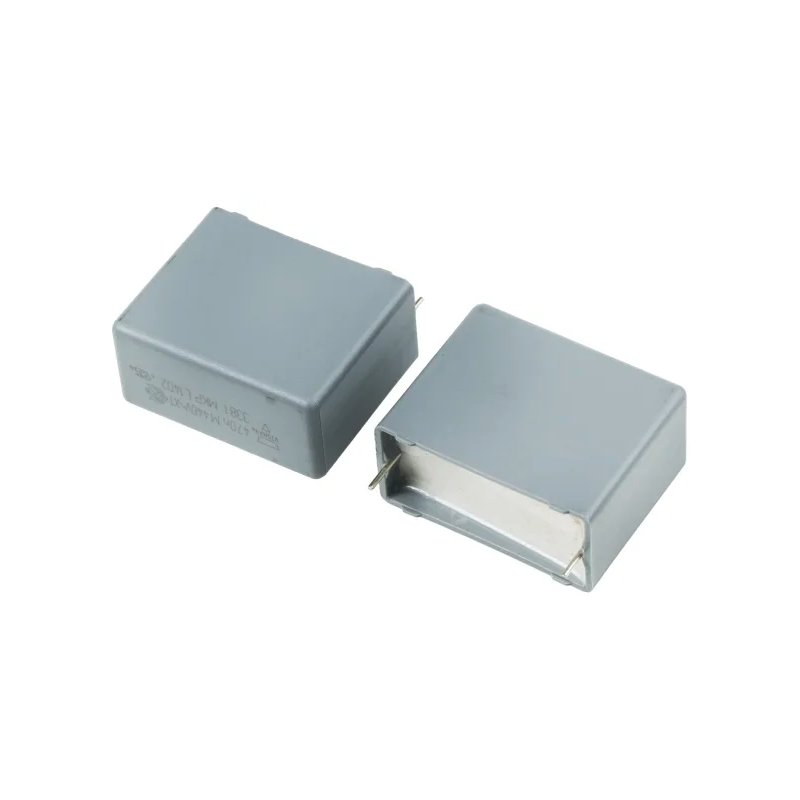

Capacitor 470nF 440V AC ±20% MKP 338 (Capacitor)

The Vishay MKP338 is an X1 class EMI suppression film capacitor designed for "Across the Line" AC applications. Built with a metallized polypropylene (MKP) dielectric, it offers high reliability and self-healing properties, making it suitable for EMI filtering in mains power supplies and sensitive electronic equipment.

This radial component features a rated voltage of 440 V AC and withstands transient surges in compliance with strict safety standards. Its flame-retardant plastic enclosure (UL 94 V-0) and epoxy sealing ensure robust mechanical and environmental protection. The tinned leads with variable pitch facilitate breadboard prototyping or production soldering.

Specifications

• Capacitance: 470 nF (±20%)
• Rated AC Voltage: 440 V (50/60 Hz)
• Maximum DC Voltage: 1000 V
• Safety Class: X1 (Interference Suppression)
• Dielectric: Metallized Polypropylene (MKP)
• Lead Pitch: 15 mm to 27.5 mm (varies by specific part number)
• Max Operating Temperature: 105 °C
• Standards: IEC 60384-14, EN 60384-14, UL 60384-14
• Housing: Flame-retardant plastic UL 94 V-0, epoxy sealed
