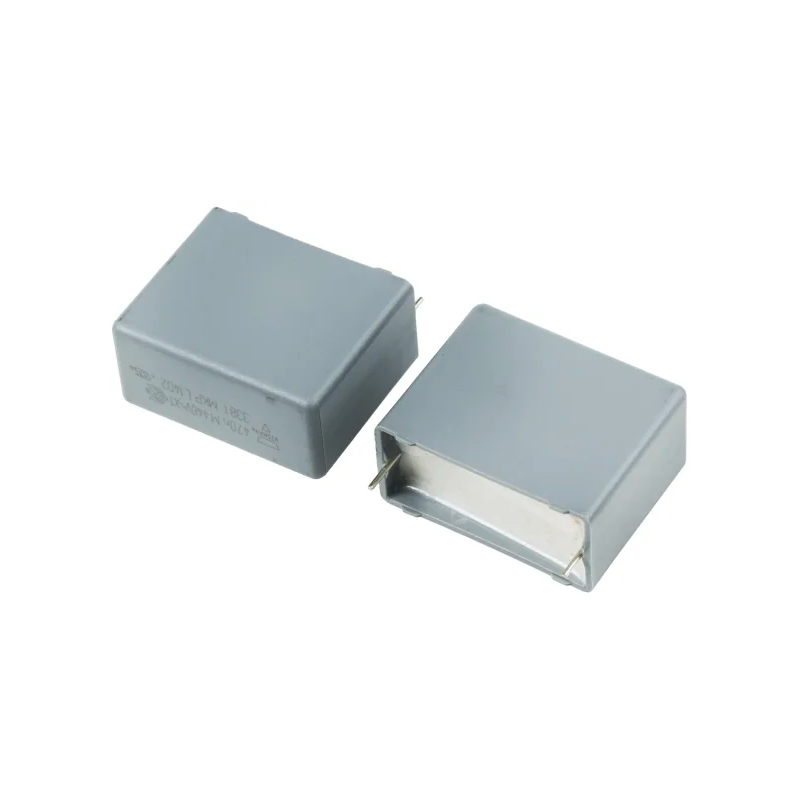

Condensateur MKP 338 470nF 440V c.a. ±20% (Capacitor)
MKP338 1 X1
www.vishay.com Vishay BCcomponents
Revision: 11-Nov-13 1 Document Number: 28116
For technical questions, contact: rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Interference Suppression Film Capacitor - Class X1
Radial MKP 440 V AC - Standard Across the Line
FEATURES
• 15 mm to 27.5 mm lead pitch
• 440 V rated AC voltage
• Material categorization: For definitions of
compliance please see www.vishay.com/doc?99912
APPLICATIONS
For standard across the line X1 applications.
See also application note: www.vishay.com/doc?28153
Note
• For more detailed data and test requirements, contact rfi@vishay.com
QUICK REFERENCE DATA
Capacitance range (E12 series) 0.01 μF to 1 μF
(referred values acc. to E6)
Capacitance tolerance ± 20 %, ± 10 %, ± 5 %
Rated AC voltage 440 VAC; 50 Hz to 60 Hz
Permissible DC voltage 1000 VDC
Climatic testing class acc. to IEC 60068-1 50/105/56/C for product volumes > 1750 mm 3
50/105/56/B for volumes 1750 mm3
Maximum application temperature 105 °C
Reference standards
IEC 60384-14 and EN 60384-14
IEC 60065 pass. flamm. class B for volumes > 1750 mm 3
UL 60384-14
Dielectric Polypropylene film
Electrodes Metallized film
Construction
Mono construction
Encapsulation Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0
Leads Tinned wire
Marking
C-value; tolerance; rated voltage; sub-class; manufacturer’s type;
code for dielectric material; manufacturer location, year and week;
manufacturer’s logo or name; safety approvals
