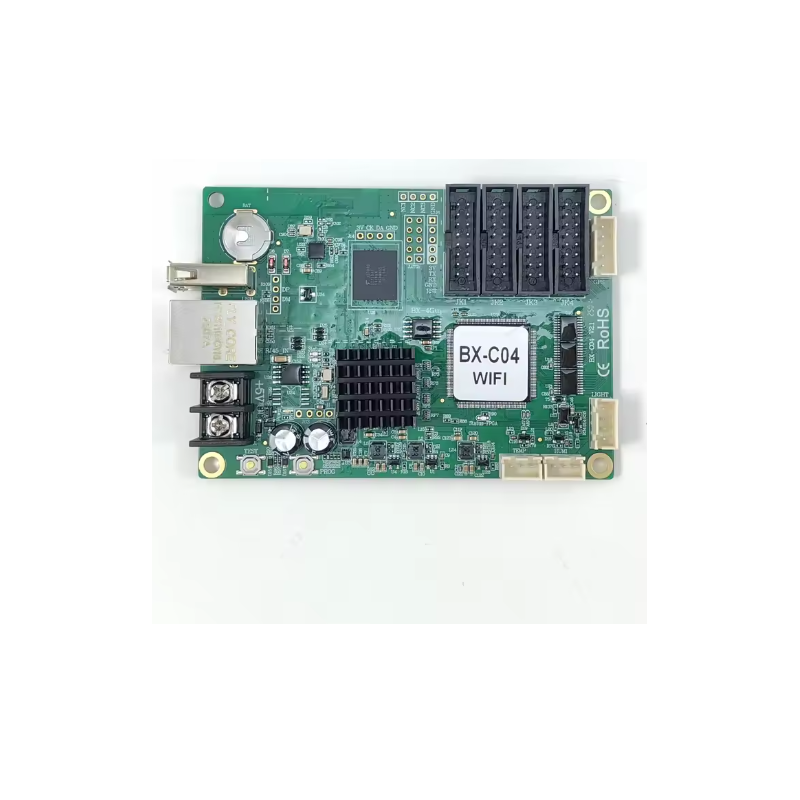

BX-04 Wi-Fi rj45 LED display control, with 4 HUB75E ports, VIDEO
€85.50
Tax included
RGB LED Matrix Panel Driver Board, WIFI SOFT : https://www.onbonbx.com/download/software (bx-04)
Support HUB75 port full color module, support normal and ICN2038 IC
Overview
The BX-C04 controller has a total resolution of ≤64K pixels: 512*128, with a maximum width of 1024 pixels. The controller features 4 groups of 75 interfaces on the board, including a display and a card. It offers a flexible control area and rich display functions, making it suitable for small door-mounted displays and vehicle-mounted screens.
Product Features
• One screen, one map, suitable for small door-mounted and vehicle-mounted displays.
• High-performance CPU, hardware decoding, smooth high-definition video playback.
• Total pixels ≤64K dots: 512*128, width ≤1024, with 4 groups of 75 onboard interfaces.
• Supports 2 video zones;
• It has 4GB of internal storage, supports USB expansion up to 256GB, supports plug-and-play via USB flash drive, and can also import memory for playback. It is ideal for connecting and broadcasting programs in areas with limited internet access.
• Standard features include an independent GPS interface, as well as integrated interfaces for light, temperature, and humidity sensors.
• An optional BX-4GU1/4GU4 wireless module is available.
• Apply a three-level UV adhesive with dual national standard 85 protection, which is dustproof, moisture-proof, antistatic, and dirt-resistant.
• Ambient temperature range: -40℃ to 80℃, wide voltage range: 3.5V to 5.5V, uninterrupted power for 7 x 24 hours, failure rate: ≤ 0.3%.
DISWIFIMBX04
