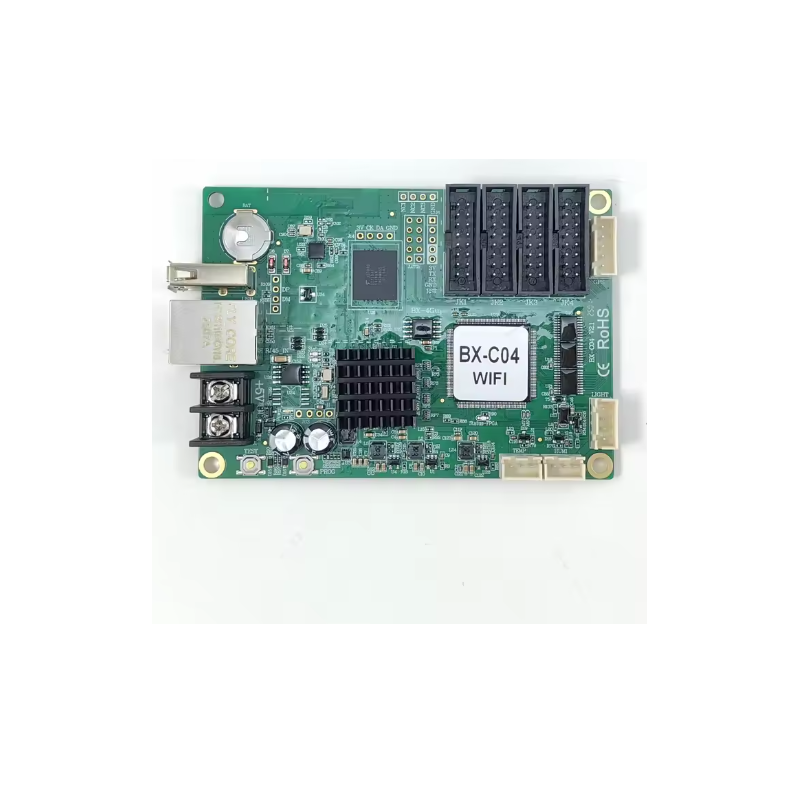

BX-04 Wi-Fi rj45 LED display control, with 4 HUB75E ports, VIDEO matrix
85,50 €
TTC
RGB LED Matrix Panel Driver Board, WIFI SOFT : https://www.onbonbx.com/download/software (bx-04)
Support HUB75 port full color module, support normal and ICN2038 IC
Overview
The BX-C04 controller has a total resolution of ≤64K pixels: 512*128, with a maximum width of 1024 pixels. The controller features 4 groups of 75 interfaces on the board, including a display and a card. It offers a flexible control area and rich display functions, making it suitable for small door-mounted displays and vehicle-mounted screens.
-
Product Features• One screen, one map, suitable for small door-mounted and vehicle-mounted displays.• High-performance CPU, hardware decoding, smooth high-definition video playback.• Total pixels ≤64K dots: 512*128, width ≤1024, with 4 groups of 75 onboard interfaces.• Supports 2 video zones;• It has 4GB of internal storage, supports USB expansion up to 256GB, supports plug-and-play via USB flash drive, and can also import memory for playback. It is ideal for connecting and broadcasting programs in areas with limited internet access.• Standard features include an independent GPS interface, as well as integrated interfaces for light, temperature, and humidity sensors.• An optional BX-4GU1/4GU4 wireless module is available.• Apply a three-level UV adhesive with dual national standard 85 protection, which is dustproof, moisture-proof, antistatic, and dirt-resistant.• Ambient temperature range: -40℃ to 80℃, wide voltage range: 3.5V to 5.5V, uninterrupted power for 7 x 24 hours, failure rate: ≤ 0.3%.
DISWIFIMBX04
