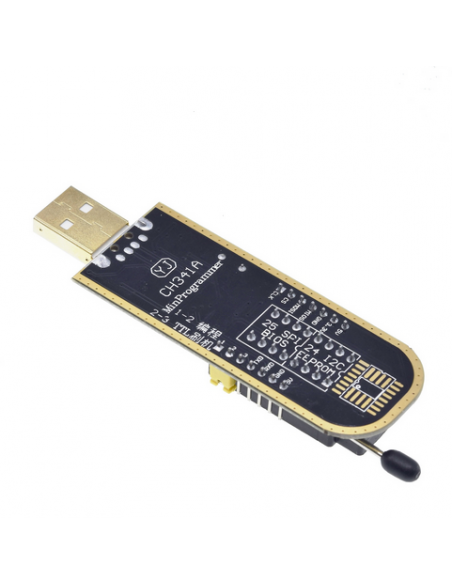

CH341A 24 25 Series EEPROM Flash BIOS USB Programmer

The CH341A programmer is a USB-to-SPI/I2C/Parallel tool designed for programming and troubleshooting EEPROM (24/93 series), BIOS Flash (25 series), and other storage chips. Powered by the CH341A chip, it provides a straightforward interface for communicating with microcontrollers and external memory via a standard USB port.

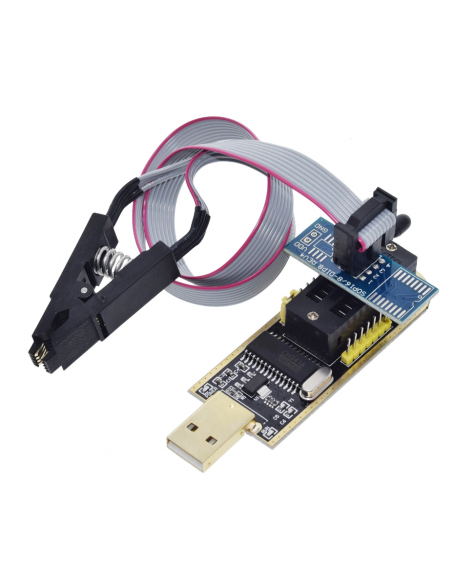

This module is ideal for backing up, copying, and rewriting BIOS firmware, as well as reading/writing EEPROMs in electronics projects or repair work. It comes with test clips (SOIC8/SOP8 clip) allowing you to program chips directly on-circuit without soldering, which helps preserve fragile components.

Specifications

• Controller Chip: CH341A
• Supported Interfaces: SPI, I2C (TWI), UART (TTL), Parallel Port (SPP/EPP/MEM)
• Output Voltages: Selectable 5 V and 3.3 V
• Connectors: Male pins for breadboard or shield mounting
• Indicators: Power LED and status LEDs (read/write)
• Included Accessories: SOIC8/SOP8 test clip for solder-less programming
• Dimensions: Approx. 70 mm x 27 mm

Note: CH341A drivers may be required on Windows. This programmer is not compatible with all proprietary flash chip types; please verify compatibility before purchase.
