ExtPort for Core2, expansion port module, M5Stack
€8.50
Tax included

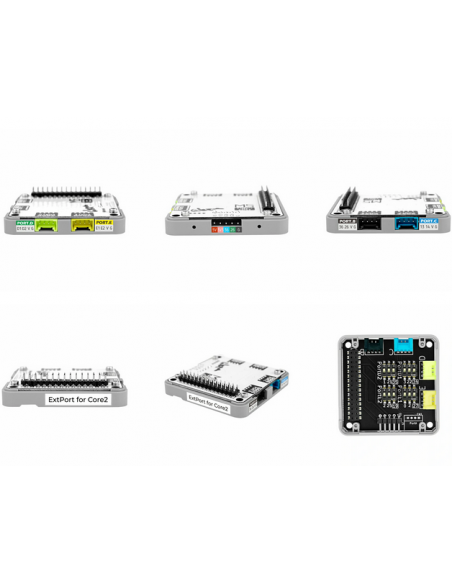

The ExtPort for Core2 is an expansion module for M5Stack Core2 providing four Grove interfaces (Ports B, C, D, and E). Ports D and E are configurable via internal DIP switches.
The ExtPort for Core2 is an expansion module designed for the M5Stack Core2. It allows you to connect up to four Grove sensors or actuators simultaneously by utilizing the available ports on the device.
Installation and configuration:

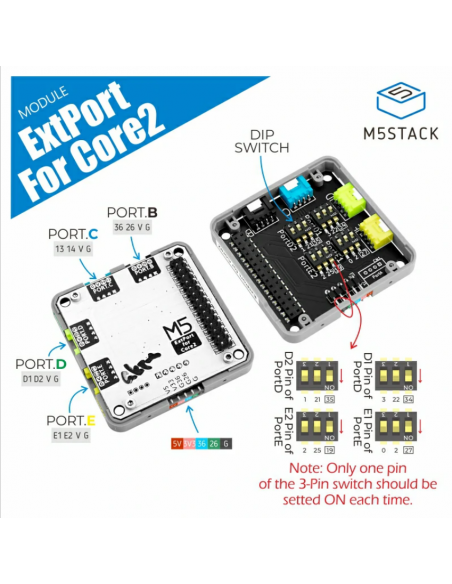

- Before use, set one of the three 3-pin DIP switches to
ON. Do not activate more than one switch at a time to avoid damaging the module. - To use the module with the Core2 bottom board, you must remove the four plastic support feet (M3 format) to prevent mechanical interference.
Features
- 4 Grove interfaces (Ports B, C, D, and E)
- 3 3-pin DIP switches for configuring Ports D/E
- 5-pin header with 2.54mm pitch
Specifications
| Parameter | Value |
|---|---|
| Module Dimensions | 54 x 54 x 13 mm |
| Net Weight | 24 g |
MCBM5PEXP
