NUCLEO-32 L031K6 - with STM32L031K6 MCU - compatible with Arduino Nano
€15.50
Tax included
The Arduino™ Nano V3 connectivity support allows the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-32 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
The NUCLEO-32 L031K6 is an open development platform based on the STM32L031K6 microcontroller in an LQFP32 package. It features native compatibility with Arduino™ Nano V3 shields, allowing you to easily expand your projects using the existing ecosystem of modules and sensors.
This board integrates an ST-LINK/V2-1 debugger/programmer, eliminating the need for external hardware. It supports a wide range of Integrated Development Environments (IDEs) including STM32CubeIDE, Keil™, IAR™, and Arduino IDE, making it easy to start developing and deploying your applications.
Specifications
- Microcontroller: STM32L031K6T6 (ARM Cortex-M0+, 32-bit)
- Operating Voltage: 2.0 V to 3.6 V
- Maximum Frequency: 32 MHz
- Flash Memory: 64 KB
- SRAM: 8 KB

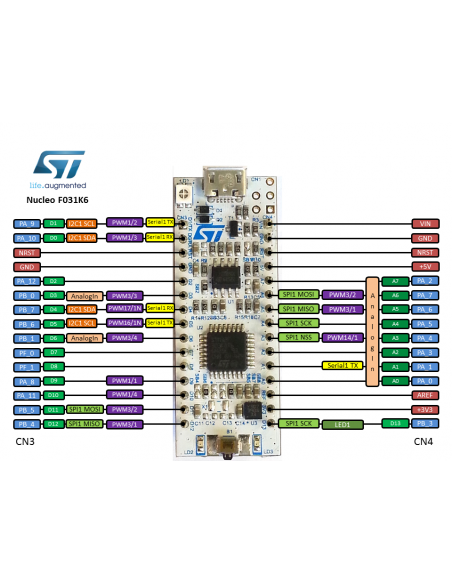

- Expansion Header: Arduino™ Nano V3 compatible connectors (I2C, SPI, UART, ADC, PWM)
- On-board Debugger: ST-LINK/V2-1 (USB re-enumeration: Mass Storage, Virtual COM Port, Debug)
- LEDs: LD1 (USB comm.), LD2 (Power), LD3 (User)
- Button: Reset push-button
- Power Supply: Via ST-LINK USB, VBUS, or external source
