Discovery kit for the ST25DV-PWM NFC/RFID tag IC
€14.40
Tax included

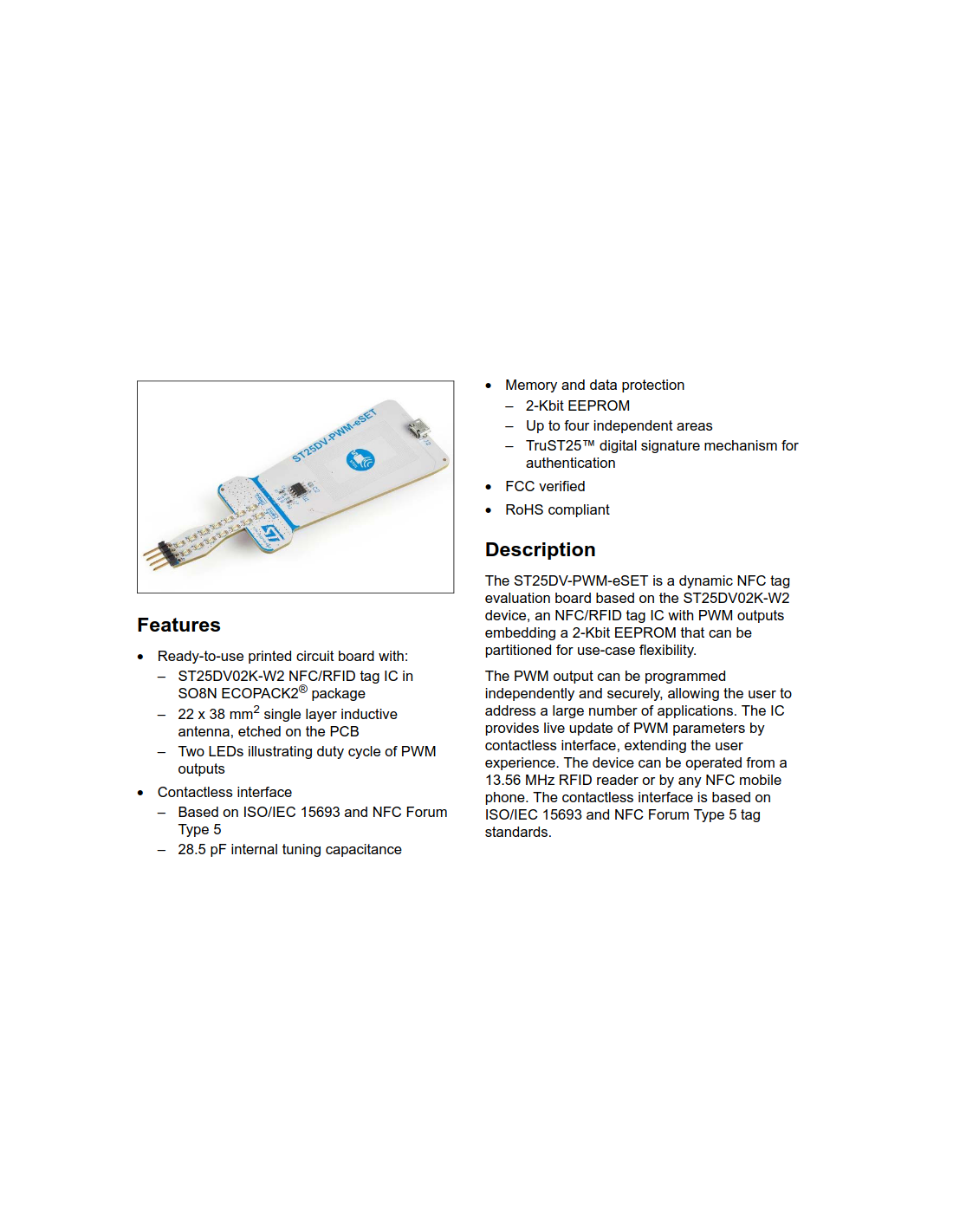

The ST25DV-PWM-eSET is a dynamic NFC tag evaluation board based on the ST25DV02K-W2, an NFC/RFID tag IC with PWM outputs embedding a 2-Kbit EEPROM that can be partitioned for use-case flexibility.

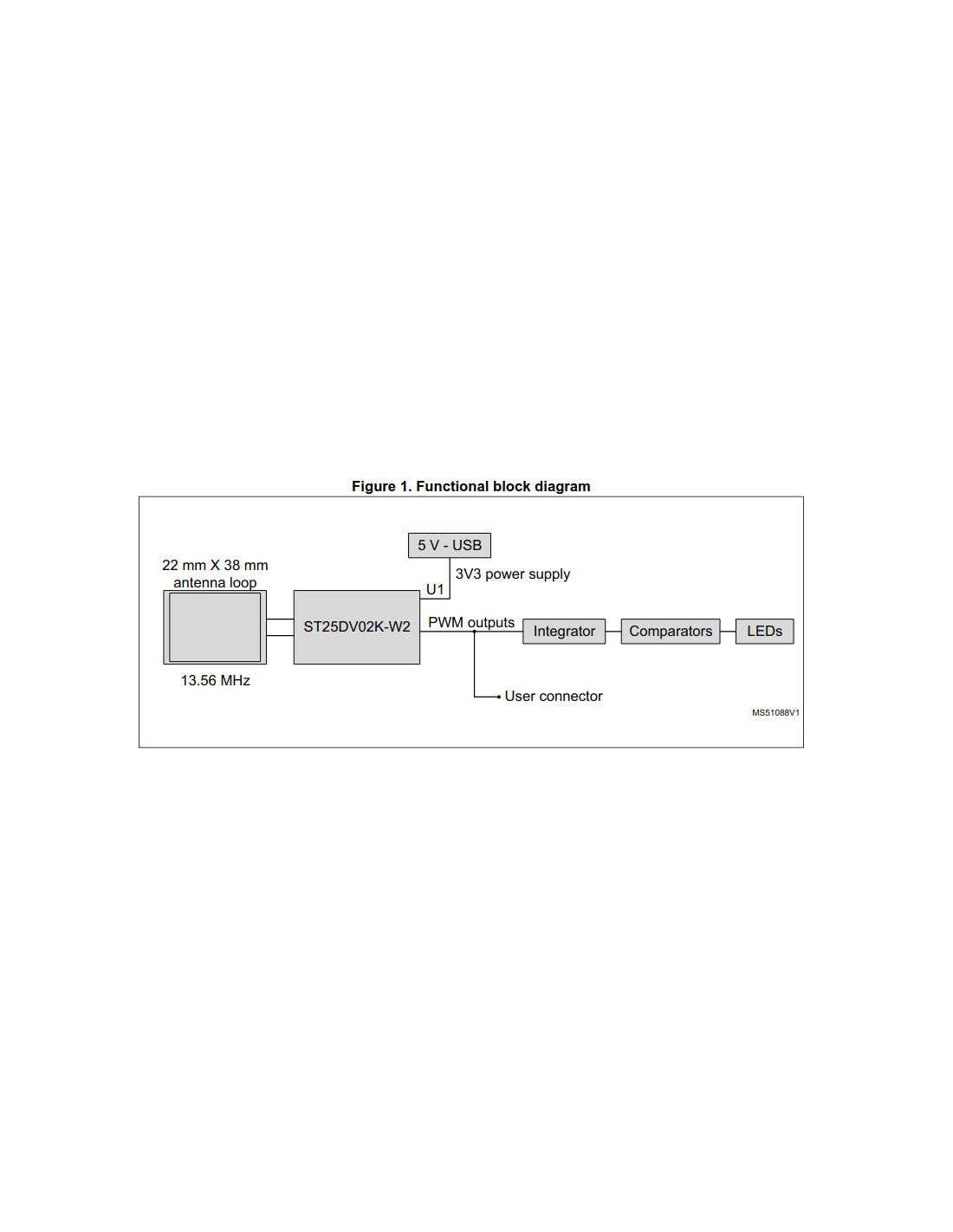

The ST25DV-PWM-eSET evaluation board allows you to explore the capabilities of the ST25DV02K-W2 IC, an NFC/RFID tag with programmable and secure PWM outputs. This component supports real-time update of PWM parameters via a wireless interface, compatible with 13.56 MHz RFID readers and NFC-enabled smartphones.
The wireless interface complies with ISO/IEC 15693 and NFC Forum Type 5 standards. The board features an inductive antenna etched on the PCB, two LEDs to visualize the duty cycle of PWM outputs, and a 2-Kbit EEPROM protected by the TruST25™ mechanism.
Specifications
- IC: ST25DV02K-W2 (SO8N ECOPACK2® package)
- Single-layer inductive antenna: 22 x 38 mm² etched on PCB
- Contactless interface: ISO/IEC 15693 and NFC Forum Type 5
- Internal tuning capacitance: 28.5 pF
- EEPROM memory: 2 Kbits, partitionable into up to four independent areas
- Security: TruST25™ digital signature mechanism for authentication
- Two LEDs indicating PWM output duty cycle
- Certifications: FCC verified, RoHS compliant
