DHT-12 Humidity Temperature Sensor
search
  • DHT-12 Humidity Temperature Sensor
  • DHT-12 Humidity Temperature Sensor
  • DHT-12 Humidity Temperature Sensor

DHT-12 Humidity Temperature Sensor

€3.60
Tax included
This is upgradation version of DHT-11 humidity temperature sensor, fully downward compatible, more precise and add I2C interface.
Quantity
Out-of-Stock

Features

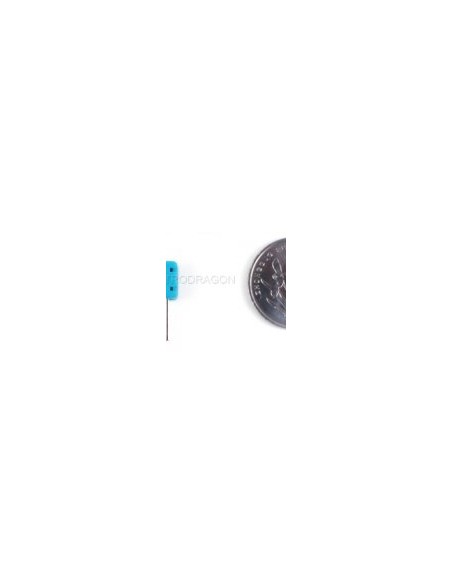

  • Super compact size
  • Super low power consumption
  • Super low voltage operation
  • Standard I2C and 1-wire interface.
  • Semi conductor technology
  • Sensing range
    • Temperature: -20 ~ +60 C
    • Humidity: 20-95 RH
  • Humidity:
    • Resolution: 0.1%RH
    • Repeat: -+ 1%RH
    • Precision 25C @ -+5RH
  • Temperature:
    • Resolution: 0.1C
    • Repeat: -+0.2C
    • Precision: 25C @ -+0.5C
  • Power: DC 2.7-5.5V
  • Normal current 1mA
  • Standby current 60uA
  • Sample cycle: > 2 seconds
  • Pin interface: 1. VDD 2. SDA 3. GND 4. SCL (connect to GND when use as 1-wire)
SENDHT12

Data sheet
