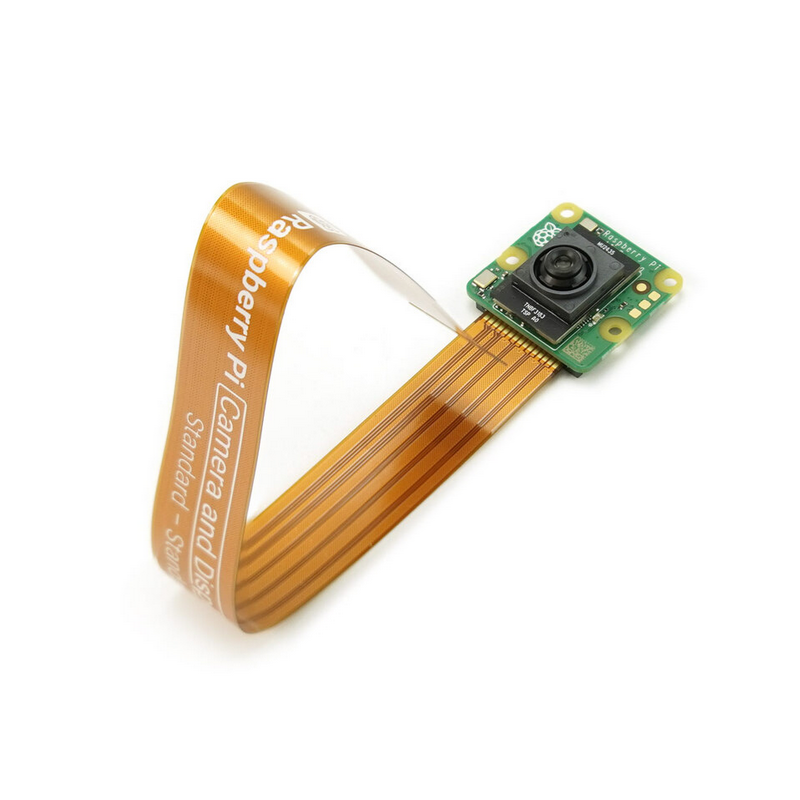

Raspberry Pi AI Camera (12.3 MP, Sony IMX500 Intelligent Vision Sensor)
search
  • Raspberry Pi AI Camera (12.3 MP, Sony IMX500 Intelligent Vision Sensor)
  • Raspberry Pi AI Camera (12.3 MP, Sony IMX500 Intelligent Vision Sensor)
  • Raspberry Pi AI Camera (12.3 MP, Sony IMX500 Intelligent Vision Sensor)

Raspberry Pi AI Camera (12.3 MP, Sony IMX500 Intelligent Vision Sensor)

€86.00
Tax included

In with the old, in with the new

Compatible with all Raspberry Pi computers, the Raspberry Pi AI Camera takes advantage of Sony’s IMX500 Intelligent Vision Sensor to help you create impressive vision AI applications and neural network models using the on-module AI processor.

Quantity
en stock

Specification

  • Sensor: Sony IMX500 Intelligent Vision Sensor
  • Resolution: 12.3 megapixels
  • Sensor Size: 7.857 mm (1/2.3” type)
  • Pixel Size: 1.55 µm x 1.55 µm
  • Image Dimensions: 4056 x 3040 pixels (horizontal/vertical)
  • IR Cut Filter: Integrated
  • Autofocus System: Manual adjustable focus
  • Focus Range: 20 cm to infinity
  • Focal Length: 4.74 mm
  • Field of View:
             Horizontal: 66° ±3°
             Vertical: 52.3° ±3°
  • F-stop: f/1.79
  • Infrared Sensitivity: No
  • Image Output:
             Bayer RAW10
             ISP output (YUV/RGB)
             ROI
             Metadata
  • Tensor Input Size: Max. 640 x 640 (H x V)
  • Data Type: int8 or uint8
  • Memory: 8,388,480 bytes (firmware, network weights, and working memory)
  • Framerate:
             2x2 binned: 2028 x 1520 10-bit @ 30fps
             Full resolution: 4056 x 3040 10-bit @ 10fps
  • Dimensions: 25 mm x 24 mm x 11.9 mm
  • Cable Length: 200 mm
  • Cable Connector: 15 x 1 mm FPC or 22 x 0.5 mm FPC
  • Operating Temperature: 0°C to 50°C
SENRPICAMMIA
