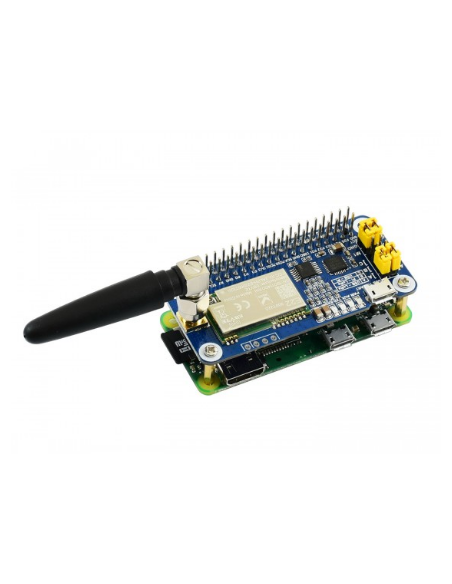

SX1262 LoRa HAT for Raspberry Pi, 868MHz Frequency Band, for Europe, Asia, Africa

This SX1262-based LoRa HAT is designed for Raspberry Pi boards. It enables long-range wireless communication using LoRa modulation in the 868 MHz frequency band, suitable for Europe, Asia, and Africa.

The module connects directly via the Raspberry Pi's 40-pin GPIO header. It features a Semtech SX1262 RF transceiver offering high sensitivity and low power consumption, supporting LoRa and FSK/GFSK protocols. Ideal for IoT projects, telemetry, and mesh networks.

Specifications

• RF Chip: Semtech SX1262
• Frequency Band: 862-870 MHz (Europe/Asia/Africa)
• Interface: 40-pin GPIO header (compatible with Raspberry Pi 1/2/3/4/Zero)
• Operating Voltage: 3.3 V
• Supported Protocols: LoRa, FSK, GFSK, MSK, GMSK, OOK
• Transmit Power: up to +22 dBm
• Receiver Sensitivity: down to -148 dBm (LoRa)
• Antenna: U.FL/IPEX connector for external 868 MHz antenna
• Form Factor: Standard Raspberry Pi HAT dimensions
