Carte Micro:bit BBC V 2.2

€21.00
Tax included

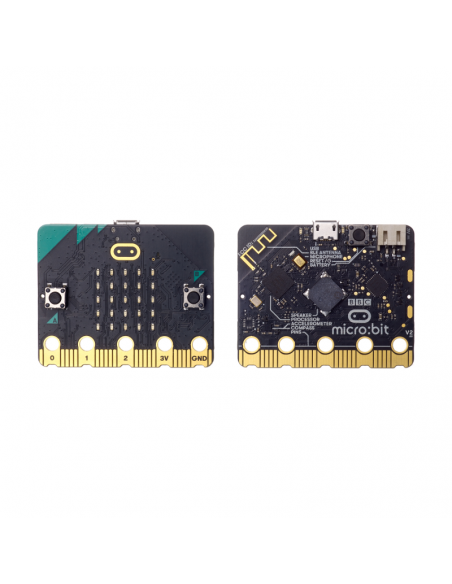

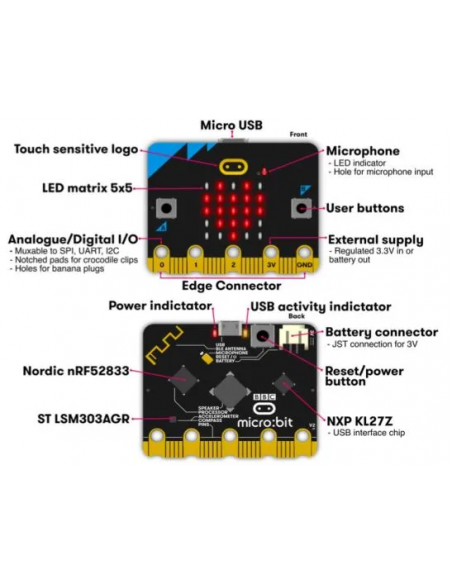

The BBC micro:bit V2.2 is a compact educational microcontroller based on the nRF52833 processor. It features a 25-LED matrix, built-in sensors (accelerometer, compass, temperature), microphone and speaker for interactive projects.

It includes two buttons, a touch logo, Bluetooth 5.0, and a 20-pin connector for attaching external components via its GPIO pins.

Quantity

The BBC micro:bit v2 is a compact pocket computer designed for education and digital creation. This second generation adds onboard audio capabilities, including a built-in speaker and MEMS microphone, allowing sound sensing and playback without external hardware.

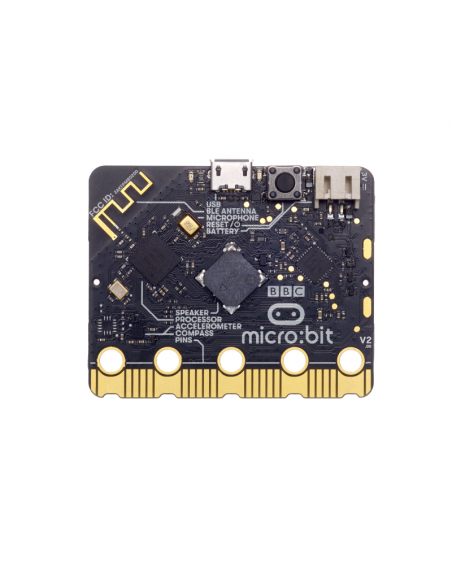

Powered by the Nordic nRF52833 processor (ARM Cortex-M4), it features Bluetooth 5.0 connectivity while retaining the beloved features of the original board: a 25-LED matrix, accelerometer, magnetometer, and two programmable buttons.

Specifications

SpecificationValue
Processor (MCU)Nordic nRF52833 (ARM Cortex-M4F 64 MHz)
Flash Memory512 KB
RAM128 KB
Wireless ConnectivityBluetooth Low Energy 5.0 (BLE)
Display25 LED matrix (5x5)
AudioBuilt-in speaker and Knowles SPU0410LR5H-QB-7 MEMS microphone with LED indicator
SensorsAccelerometer, magnetometer (ST LSM303), light and temperature sensors
User Inputs2 programmable buttons and capacitive touch logo
Power SupplyMicro USB (5V) or external battery (3.7V via JST connector)
Extension InterfaceGold-plated 20-pin edge connector (compatible with v1 pinout)
LINBITBBC2
