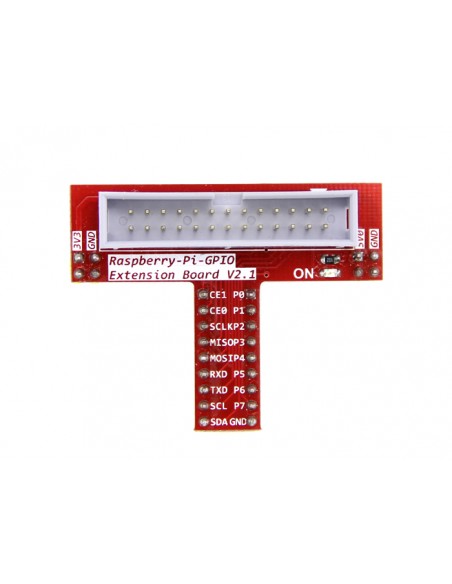

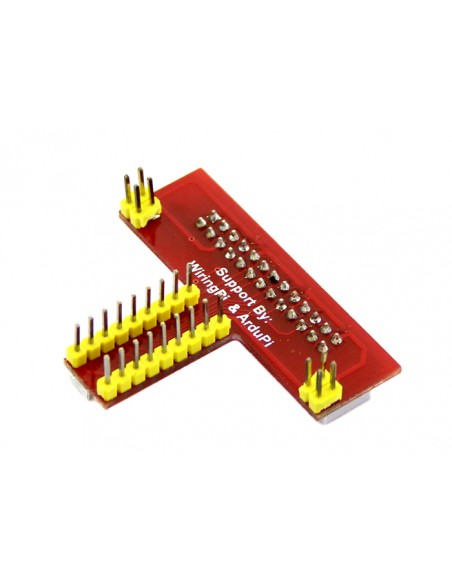

Breakout for Raspberry Pi to Breadboard (T-Cobbler)

BRBRPITCOB
€3.75

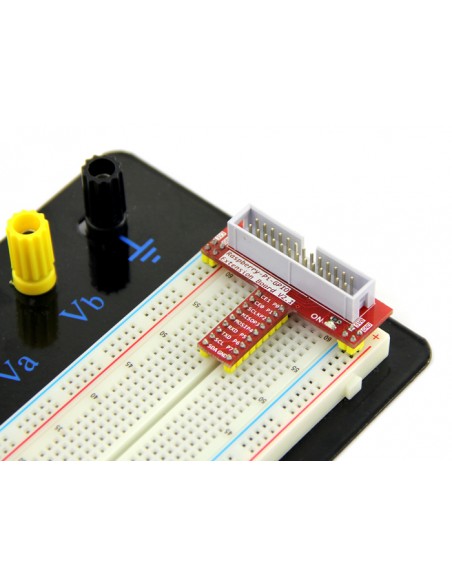

This is a T-Cobbler breakout kit used for extending the GPIO interface on Raspberry Pi to breadboard. It helps you to make the connections between Raspberry Pi and breadboard become simple.

You might also like

HackSpark
  1. All our products are shipped from France.
  2. A doubt about a purchase ? Return your items and get money back.
  3. We carefully choose and test the products we sell.
Corresponding Interface
  • P0 - GPIO 17
  • P1 - GPIO 18
  • P2 - R1: GPIO 21, R2: GPIO 27
  • P3 - GPIO 22
  • P4 - GPIO 23
  • P5 - GPIO 24
  • P6 - GPIO 25
  • P7 - GPIO 4
  • CE1 - GPIO 7
  • CE0 - GPIO 8
  • SCLK - GPIO 11
  • MISO - GPIO 9
  • MOSI - GPIO 10
  • RXD - GPIO 15
  • TXD - GPIO 14
  • SCL - R1: GPIO 1, R2: GPIO 3
  • SDA - R1: GPIO 0, R2: GPIO 2
