Dual stepper motor shield

iTeadStudio
ASHITEDUASTE
€11.58

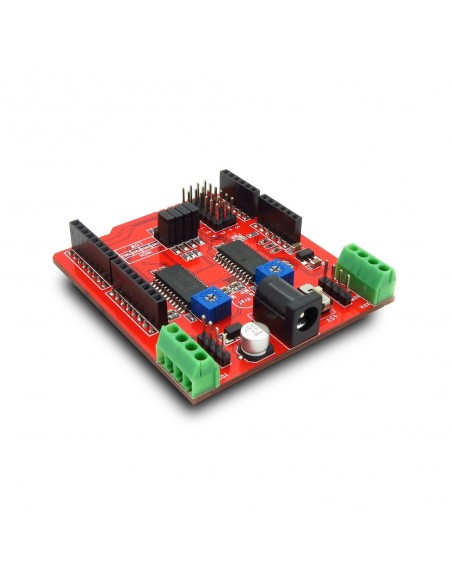

Dual stepper motor driver shield can drive 2 stepper motors at the same time by Arduino. It can work with the power supply from 4.75V to 30V. High accuracy controlling can be supported by Arduino for CNC milling machine.

Overview

Dual stepper motor driver shield can drive 2 stepper motors at the same time by Arduino. It can work with the power supply from 4.75V to 30V. High accuracy controlling can be supported by Arduino for CNC milling machine.

It uses the same stepper motor driver chip as EasyDriver, so you can use it as 2 EasyDriver modules on board. And there are all pins breakout as 3PIN electronic brick/ sensor brick interface.



Hardware

Pin

Description

D0

UART_Rx

D1

UART_Tx

D2

X Step

D3

X Direction

D4

X MS1 setting

D5

X MS2 setting

D6

Y Step

D7

Y Direction

D8

Y MS1 setting

D9

Y MS2 setting

D10

-

D11

-

D12

-

D13

-

A0

AD0

A1

AD1

A2

AD2

A3

AD3

A4

IIC_SCL

A5

IIC_SDA

Voltage
3.3v,5v
