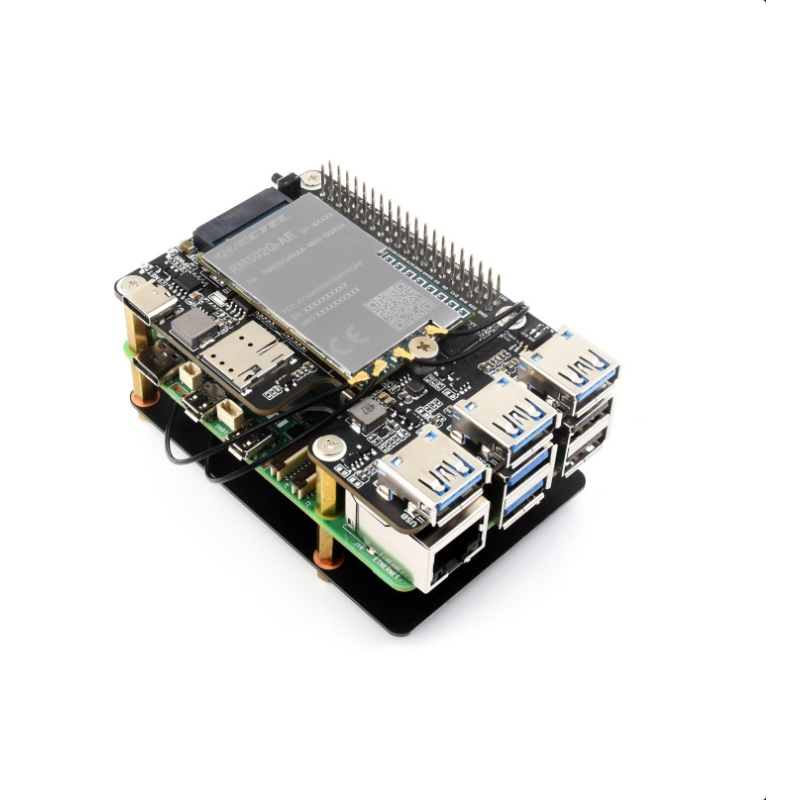

4G/5G Raspberry Pi 5 PCIe vers M.2 4G/5G SIMCom/Quectel et USB 3.2 HAT+ High-speed Networking
€37.50
Tax included
PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5, Compatible with SIMCom/Quectel 4G/5G modules, Raspberry Pi 5 HAT, High-speed Networking
4G/5G module is not included, please purchase it separately according to your needs.
Features at a glance
- Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
- Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals
- Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
- Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input
- Onboard power monitoring chip for real-time measurement of voltage, current and power
- Onboard SIM card slot for NANO-SIM card
- Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status
- Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
- Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation
Designed for Raspberry Pi 5, HAT+ standard
Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable
More USB Capability For Raspberry Pi 5
Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
Compatible With Multiple SIMCom/Quectel 4G/5G modules with M.2 Key B interface
Onboard M.2(NGFF) Key B slot, Tested To Support SIM7600XX-M.2, SIM82XX and RM5XX series Modules, Compatible with 3042/3052 Packages
| 5G Module | RM502Q-AE | RM520N-GL | RM530N-GL | SIM8262E-M2 | SIM8262A-M2 | SIM7600G-H-M.2 | |
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
||
| 5G Standard | 3GPP R15 | 3GPP R16 | - | ||||
| 5G | Sub-6 GHz | Sub-6G & mmWave | Sub-6 GHz | - | |||
| Applicable Region | Global (except China) | Global | except Americas | Americas | Global | ||
| Dimensions | 30.0 × 52.0 × 2.3 (mm) | 30.0 × 42.0 × 2.3 (mm) | 42.0 × 31.4 × 3.8 (mm) | ||||
| Frequency band | |||||||
| 5G | 5G NR | - | n257, n258, n260, n261 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | - | |
| 5G NR NSA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||||
| 5G NR SA | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||||
| LTE | LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 | ||
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | B34, B38, B39, B40, B41 | |||
| LAA | B46 | - | |||||
| UMTS | WCDMA | B1, B2, B3, B4, B5, B6, B8, B19 | B1, B2, B4, B5, B8, B19 | B1, B5, B8 | B2, B4, B5 | B1, B2, B4, B5, B6, B8, B19 | |
| GNSS | GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE) | GPS / GLONASS / BeiDou / Galileo / QZSS | |||||
| Data rate | |||||||
| 5G mmWave | - | downlink 4 Gbps; uplink 1.4 Gbps |
- | ||||
| 5G SA Sub-6 | downlink 4.2 Gbps; uplink 450 Mbps |
downlink 2.4 Gbps; uplink 900 Mbps |
downlink 2.4 Gbps; uplink 500 Mbps |
- | |||
| 5G NSA Sub-6 | downlink 5 Gbps; uplink 650 Mbps |
downlink 3.4 Gbps; uplink 550 Mbps |
|||||
| LTE | downlink 2 Gbps; uplink 200 Mbps |
downlink 1.6 Gbps; uplink 200 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
downlink 150 Mbps; uplink 50 Mbps |
|||
| UMTS | downlink 42 Mbps; uplink 5.76 Mbps |
||||||
| Note: The 4G/5G module is NOT included, please purchase separately. The above are the supported modules after testing; If you need to use with other modules, please confirm with the module manufacturer for interface compatibility. | |||||||
Multi-system Support
Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.
Raspberry Pi OS
GSMRPISIMU5G
