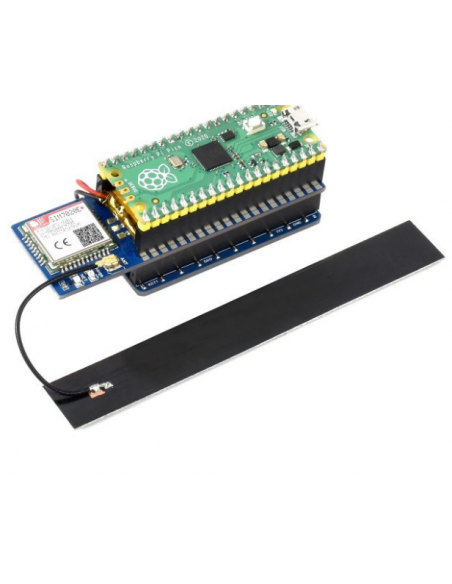

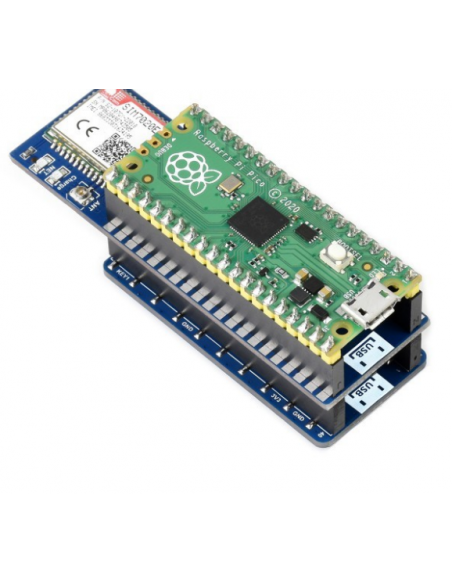

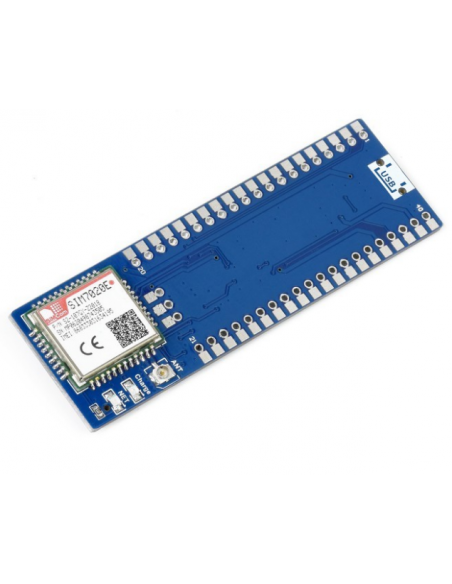

SIM7020E NB-IoT module for Raspberry Pi Pico
€22.00
Tax included
The SIM7020E is an NB-IoT module specifically designed for the Raspberry Pi Pico, ideal for IoT applications. It supports multiple NB-IoT frequency bands, UART communication, AT-command control, and various cloud platforms. The board features a built-in Nano SIM slot, a 3.7V Li-po battery interface, and 2x LEDs, and comes with development resources including a manual with MicroPython examples.
Features
- LTE-FDD Frequency Bands: B1 / B3 / B5 / B8 / B20 / B28
- Data Rate: 26.15 kbit/s (DL) / 62.5 kbit/s (UL)
- Communication Interface: UART, baud rates from 300 bps to 921,600 bps (default 115,200 bps)
- Communication Protocols: TCP / UDP / HTTP / HTTPS / MQTT / LWM2M / COAP / TLS / DTLS / DNS / NTP
- Applicable Regions: Asia, Europe, Africa, Australia
- Power Supply: External Li-po battery OR Raspberry Pi Pico USB port
- Battery Interface: 3.7 V to 4.2 V
- Logic Level: 3.3 V
- Module Current Consumption:
- Deep Sleep Mode: 5.6 mA
- Light Sleep Mode: 0.4 mA
- PSM Mode: 3.4 µA
- Dimensions: 73.5 × 24 mm
LINRPIPICOIOT
