Grove Mini GPS/BDS Unit (AT6558) M5stack

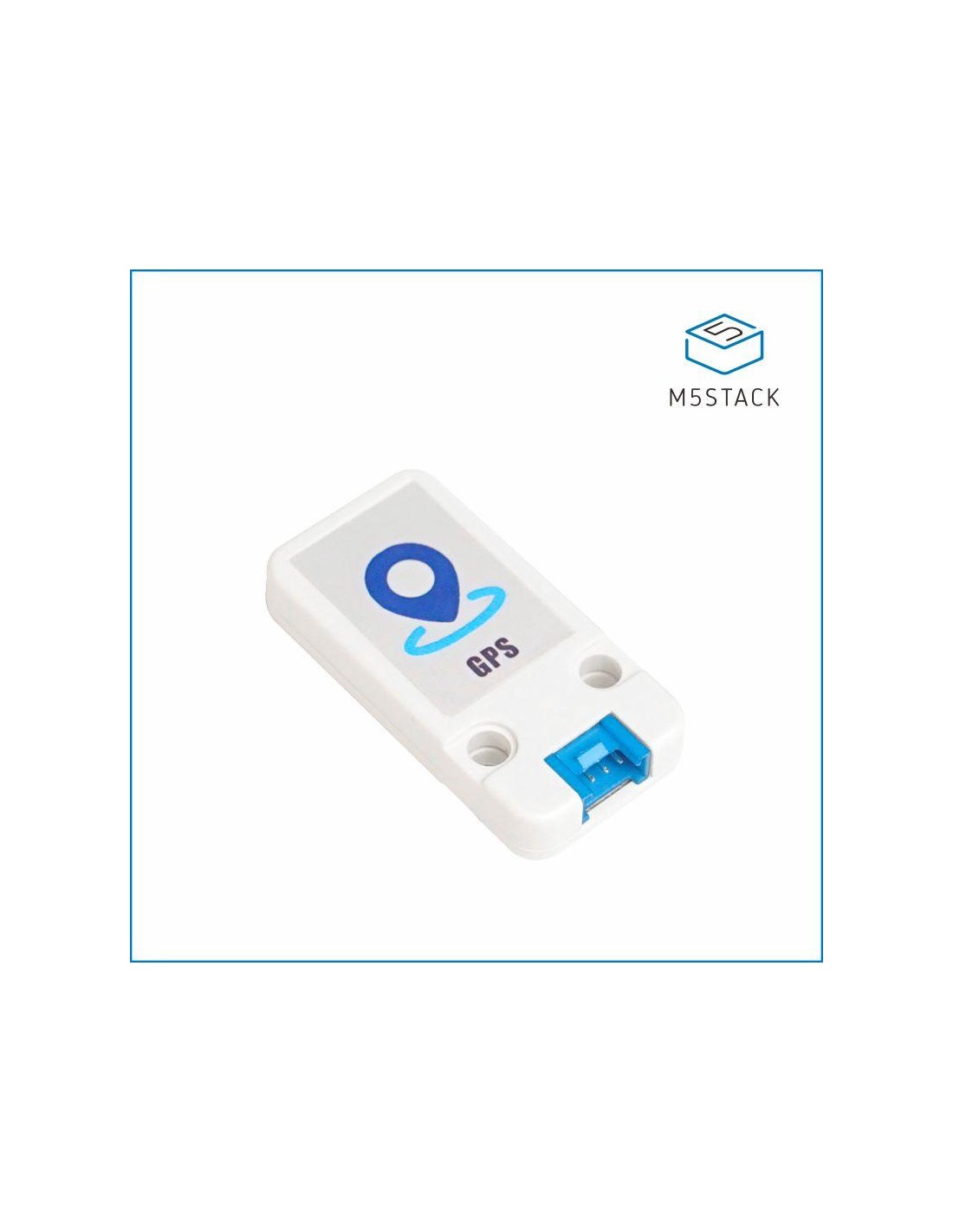

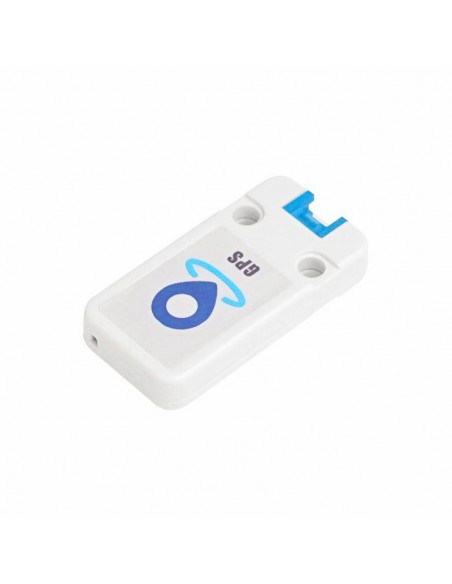

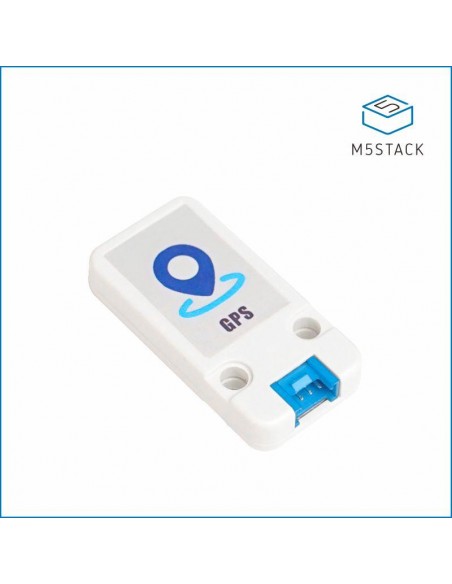

GPS is an M5Stack Unit that integrates a AT6558 navigation chip and a MAX2659 amplification chip which is used for amplifying the antenna signal.

AT6558 is an high performance chip that supports many types of satellite navigation systems, able to receive satellite signals on 56 channels GNSS signal from 6 satellite navigation system, joint location, navigation, timing and more.

The module is able to obtain accurate global location information, quick and accurate positioning for anywhere in the city, in the canyon, under the overhead and inside the car.

The module can be widely used in vehicle monitoring, bus reporting, car navigation, onboard navigation, notebook navigation and other products.

You can plug it into port C on M5core via GROVE cable, which is a standard UART interface.


  • Supports GPS, GLONASS, Galileo, QZSS, and Beidou
  • Baudrate(default: 9600bps)
  • Start bits(1 bit)
  • Stop bits(1 bit)
  • Parity(no)

Product Features

  • Support single system positioning of BDS/GPS/GLONASS satellite navigation systems, or multi-system joint positioning in any combination
  • Support D-GNSS differential positioning
  • Two Lego-compatible holes

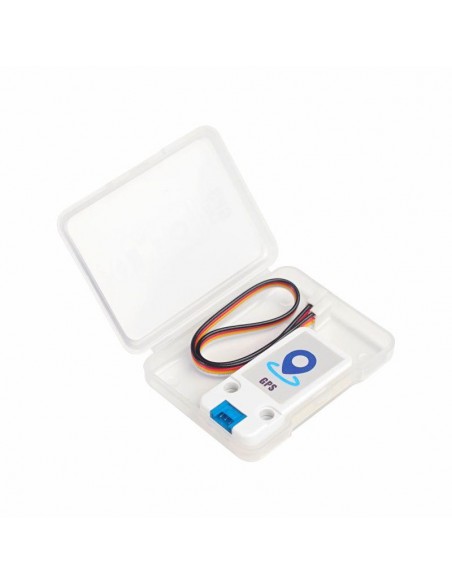

  • 1x GPS Unit
  • 1x Grove Cable


  • Vehicle positioning and navigation
  • Smart law enforcement positioning


Resources Parameter
Positioning accuracy 2.5m
Channel 56
Positioning update frequency 1-10Hz
Maximum height 1800m
Maximum speed 515m/s
Maximum acceleration <= 4g
Sensitivity Tracking: -162dBm,Capture: -148dBm,Cold start: -146dBm
Start Time Cold start: 35 seconds,Warm start: 32 seconds,Hot start: 1 second
Operating temperature -40°C - 85°C
Net weight 13g
Gross weight 26g
Product Size 48*24*8mm
Package Size 67*53*12mm
Resources Parameter
Air pressure measurement range 300 - 1100 hPa(+9000m ~ -500m)
Relative accuracy 0.12hPa
Absolute accuracy 1hPa
Temperature measurement range -40 ~ +85°C
Temperature resolution 0.01°C
Pressure resolution 0.16Pa
Temperature coefficient offset 1.5 Pa/K(12.6 cm/K)
Current consumption 2.7μA @ 1 Hz sampling rate
Voltage 1.71V - 3.6V
Communication protocol I2C:0x76
Net Weight 8g
Gross Weight 21g
Produce Size 24*24*13mm
Package Size 35*36*18mm
