Inductance bobinée CMS, 22 μH, 420mA, Dimensions 3.2 x 2.5 x 2.2mm
€4.00
Tax included

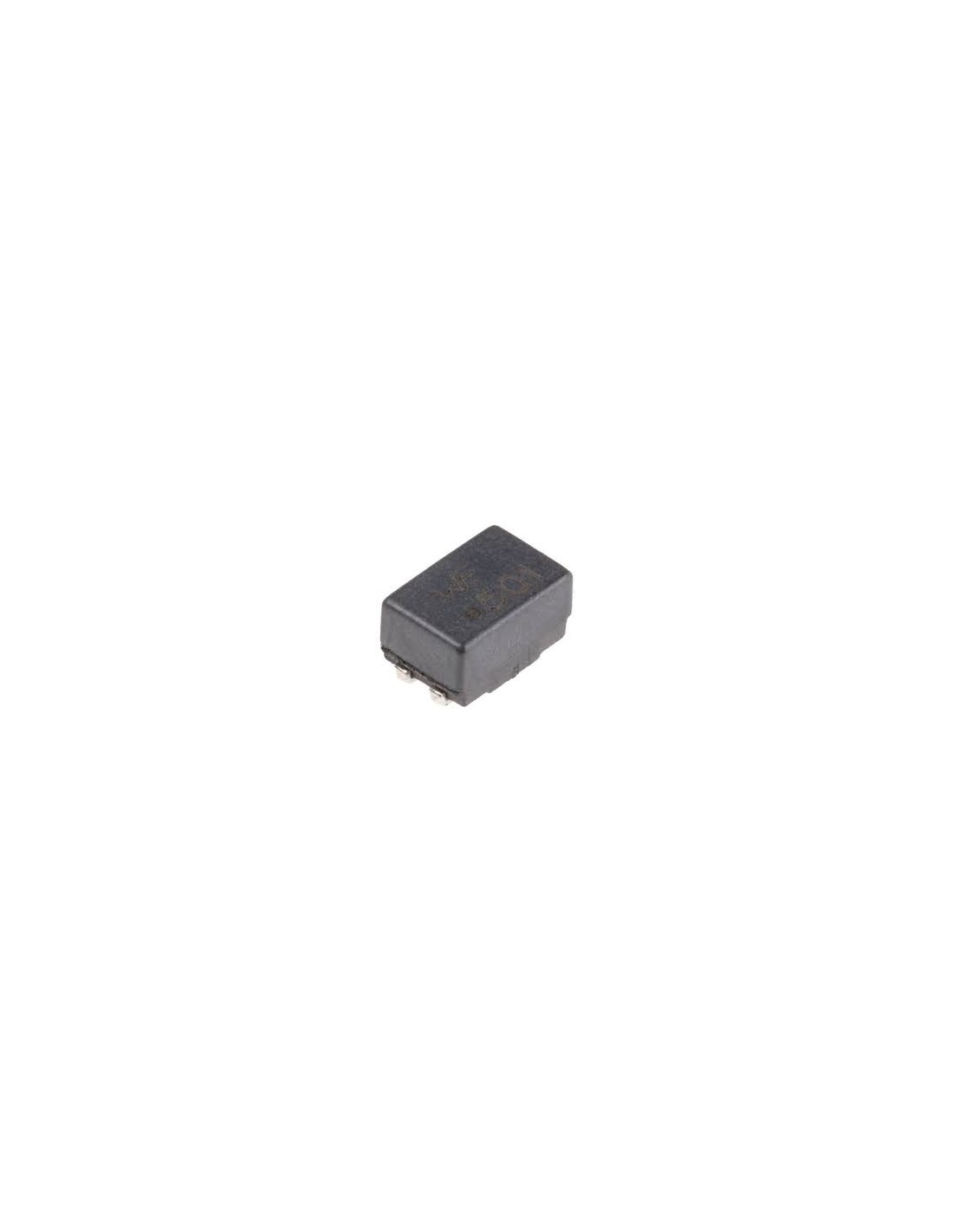

Panasonic ELJPA series surface-mount wire-wound inductor, 1210 package (3.2 x 2.5 mm). 22 µH value with 420 mA current rating and low DC resistance.
Surface-mount wire-wound inductor from the Panasonic ELJPA series in a compact 3225 (1210) package. Designed for applications requiring low series resistance and medium-to-high current handling capabilities.
With its high Q factor and precise frequency response, it is particularly suitable for power supply circuits in consumer electronics such as mobile phones, televisions, and VCRs.
Specifications
| Parameter | Value |
|---|---|
| Inductance | 22 µH |
| DC Current Rating | 420 mA |
| Tolerance | ±10 % |
| DC Resistance (max) | 660 mΩ |
| Self-Resonant Frequency (max) | 15 MHz |
| Package | 3225 (1210) |

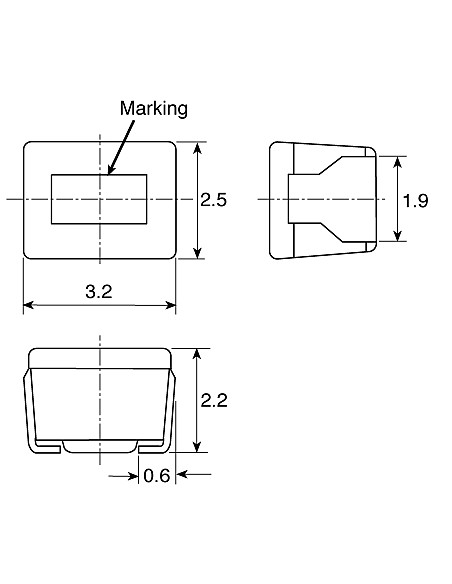

| Dimensions | 3.2 x 2.5 x 2.2 mm |
| Operating Temperature | -20 °C to +85 °C |
| Type | Molded Wire-Wound |
SMDKJAN022MH
10 Items
