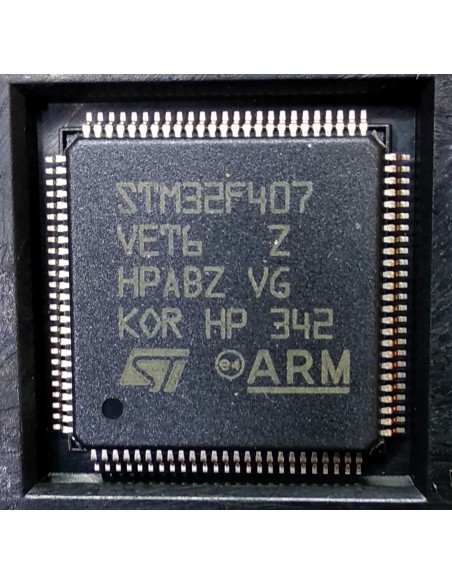

STM32F407VET6 ARM Cortex-M4 Microcontroller LQFP-100

€17.00
Tax included
STM32F407VET6 ARM Cortex-M4 microcontroller at 168 MHz with 512 Kbytes Flash and 192 Kbytes SRAM in LQFP-100 SMD package.
Quantity

The STM32F407VET6 microcontroller from STMicroelectronics is based on the high-performance Arm Cortex-M4 32-bit core with floating-point unit (FPU), operating at frequencies up to 168 MHz. This MCU integrates 512 Kbytes of Flash memory and 192 Kbytes of SRAM, delivering high performance while maintaining low power consumption through sleep, stop, and standby modes.

This microcontroller is ideal for industrial and consumer applications requiring significant processing power: motor control, LCD graphics interfaces, Ethernet communication systems, and digital signal processing. It features a comprehensive set of integrated communication interfaces including USB OTG, Ethernet, CAN, I2C, SPI, and UART/USART, plus an ART Accelerator for zero-wait-state execution from Flash memory.

Specifications

SpecificationValue
FamilySTM32F405xx/STM32F407xx
CoreARM 32-bit Cortex-M4 with FPU
Max Frequency168 MHz
Flash Memory512 Kbytes
SRAM192 Kbytes (+ 4 Kbytes CCM)
Supply Voltage1.8 V to 3.6 V
PackageLQFP-100 (SMD)
I/O Pins82
Communication InterfacesCAN, I2C, SPI, UART/USART, USB OTG HS/FS, Ethernet
ADC Converters3 x 12-bit, 2.4 MSPS (up to 24 channels)
DAC Converters2 x 12-bit
TimersUp to 17 timers (12x 16-bit + 2x 32-bit)
DMA16 channels with FIFO
AcceleratorART Accelerator™ (0 wait state)
Performance210 DMIPS / 1.25 DMIPS/MHz
