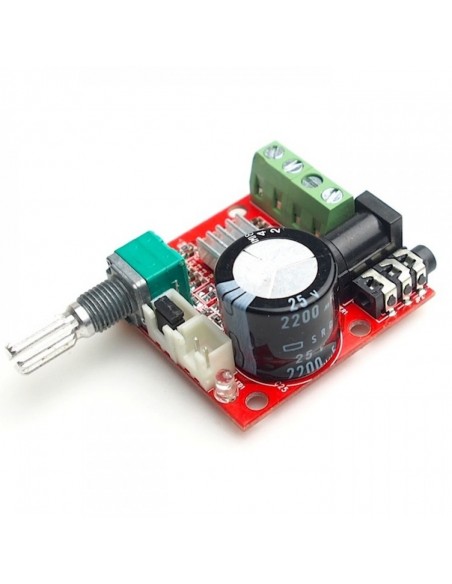

2*10W Dual Channel HIFI Mini Audio Amplifier PAM8610

Product Description

Equipped with the original PAM8610 chip, this module is a 10W (per channel) Class D stereo audio amplifier.

• High-quality sound reproduction, low THD + N (0.1%) without filter. With a 10V supply and 8Ω load, it delivers 10W at 10% THD.
• Good PSRR, ultra-low noise output -90dB.
• New direct output drive for speakers without needing a low-pass filter.
• Low quiescent current, low EMI. Low power consumption and heat.
• Includes off/mute noise cancellation function.
• High efficiency of 90%, operating voltage 7-13.5V, low THD + N, and low quiescent current.
• Features over-current, over-temperature, and short-circuit protection.

Specifications:

• Work mode: High efficiency Class D
• Quiescent Current: 20mA
• Working efficiency: 90%
• Rated output power: 10W + 10W (8Ω)
• Frequency response: 20Hz to 50kHz
• Operating voltage: DC 7.5-15V
• Recommended supply voltage: 12V
• PCB size: (40 * 40) mm
• Weight: 24g

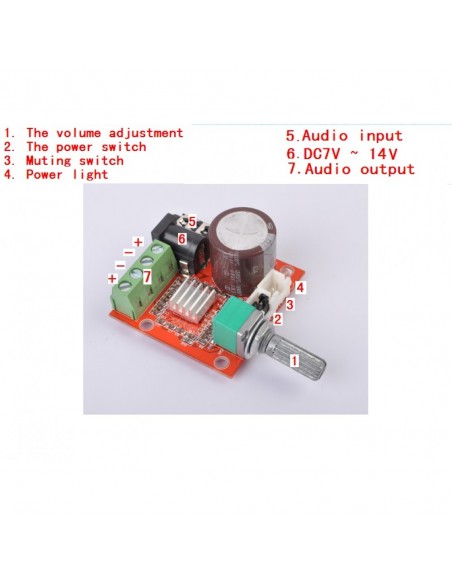

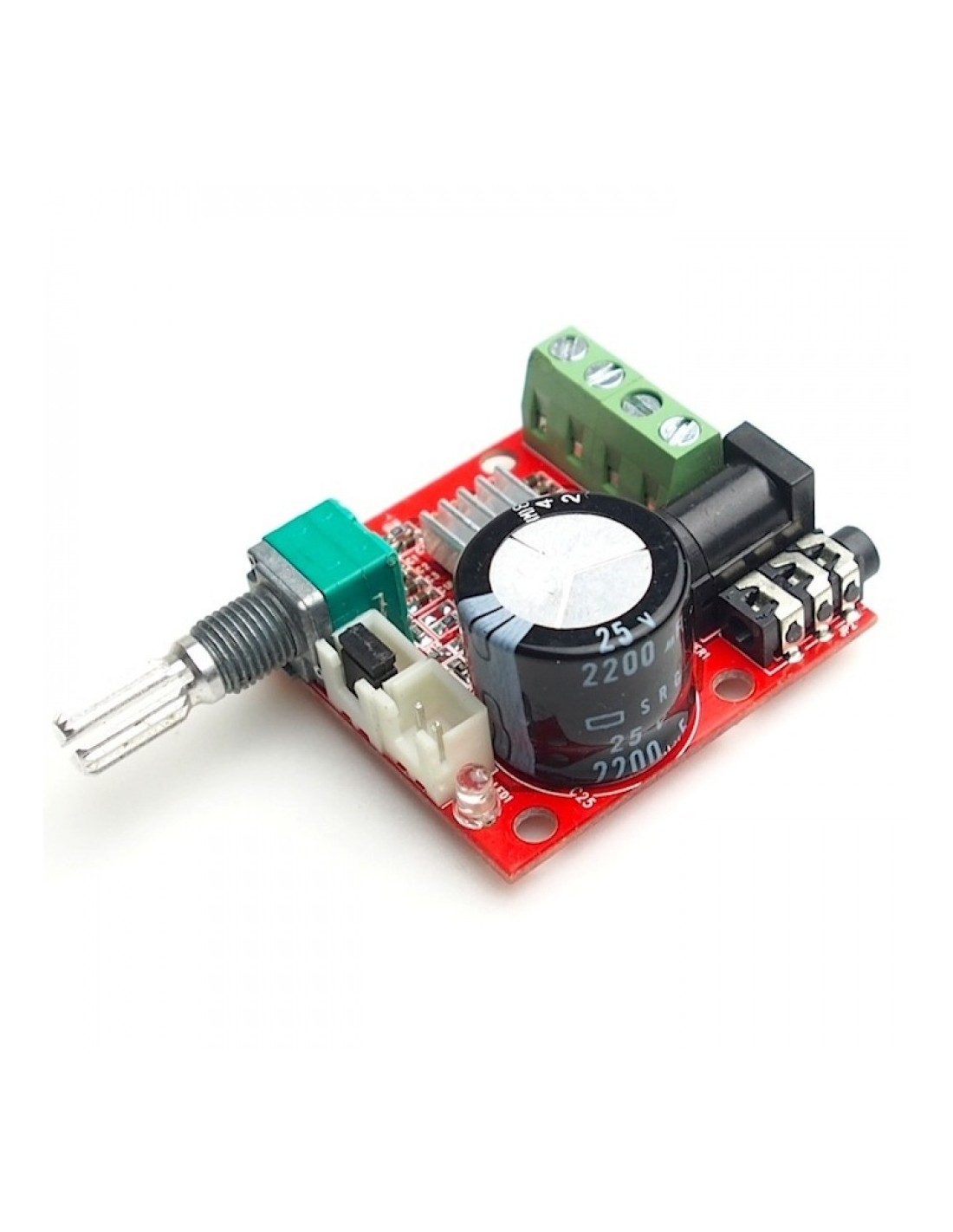

The board includes mute, volume control, L/R channel outputs, and an audio jack input.

Note: Connect the speakers to this amplifier board BEFORE applying power! Otherwise, the board may burn out!

Schematic reference.
