8X32 RGB LED Matrix w/ WS2812B - DC 5V (Flexible PCB, one wire serial control - Neopixel compatible)

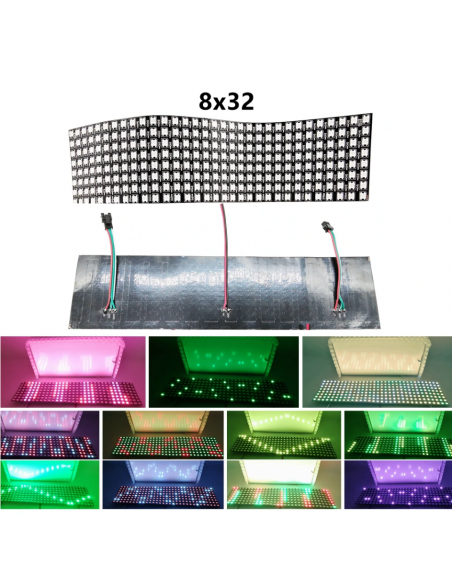

Flexible 8x32 RGB LED Matrix featuring 256 individually addressable WS2812B pixels. Built on a black flexible PCB (FPCB), this module allows you to create dynamic, customizable light displays for your electronics projects.

The single-wire serial interface simplifies wiring with any microcontroller. The SMD 5050 light source provides excellent brightness and a wide viewing angle, making it ideal for visual indicators or decorative lighting.

Specifications

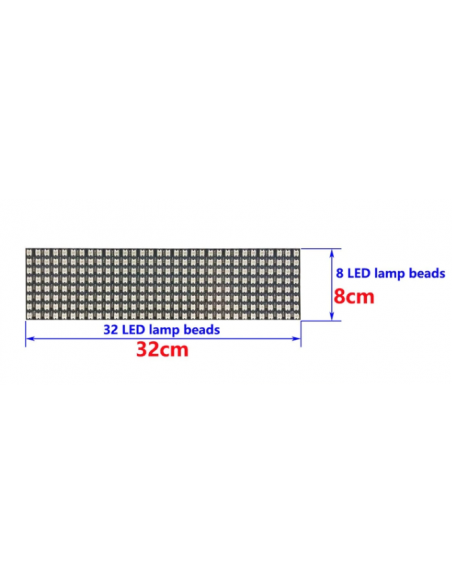

• Pixels: 8 x 32 (256 individually addressable WS2812B LEDs)
• Supply Voltage: 5 V DC

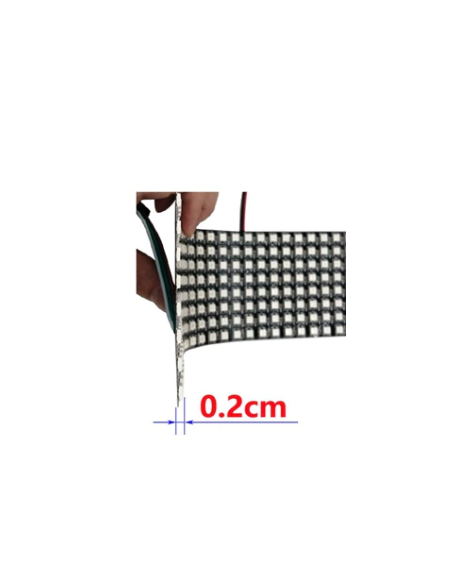

• PCB Type: Flexible (Black FPCB, flexible copper)
• Lights: SMD 5050 RGB, full color (24-bit)
• Grayscale Levels: 256 levels per sub-pixel
• Beam Angle: 120°
• Max Power Consumption: ~75 W (all LEDs at full white)
• Protection Rating: IP30 (not waterproof)
• Operating Temperature: -20°C to +40°C
• Control: Single-wire serial, Neopixel-compatible
• Lifespan: >50,000 hours
