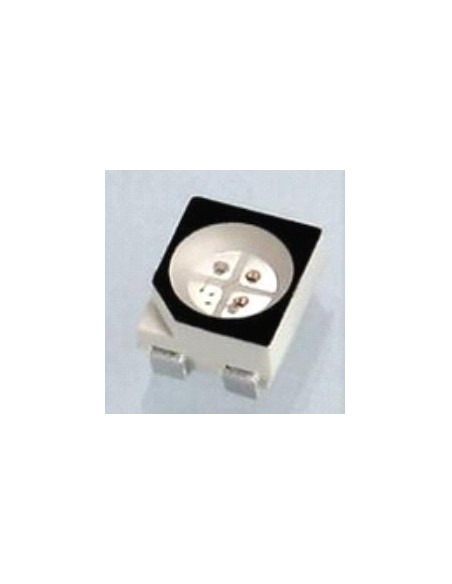

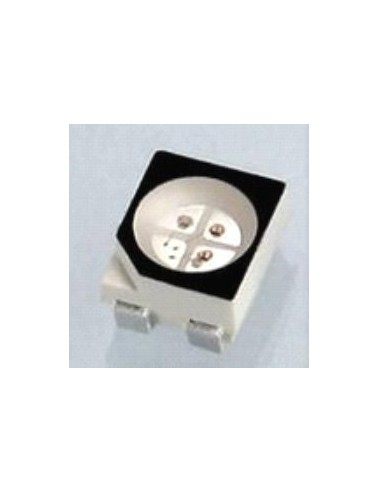

SMD LED 3528 PLCC4 RGB (Diffuse)

€0.45
Tax included

RGB SMD LED in a PLCC4 (3528 size) package with a diffused lens. It features a wide 120° viewing angle and supports 20 mA per channel for optimal red, green, and blue color mixing.

Volume discounts

Quantity Unit discount You Save
50 €0.05 €2.50
100 €0.10 €10.00
Quantity

The minimum purchase order quantity for the product is 10.

RGB SMD LED in a PLCC4 package with a 3528 form factor. This multi-color light emitting diode allows for a wide range of color generation by modulating the intensity of its red, green, and blue channels. It is well-suited for indicator lights, electronic device backlighting, and home automation projects requiring a low-profile component.

Specifications

  • Type: RGB (Red, Green, Blue) common anode
  • Packaging: SMD PLCC4 (3528 size)
  • Dimensions: 3.5 x 2.8 x 0.95 mm
  • Typical Forward Voltage (Vf): Red ~2.1V, Green ~3.2V, Blue ~3.2V
  • Max Current per Channel: 20 mA
  • Viewing Angle: 120°
  • Lens: Integrated diffuser for uniform color mixing
SMDJANLEDRGB
4990 Items
