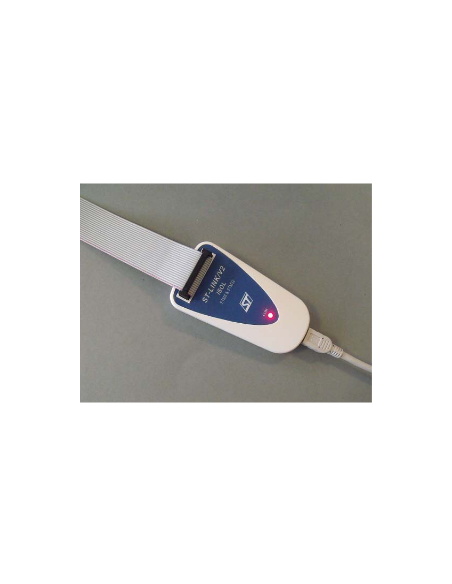

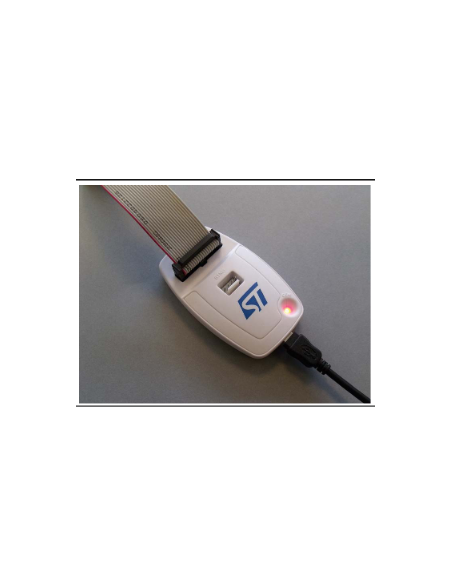

ST-LINK/V2 - Debugger and in-circuit programmer for STM8 and STM32, ST

€42.00
Tax included

ST-LINK/V2 - Debugger and in-circuit programmer for STM8 and STM32, ST

Quantity
Out-of-Stock

Features
5 V power supplied by a USB connector
USB 2.0 full-speed-compatible interface
USB standard A to Mini- B cable
SWIM specific features
1.65 V to 5.5 V application voltage
supported on SWIM interface
SWIM low-speed and high-speed modes
supported
SWIM programming speed rate:
9.7 Kbytes/s in low speed and
12.8 Kbytes/s in high speed
SWIM cable for connection to the
application via an ERNI standard
vertical connector (ref: 284697 or 214017)
or horizontal connector (ref: 214012)
SWIM cable for connection to the
application via a pin header or a 2.54 mm
pitch connector
JTAG/serial wire debugging (SWD) specific
features:
1.65 V to 3.6 V application voltage
supported on the JTAG/SWD interface and
5 V tolerant inputs
JTAG cable for connection to a standard
JTAG 20-pin pitch 2.54 mm connector
JTAG supported
SWD and serial wire viewer (SWV)
communication supported
Direct firmware update feature supported
(DFU)
Status LED which blinks during communication
with the PC
Operating temperature 0 to 50 °C
1000 Vrms high isolation voltage
(ST-LINK/V2-ISOL only

PRGJANSTMV2
