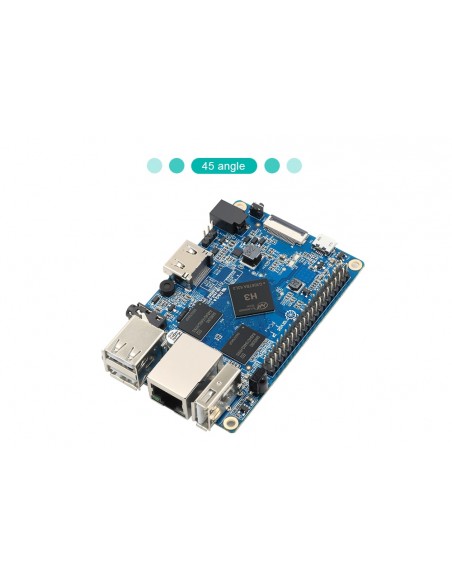

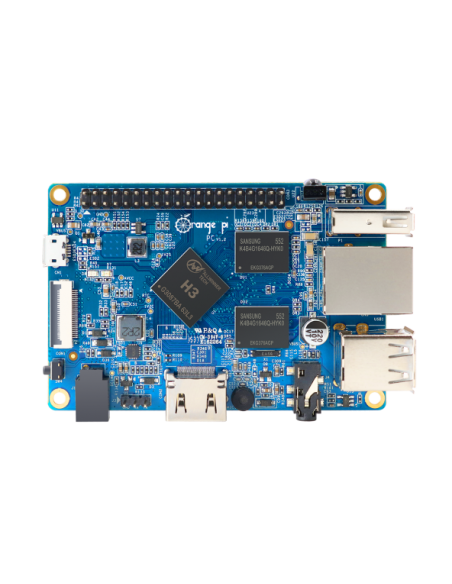

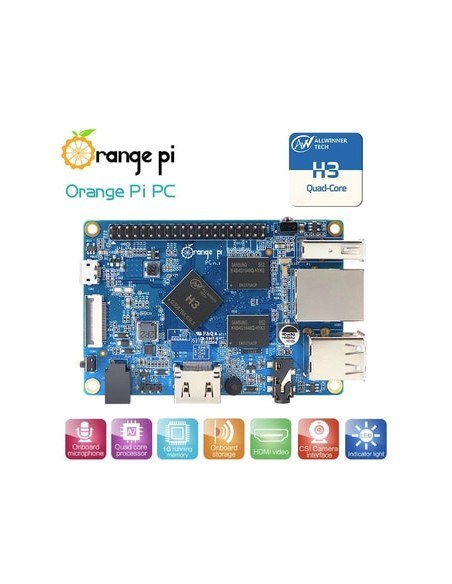

Orange Pi PC 1 go H3 Quad-Core, Android, Ubuntu, Debian
€59.90
€39.90
Save €20.00
Tax included
Orange Pi PC is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

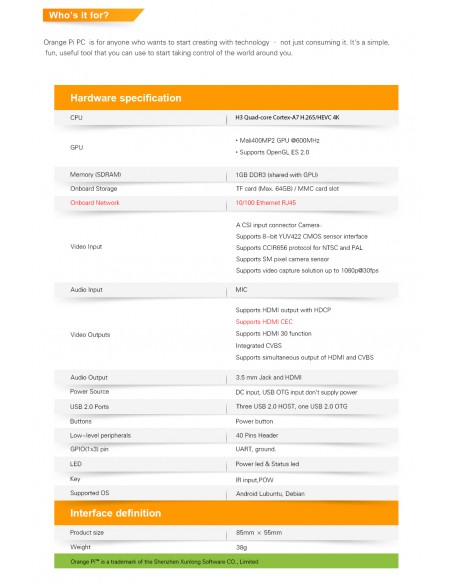

Hardware specification
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | • Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 32GB) / MMC card slot |
| Onboard Network | 10/100M Ethernet RJ45 |

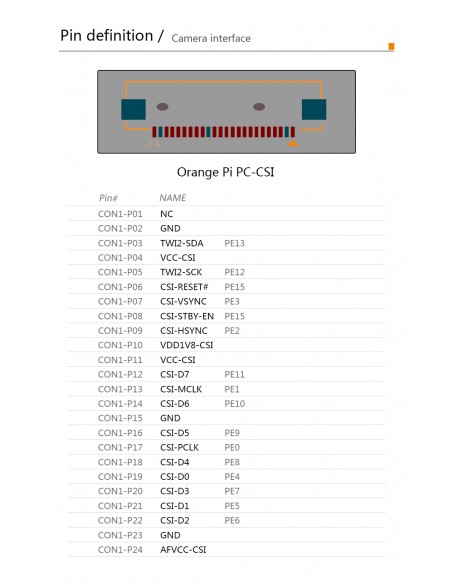

| Video Input | • A CSI input connector Camera: • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps |
| Audio Input | MIC |
| Video Outputs | • Supports HDMI output with HDCP • Supports HDMI CEC • Supports HDMI 30 function • Integrated CVBS • Supports simultaneous output of HDMI and CVBS |
| Audio Output | 3.5 mm Jack and HDMI |
| Power Source | DC input can supply power, but USB OTG input don’t supply power |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button(SW4) |

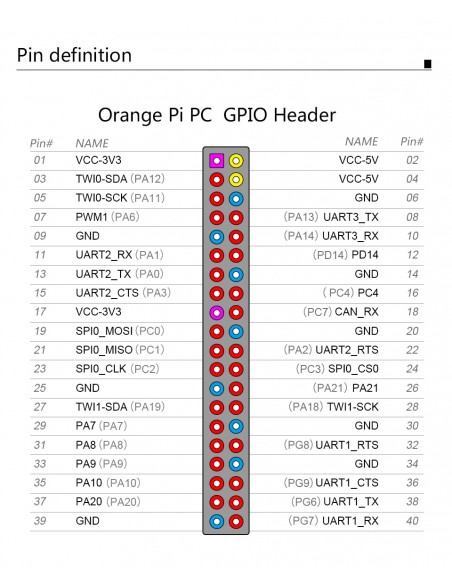

| Low-level peripherals | 40 Pins Header |
| GPIO(1x3) pin | UART, ground. |
| LED | Power led & Status led |
| Key | IR input, POWER |
| Supported OS | Android Ubuntu, Debian Image |
Interface definition
| Product size | 85 mm × 55mm |
| Weight | 38g |
LINOPIH31GO
5 Items
Orange Pi PC is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
