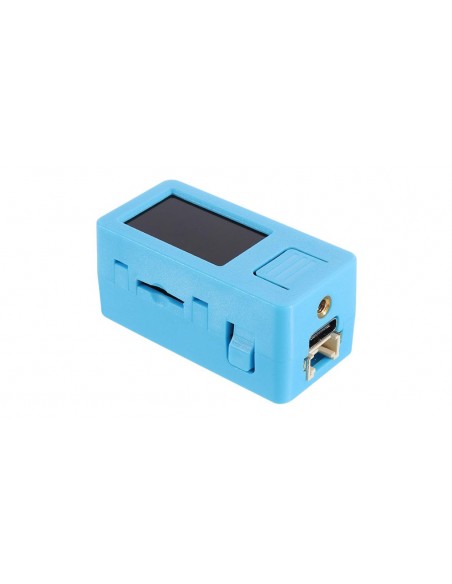

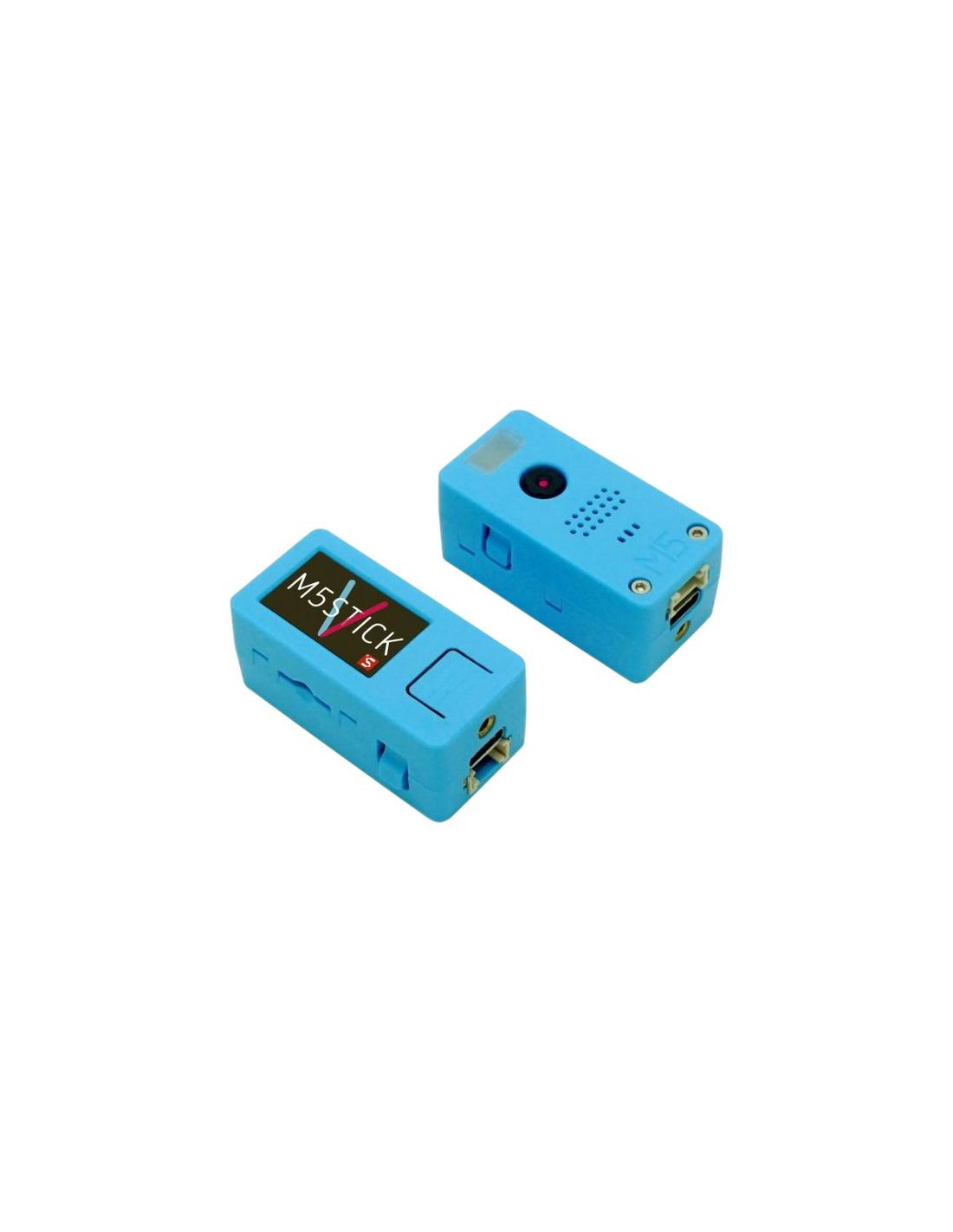

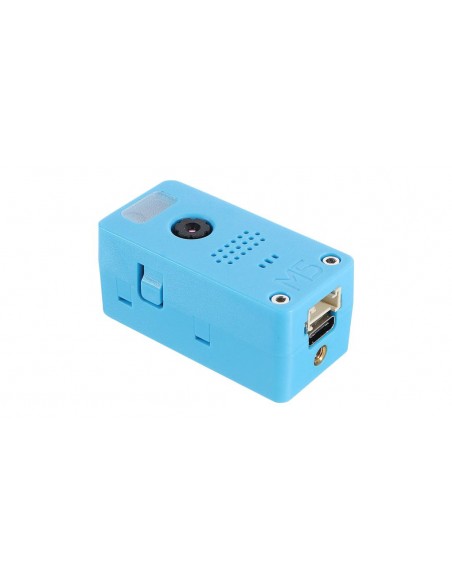

M5StickV K210 AI Camera (Without Wifi) (OV7740)
ESPM5SCAMK210
Out-of-Stock
€60.83
M5Stack recently launched the new AIoT(AI+IoT) Camera powered by Kendryte K210 -an edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and advanced neural network processor..M5StickV AI Camera possesses machine vision capabilities, equips OmniVision OV7740 image sensor, adopts OmniPixel®3-HS technology, provides optimum low light sensitivity, supports various vision identification capabilities. (e.g. Real-time acquisition of the size, type and coordinates of the detected target )It is able to perform convolutional neural network calculations at low power consumption, so M5StickV will be a good zero-threshold machine vision embedded solution. It is in support with MicroPython, which makes your code to be more concise when you use M5stick-V for programming.
Product Features
- Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
- Dual Independent Double Precision FPU
- Neural Network Processor(KPU) / 0.8Tops
- Field-Programmable IO Array (FPIOA)
- Dual hardware 512-point 16bit Complex FFT
- SPI, I2C, UART, I2S, RTC, PWM, Timer Support
- AES, SHA256 Accelerator
- Direct Memory Access Controller (DMAC)
- Micropython Support
- Firmware encryption support
- Case Material: PC + ABS

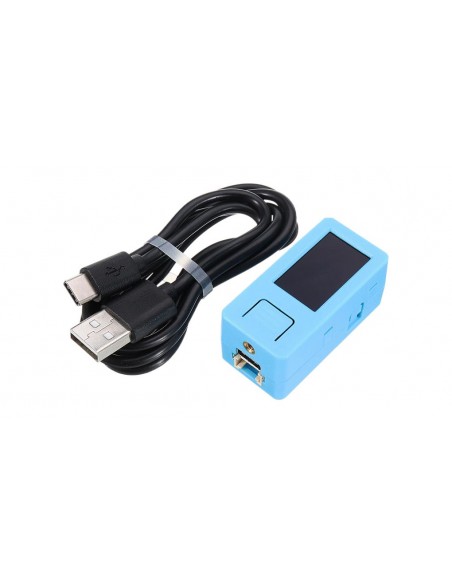

Include
- 1x M5StickV
- 1x USB Type-C(100cm)
- 1x Bracket
- 1x HEX KEY
Applications

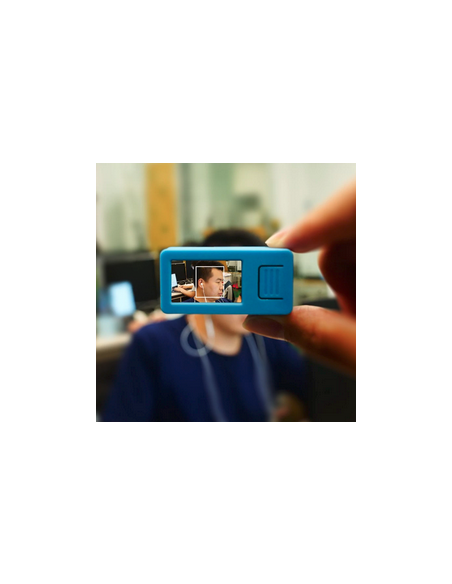

- Face recognition/detection
- Object detection/classification
- Obtaining size and coordinates of the target in real-time
- Obtaining the type of detected target in real-time
- Shape recognition
- Video/Display
- Game simulator
Specification
Resources | Parameter |
---|---|
Kendryte K210 | Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) |
SRAM | 8MiB |
Flash | 16M |
Power input | 5V @ 500mA |
KPU Parameter size of neural network | 5.5MiB - 5.9MiB |
Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
RGB LED | RGBW x 1 |
Button | Custom button x 2 |
IPS screen | 1.14 TFT, 135*240, ST7789 |
Camera | OV7740(30W pixels) |
FOV | 55deg |
PMU | AXP192 |
Battery | 200mAh |
External storage | TF-card(microSD) |
MEMS | MPU6886 |
Net weight | 23g |
Gross weight | 82g |
Product Size | 48*24*22mm |
Package Size | 144*44*43mm |
Case Material | Plastic ( PC ) |
New product
No reviews
