USB Battery Power Bank, USB Hub Shield for Raspberry Pi
€12.00
Tax included

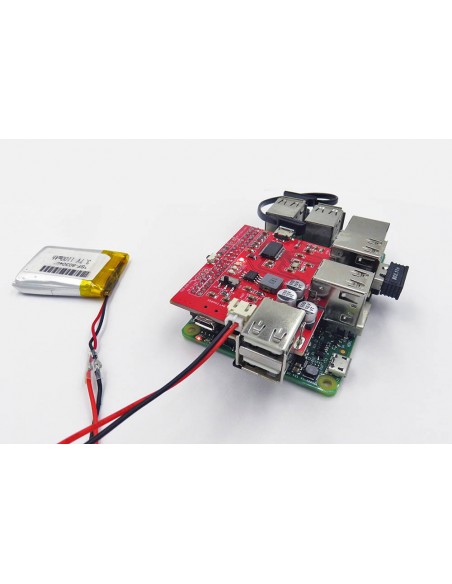

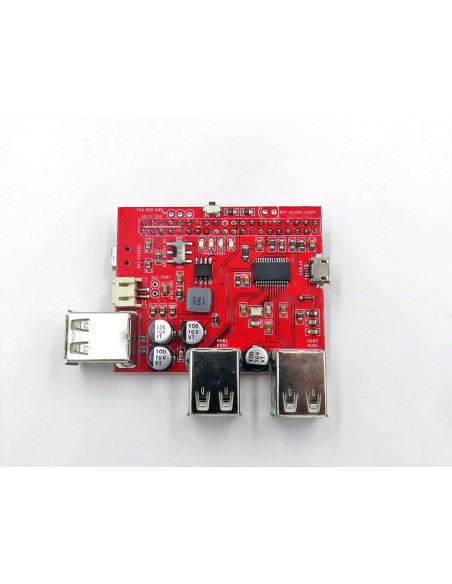

Shield for Raspberry Pi integrating a USB power bank (Li-ion battery charging up to 2A, 5V output) and a USB hub. Two USB output ports, battery level LED indicators.
Description
- On-board power bank management IC 5306, supports battery charging up to 2A, boost to 5V.
- Two USB ports available for 5V power output.
- On-board power level LEDs.
- Switch between charge input or battery to power the Raspberry Pi without needing to shut down.
- Battery connector XH2.00mm, cable included.
- Also provides power supply to the USB hub.
- Reserved flash LED, can connect up to a 1W LED.
- Tested with an 850mAh battery: powers a Raspberry Pi + mini Wi-Fi dongle for up to 2.5 hours.
- On-board USB Hub IC GL850, provides four extra USB ports for connecting devices. Windows testing speed up to 8MB/s (USB 2.0).
- Cable included to connect from HUB-in to Raspberry Pi USB. (Cable advertised to support 2A current).
- Connect only to Raspberry Pi 5V and GND pins for power; can also be used off-board.
Package includes main board, USB hub cable, and battery connection cable. Battery NOT included, please prepare separately.
PCBELEPIPWRPAC
