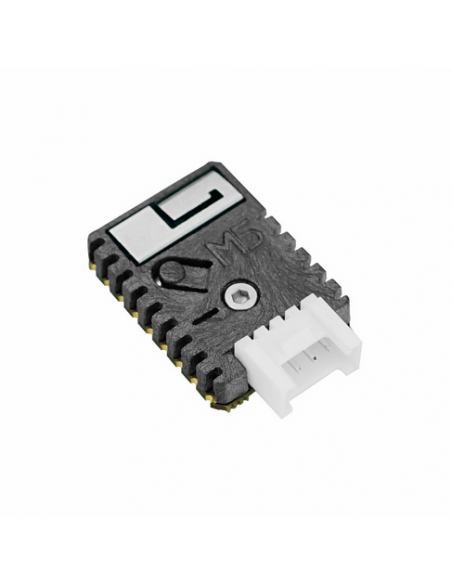

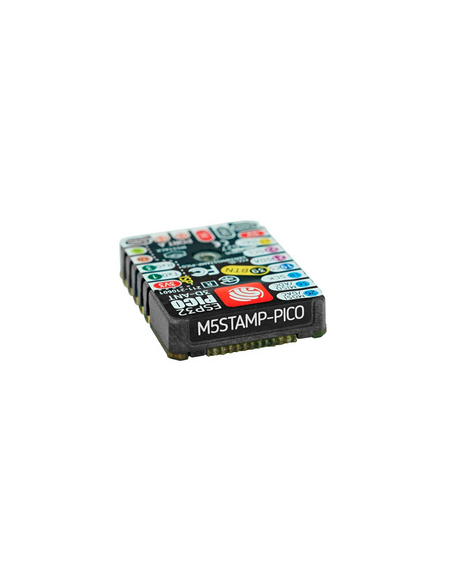

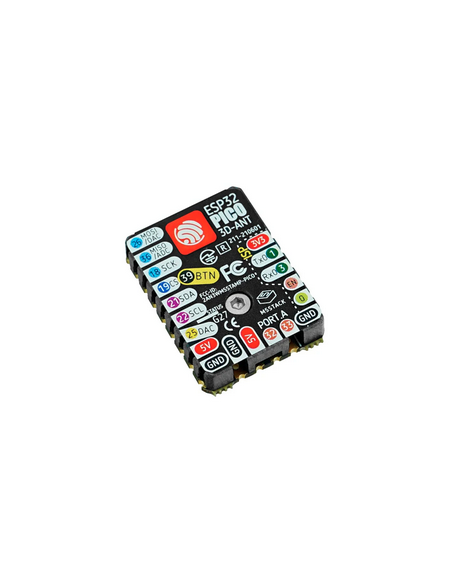

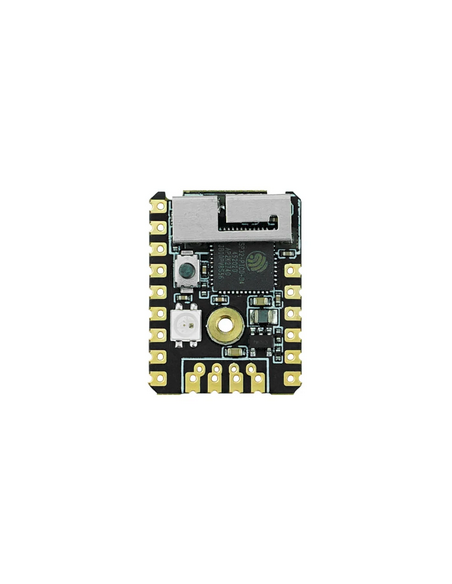

C050 ESP32-PICO-D4, Microcontroller M5Stamp Pico, M5Stack

M5STSTAMPPICO
€5.50

STAMP-PICO features an ultra-compact design with two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB as tiny and delicate as a postage stamp. low power consumption. It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.

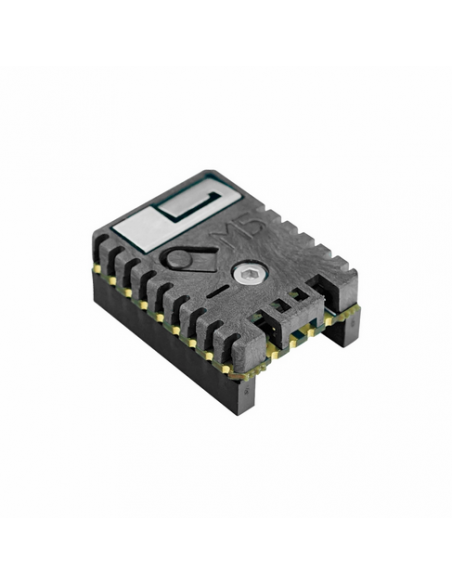

  • 1, MULTIFORM: 5 options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected.

  • 2, LOW-CODE DEVELOPMENT: STAMP-PICO supports UIFlow graphical programming platform, scripting-free, cloud push; and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.

  • 3, HIGH INTEGRATION: STAMP-PICO contains 5V->3.3V DC/DC port, GPIOx12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication.

  • 4, STRONG EXPANDABILITY: Easy access to M5Stack's hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation.

Product Features

  • Chip-set:ESP32-PICO-D4 (2.4GHz Wi-Fi dual mode)
  • Support UIFlow graphical programming
  • Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)
  • Integrated programmable RGB LEDs and buttons
  • Miniature module
  • pecification

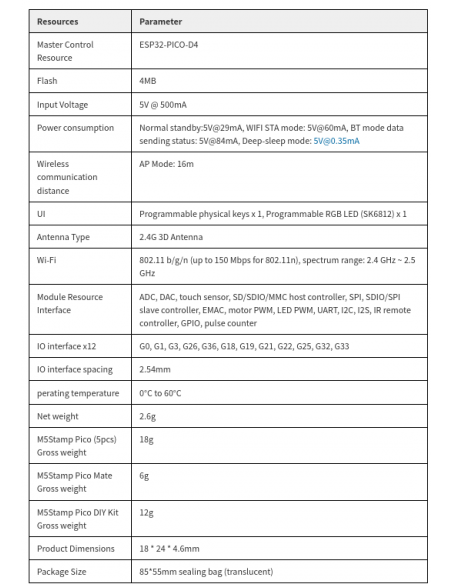

    ResourcesParameter
    Master Control Resource ESP32-PICO-D4
    Flash 4MB
    Input Voltage 5V @ 500mA
    Power consumption Normal standby:5V@29mA, WIFI STA mode: 5V@60mA, BT mode data sending status: 5V@84mA, Deep-sleep mode: 5V@0.35mA
    Wireless communication distance AP Mode: 16m
    UI Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1
    Antenna Type 2.4G 3D Antenna
    Wi-Fi 802.11 b/g/n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz
    Module Resource Interface ADC, DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter

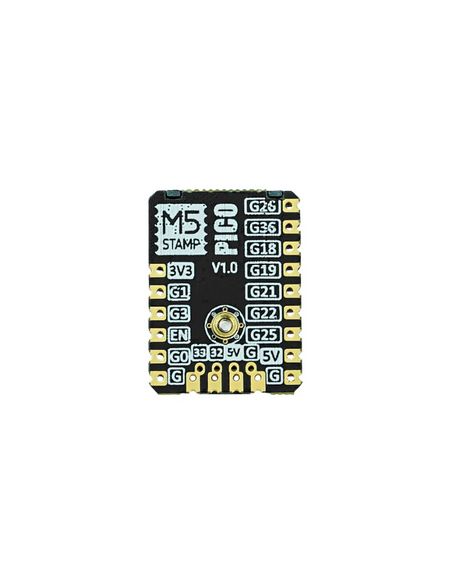

    IO interface x12 G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33
    IO interface spacing 2.54mm
    perating temperature 0°C to 60°C
    Net weight 2.6g
    M5Stamp Pico (5pcs) Gross weight 18g
    M5Stamp Pico Mate Gross weight 6g
    M5Stamp Pico DIY Kit Gross weight 12g
    Product Dimensions 18 * 24 * 4.6mm
    Package Size 85*55mm sealing bag (translucent)
