M5Stack Tough ESP32 IoT waterproof Board Kit SKU: K034

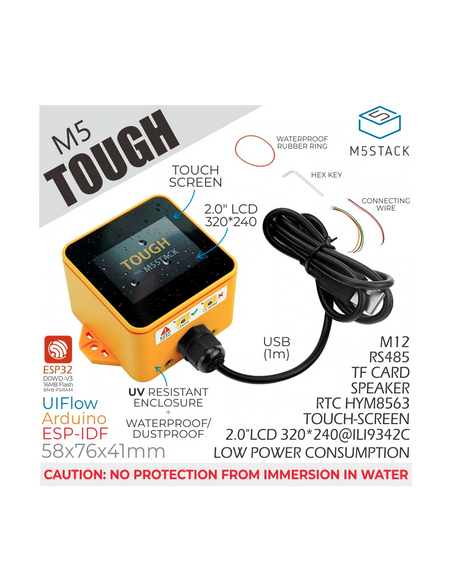

The M5Stack ** Waterproof ESP32 embedded controller TOUGH** is Industrial grade programmable embedded controller featuring Espressif ESP32 chipset with integrated Wi-Fi, It is equipped with dual-core low power Xtensa® 32-bit LX6 microprocessor with clock frequency up to 240MHz. A combination of 8M PSRAM + 16M FLASH memory , integrated 2.0-inch HD IPS display panel + high-sensitive capacitive touch screen + rich peripherals, expansion interface. M5 TOUGH has full-coverage support dustproof and waterproof`, which can ensure the stability of circuit operation even in complex industrial applications. The M5 TOUGH is ideal for industrial control, smart buildings, outdoor node data acquisition, and other applications.

  • Structural Design:
    • Water-resistant with an 'o-ring sealing' contains Waterproof M12 Connectors can complete against solid objects, dust, sand, and dirt and against the effects of immersion.
    • UV resistant enclosure design
    • A variety of installations Screw, Rolled strip, Magnetic, Adhesive Back
    • Waterproof M12 Connectors
  • High integration:
    • 2 inches LCD capacitive Multi-touch screen
    • NS4168 16bits I2S power amplifier + 1W speaker
    • TFCard slot
    • AXP192 power management chip + BM8563-RTC clock -> Low-power power solution, Wake Up with an RTC Alarm Clock
    • Delicate RF circuit delivers robust and consistent wireless communication
  • Strong expandability :

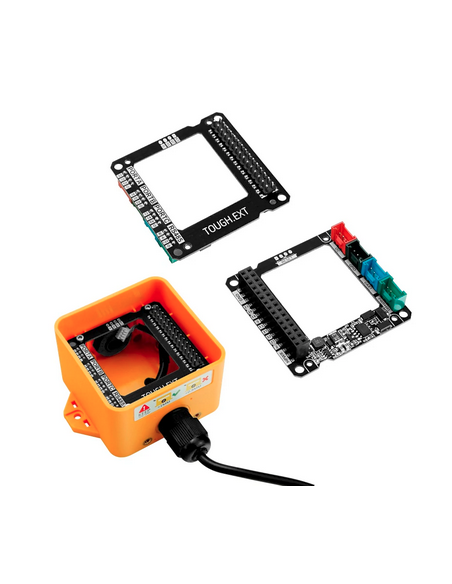

    • Equipped with programable expansion board
      • Integrated with 12v->5V flexible DC/DC converter. flexible power supply
      • RS485 conversion circuit

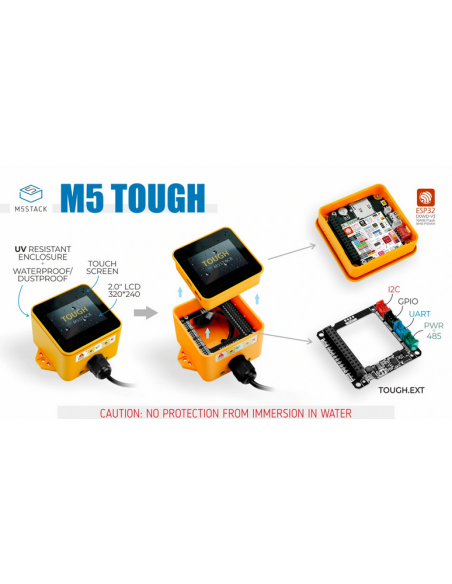

      • PortA, B, C/ 3x Grove expansion interface
    • Easy access to M5Stack's software and hardware system, plug-and-play sensor expansion
  • Low code development:
    • Support UIFlow graphical programming platform, scripting-free, cloud push
    • Fully compatible with with Arduino, ESP32-IDF, and other mainstream development platforms
    • Executing Dual-core processor on FreeRTOS to run multiple tasks for better performance.

Product Features

  • ESP32-D0WD-V3
  • 16MB Flash + 8MB PSRAM
  • Waterproof and Dustproof
  • UV resistant enclosure design protection
  • 2 inches LCD capacitive Multi-touch screen
  • Advanced low power techniques: Wake Up with an RTC Alarm Clock
  • Integrated with 12v->5V flexible DC/DC converter. Flexible power supply
  • RS485/I2C/GPIO/UART interface
  • Development platform:
    • Arduino/UIFlow/ESP-IDF


  • 1x M5Stack TOUGH
  • 1x Type-C USB(1m)
  • 1x 2.5mm hexagon wrench
  • 1x 1.25-2P single head terminal line
  • 1x 1.25-4P single head terminal line
  • 1x Waterproof O-ring
