DC fk 110x70x26mm Solénoïde Electro (Solénoïde Push-Pull 6V, Adafruit)
MOTSOLADA
Out-of-Stock
€8.75

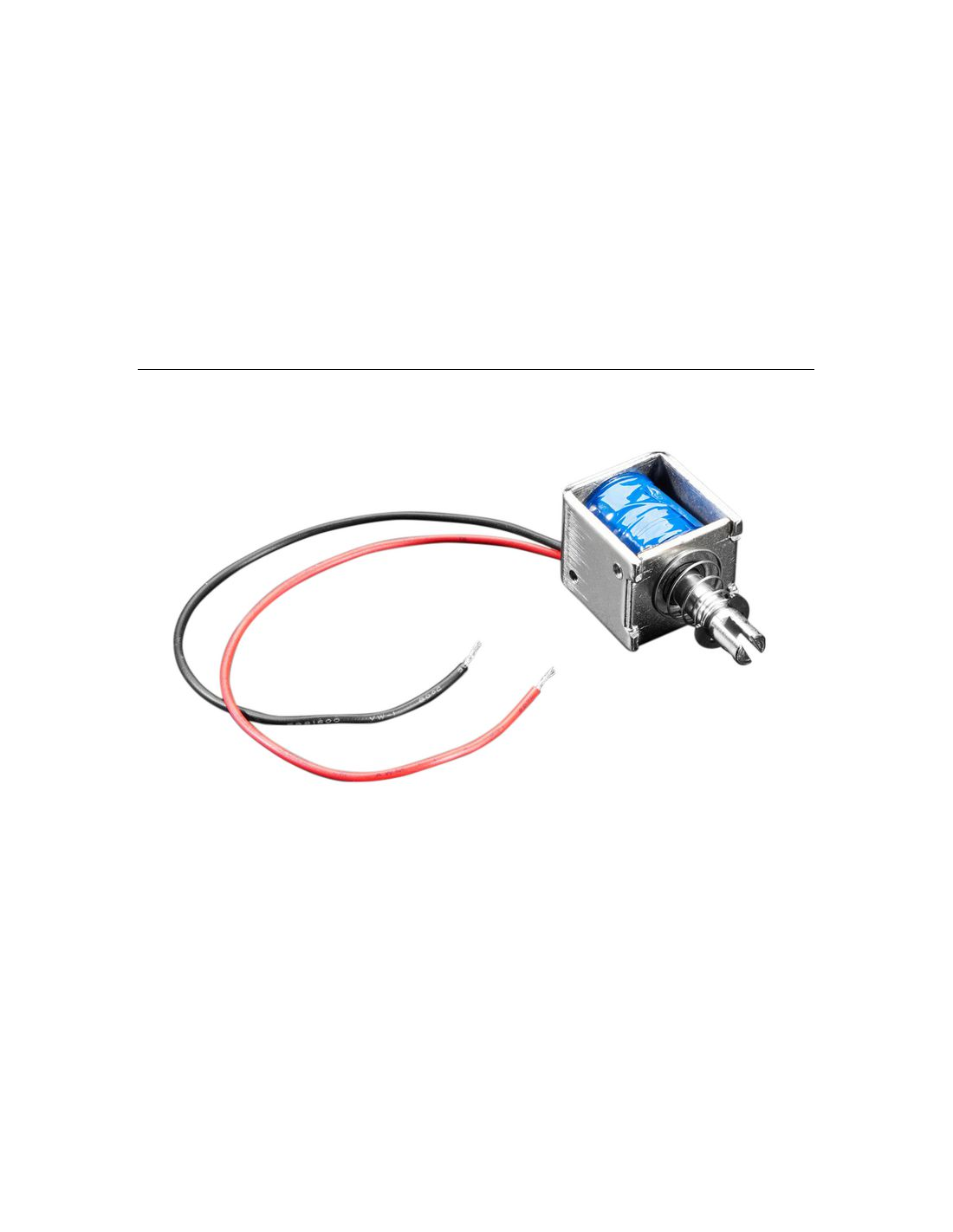

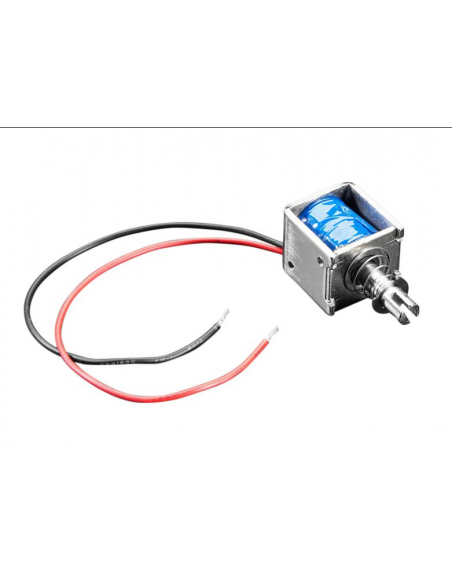

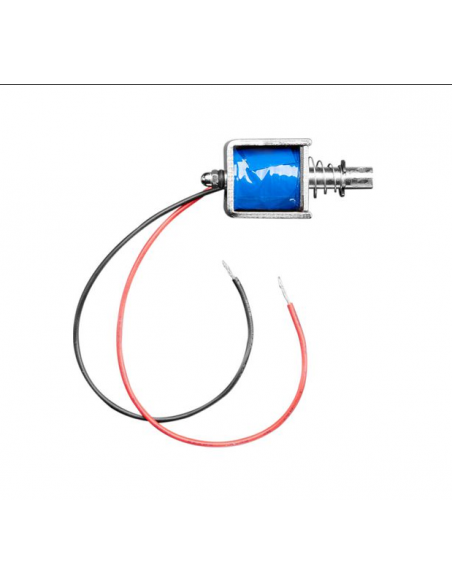

Pull - Push Type Open Frame Solenoid Electromagnet DC 5V-6V
Specs:
- 6VDC operation (please note lower voltage results in weaker/slower operation)
- Current: 6V 1A or 5V 0.8A
- Push or pull type with 10mm throw

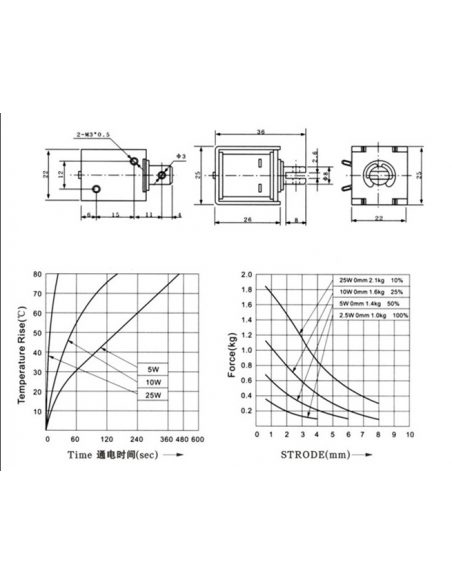

- Armature tube dimensions:
- Length: 55.4mm
- Diameter: 7mm
- DC coil resistance: 6 ohms
- Wire length: approx 20cm
Product Weight: 68.0g / 2.4oz
