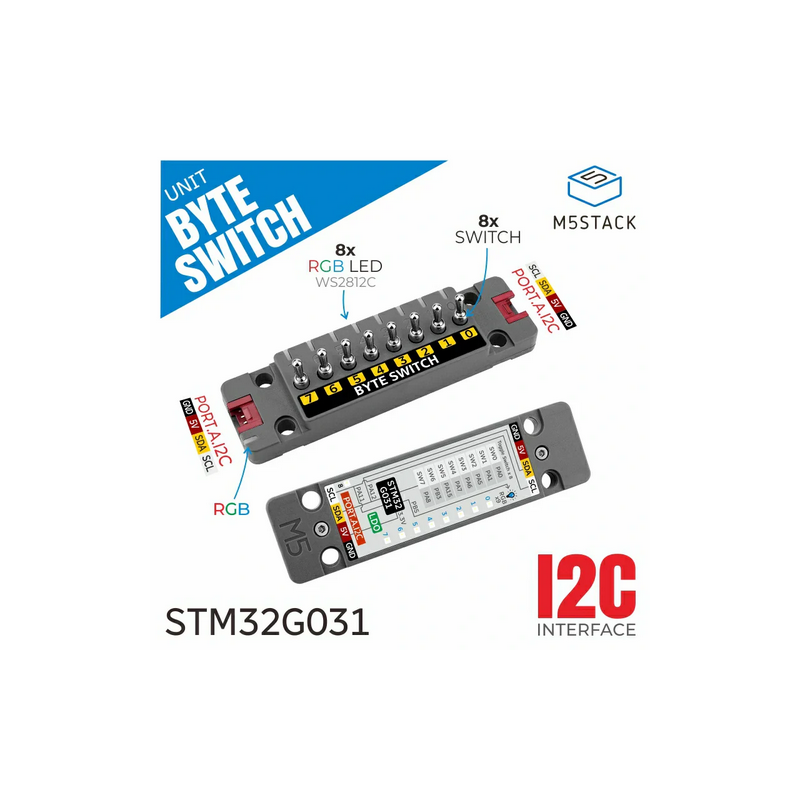

Byte Switch Unit with 8x Switches (STM32G031)
27,50 €
TTC
Unit ByteSwitch is an 8-channel toggle switch input unit, equipped with 8 toggle switches and 9 WS2812C RGB LEDs. It uses the STM32 as the main controller and supports I2C communication. The board includes two Port A I2C interfaces and supports cascading multiple Unit ByteSwitch units to meet the needs of complex systems. It can detect toggle switch inputs and provide dynamic light status feedback, suitable for applications such as smart home control, gaming entertainment devices, educational development platforms, industrial status display, and interactive exhibitions.
-
Features
- 8 toggle switch inputs
- 9 WS2812C RGB LEDs
- STM32 main controller
- I2C communication interface
- Development platform:
- UIFlow 1.0
- UIFlow 2.0
- Arduino IDE
Included
- 1x Unit ByteSwitch
- 1x HY2.0-4P cable (20cm)
- 1x tags
Applications
- Smart home control panels
- Gaming or entertainment device controllers
- Education and laboratory development platforms
- Status control and feedback devices
- Portable device debugging tools
- Interactive exhibitions or scene controls
- User interface for small instruments
Specifications
Specification Parameter MCU STM32G031G8U6, 32-bit ARM Cortex-M0+ core, 64 MHz Toggle Switch 8 independent toggle switches RGB LEDs WS2812C-2020 (9 LEDs) Communication Interface I2C communication @ 0x46 Grove Interface 2 (I2C bus cascading expansion) Standby Power Consumption DC 5V @ 9.03mA Operating Temperature 0-40°C Product Dimensions 88.0 * 24 * 19.6mm Package Dimensions 169.0 * 119.0 * 21.0mm Product Weight 22.5g Package Weight 29.1g LEARN AND DOCUMENTS
