433Mhz RF link kit

4,70 €
TTC

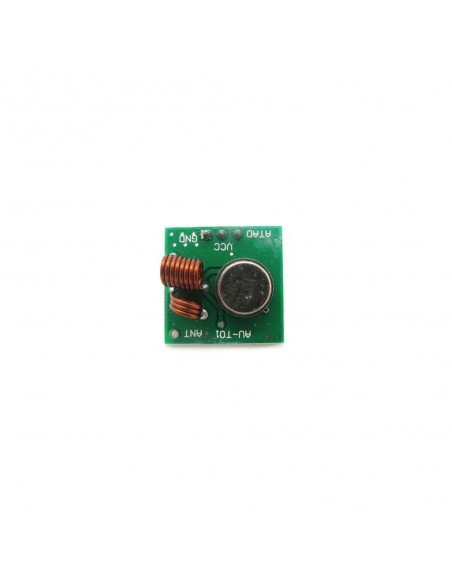

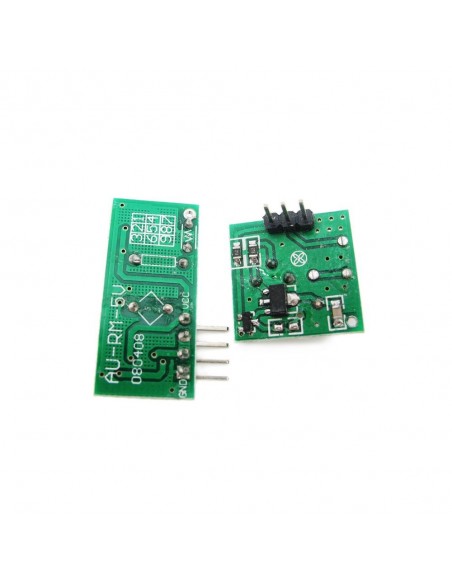

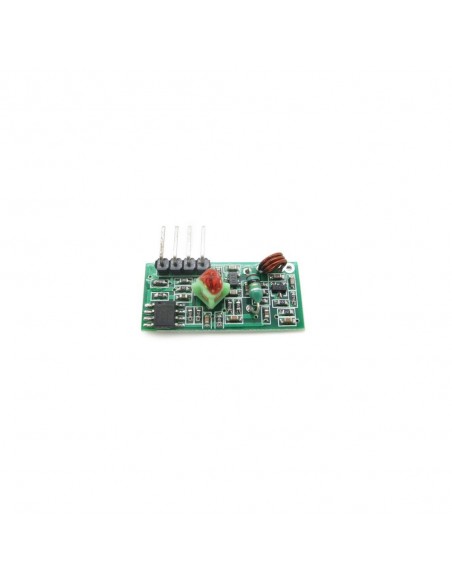

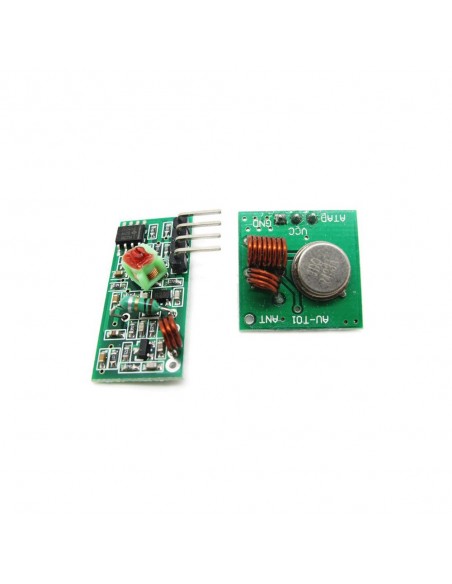

The 433M RF link kit is consisted of transmitter and receiver, popular used for remote control. 433MHz frequency and ASK modulation.

Quantité

Overview

The 433MHz RF link kit is consisted of transmitter and receiver, popular used for remote control.

Features

  • Frequency: 433Mhz
  • Modulation: ASK
  • Receiver Data Output: High - 1/2 Vcc, Low - 0.7v
  • Transmitor Input Voltage: 3-12V (high voltage = more transmitting power)

Usage

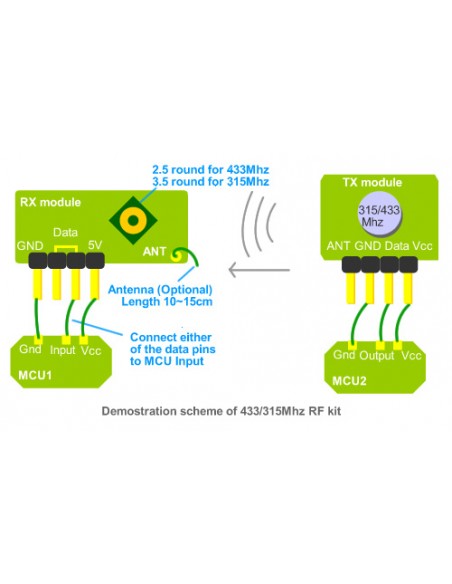

The popular link is like this: MCU -> Encoder -> Transmitter ------ Receiver -> Decoder -> MCU

PT2272(Encoder) and PT2262(Decoder) are optional, their existence is to

1) avoid confusing when multiple RF links in range

2) isolate disturbance.

You can integrate the encoding and decoding work to the MCUs on both side. Whenever there is no 433Mhz devices around, you may use it as direct cable connection.
