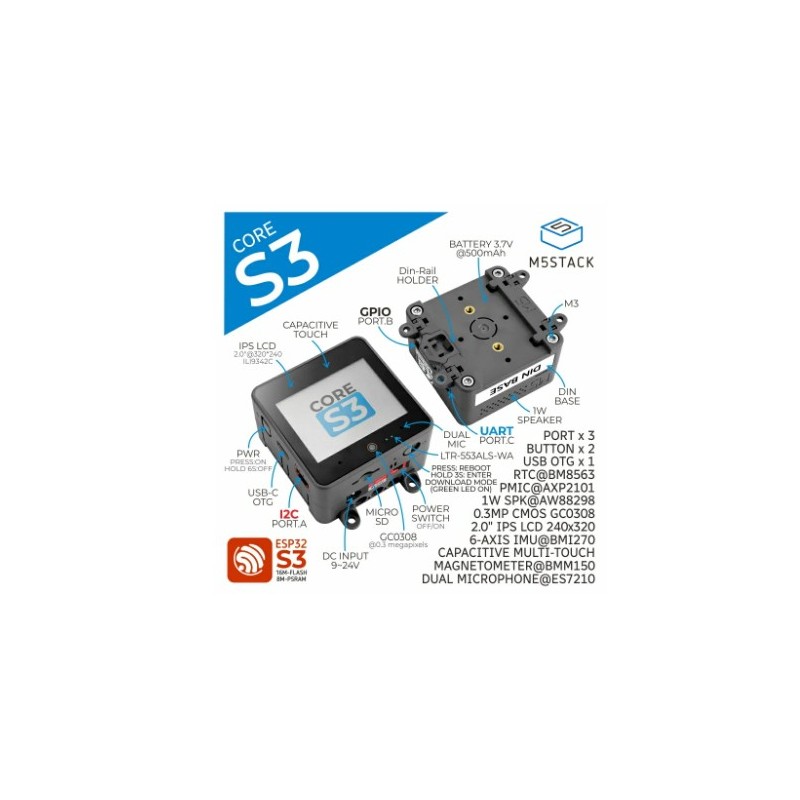

M5Stack CoreS3 ESP32S3 IoT Development Kit SKU: K128
76,00 €
TTC
CoreS3-SE is a lightweight version of the third-generation CoreS3 host in the M5Stack development kit series. Its main controller adopts the ESP32-S3 solution, with a dual-core Xtensa LX7 processor, running at 240 MHz, featuring built-in (2.4G) Wi-Fi, onboard 16MB Flash and 8MB PSRAM. Programs can be downloaded via the USB Type-C interface, supporting OTG and CDC functionality for convenient connection of USB devices and firmware flashing. The front is equipped with a 2.0-inch capacitive touch IPS screen with a high-strength glass panel.
The power supply section uses an AXP2101 power management chip along with 4-way power flow control circuits, with an overall low-power design.
- Based on ESP32-S3 development, supports Wi-Fi @16MB Flash, 8MB PSRAM
- Speaker, dual microphones
- Capacitive touch screen
- microSD card slot
- High-strength glass panel
- Supports OTG and CDC functionality
- Uses AXP2101 power management, with a low power consumption design
- Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
Includes
- 1 × CoreS3
- 1 × DinBase
- 1 × Hex Key L-Shape 2.5 mm (For M3 Screw)
- 4 × Screw Buckle
- 1 × Rail-mount Base Buckle
MCBM5STKITC2S3K128
