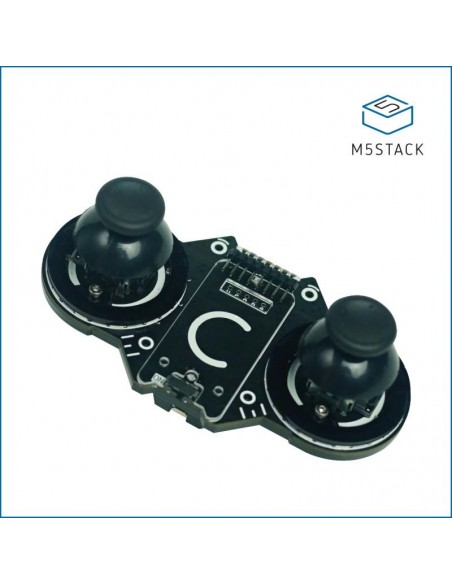

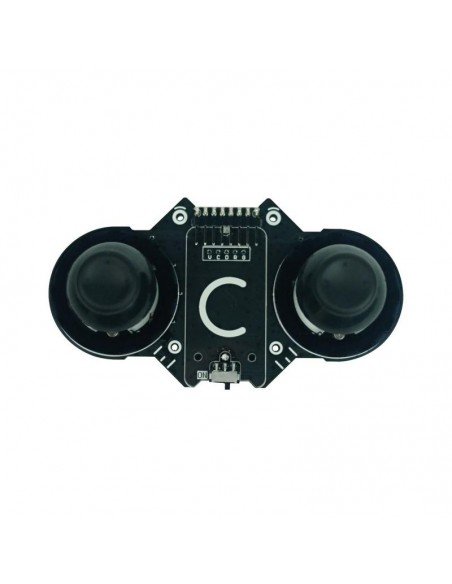

M5STACK JoyC (W/O M5StickC) Omni-directional Controller
18,50 €
TTC

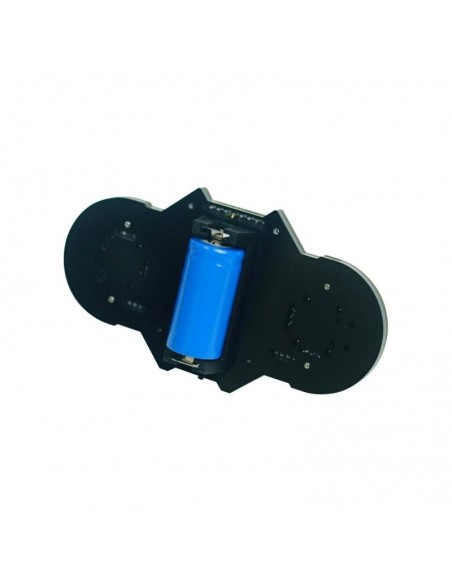

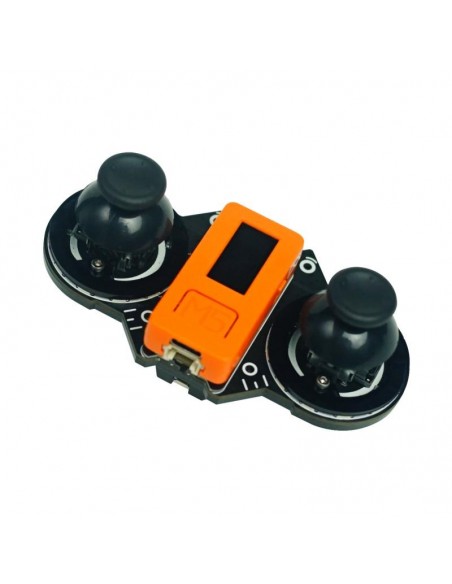

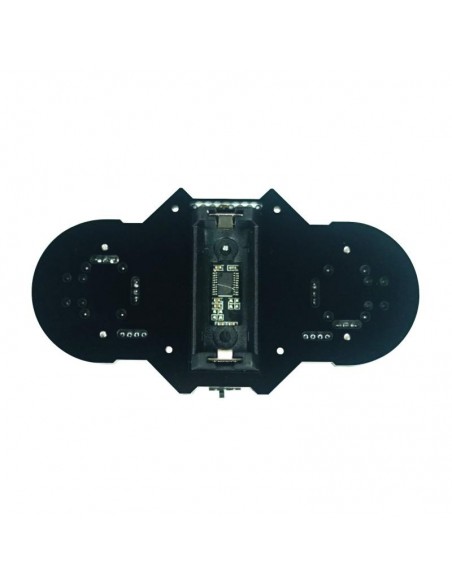

JoyC is a rocker module designed for the M5StickC.It supports two-hand operation. Embedded STM32F030F4 main control chip, using I2C communication protocol and host M5StickC for data transmission. The range of the joystick is 0~200, there are 12 RGB LEDs under the left and right joysticks, and the bottom of the joystick is equipped with a 16340 battery base for continuous battery life.
Product Features

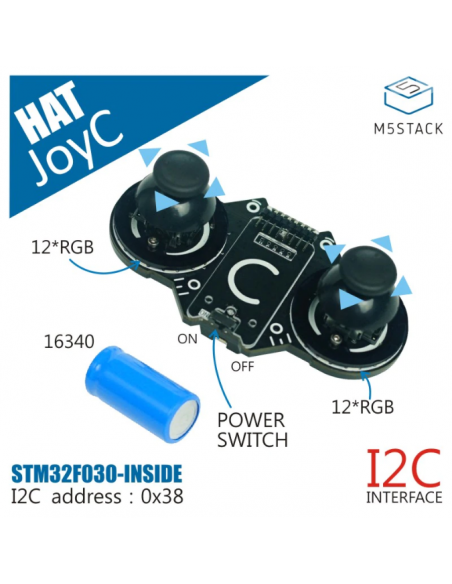

- STM32F030F4 inside
- communication protocol: I2C (address: 0x38)
- support omni-directional movement/button press
Include
- 1x JoyC
- 1x 16340 700mAh Battery
Applications
- Game Handle
- Wireless Joystick Device
Specification
| Resources | Parameter |
|---|---|
| Communication protocol | I2C：0x38 |
| Net weight | 81g |
| Gross weight | 117g |
| Product Size | 200*55*50mm |
| Package Size | 119*89*65mm |
MCBM5STAJOYC
