32x32 128X128MM RGB LED Matrix Panel P4 high resolutions
LEDJANMAT3232
Rupture de stock
40,00 €

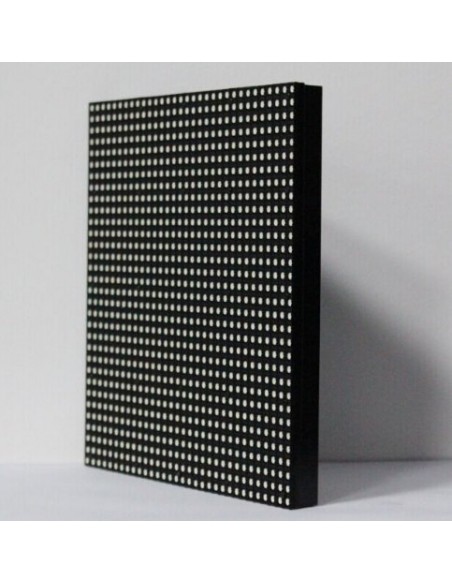

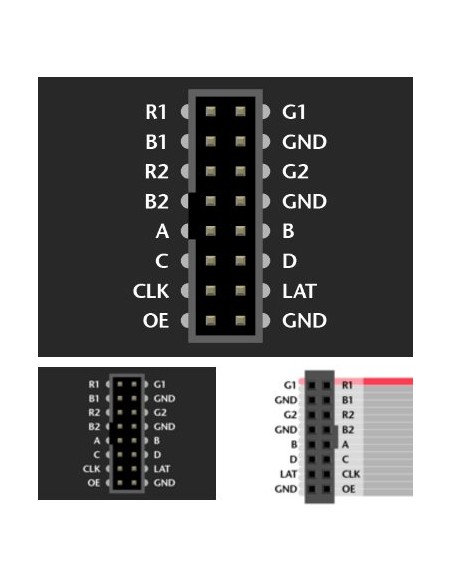

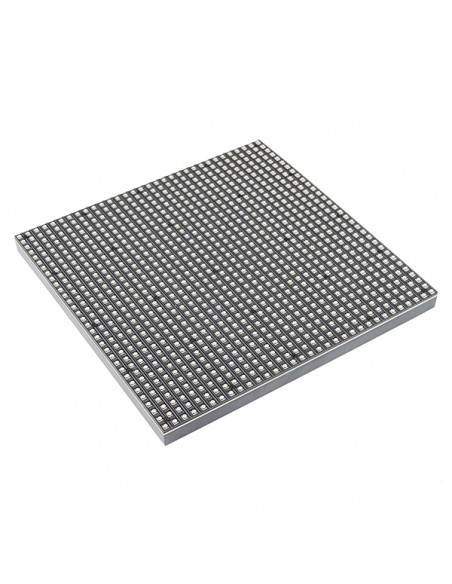

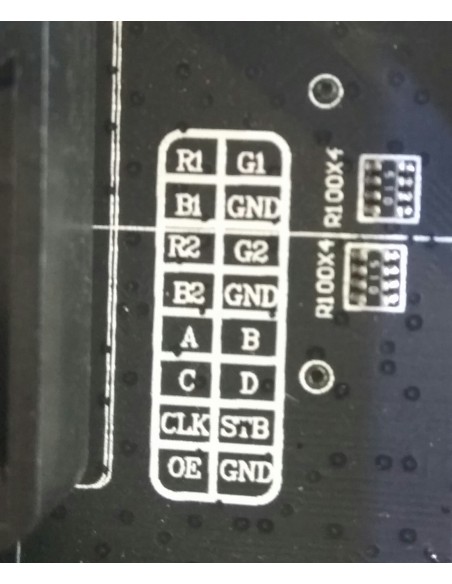

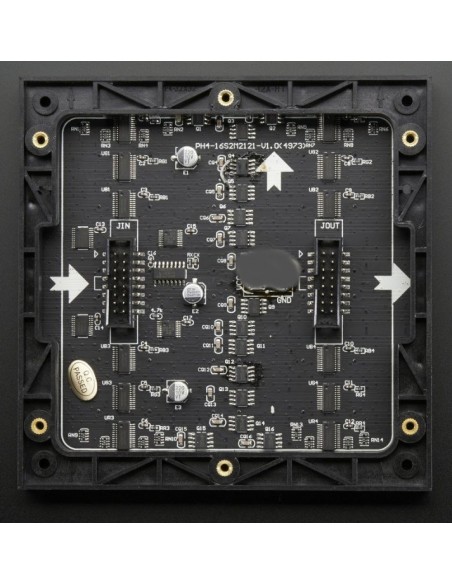

This 32 x 32 square RGB LED matrix panel could bring the most luminous city of the world to your home or shop. This panel has 1024 bright RGB LEDs 32x32. On the back there is a PCB with a set of dual IDC connectors (one input, one output: in theory you can chain these together) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.
-
- Dimensions: 130mm x 130mm x 14mm
- Panel weight with IDC cables and power cable: 357.51g
- 5V regulated power input, 2A max (all LEDs on)
- 5V data logic level input
- 2000 mcd LEDs on 4mm pitch
- 1/16 scan rate
- Indoor display, 150 degree visibility
Nouveau produit
No reviews
