GPS Lora SD Shield for Raspberry Pi 3 B+, R2 (LORA Module not include)

Reserved Lora RF Transceiver (blank, need to buy alone):

• Please notice lora module is not soldered.
• Support “low cost lora gateway” simple run ./lora_gateway, frequency is top important.
• Better attached antenna, a high performance antenna is critical for signal.
• Support our type loraduino board, SX1278/76. Also use low cost lora gateway folder aruduino -> ping-pong sketch, see demo gif in wiki page.
• CE chip select pin can be chose by CE0, CE1 or gpio25 by jumper. For dragino code, please close jumper GPIO25.
• Lora DIO0 connects to GPIO4, attached with on board LED.
• Lora reset pin GPIO17
• For quick demo code please refer to here.

MicroSD:

• Support micro SD card, CE pin also selectable by CE0 or CE1

Other Features:

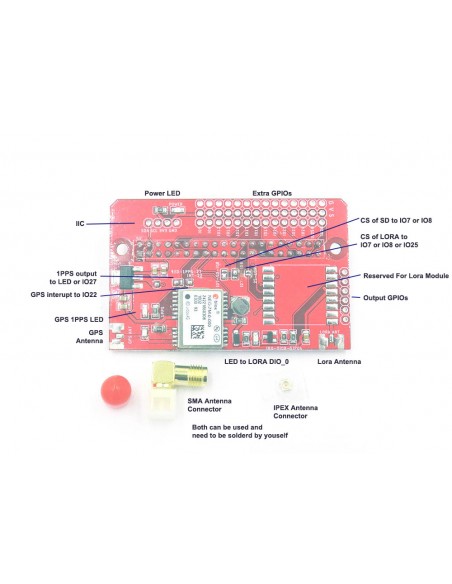

• All the breakout pins for raspberry pi
• Break out IIC pins
• On board power led

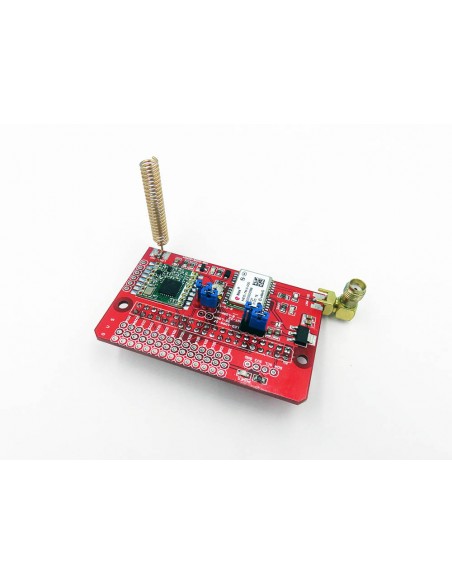

Antenna:

• Universal GPS and Lora antenna connection.
• Support IPEX or SMA antenna, can also straight soldering pin/wire antenna.
• Antenna soldering is for your inspriation only! You can attach antenna anyway you like by soldering.

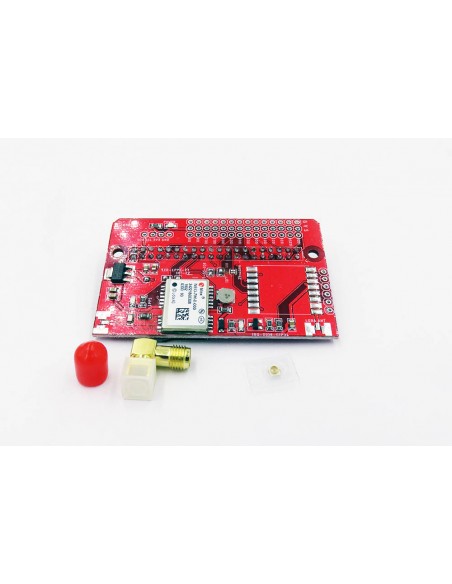

Packaging:

• Not include Lora module, please buy from here!  (module included lora antenna)
• Not include GPS antenna, buy large one from here, or small one from here.
• Include all the rest assembled board, except lora module!
• Include one 90-dgree SMA connector jack, one IPEX connetor jack.

Documentation please see on this page.

Update Logs:

• Latest and should be last version R2.1.
  • On board jumper change to SMD soldering jumper. To ease the soldering for Lora module.
  • Image not yet updated for this.
